CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

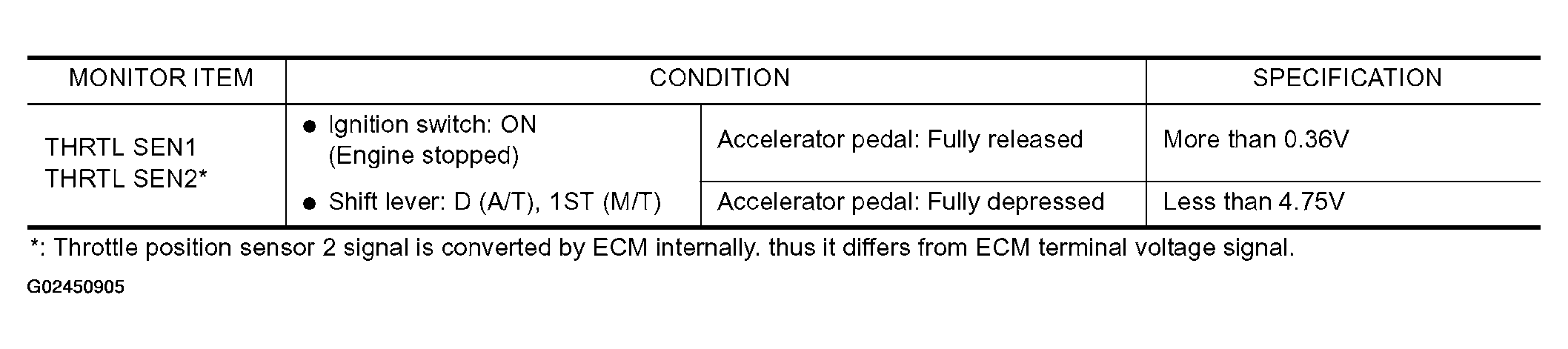

Fig 1: CONSULT-II Data Monitor Mode Reference Value Chart - Throttle Position Sensors

Courtesy of NISSAN MOTOR CO., U.S.A.
