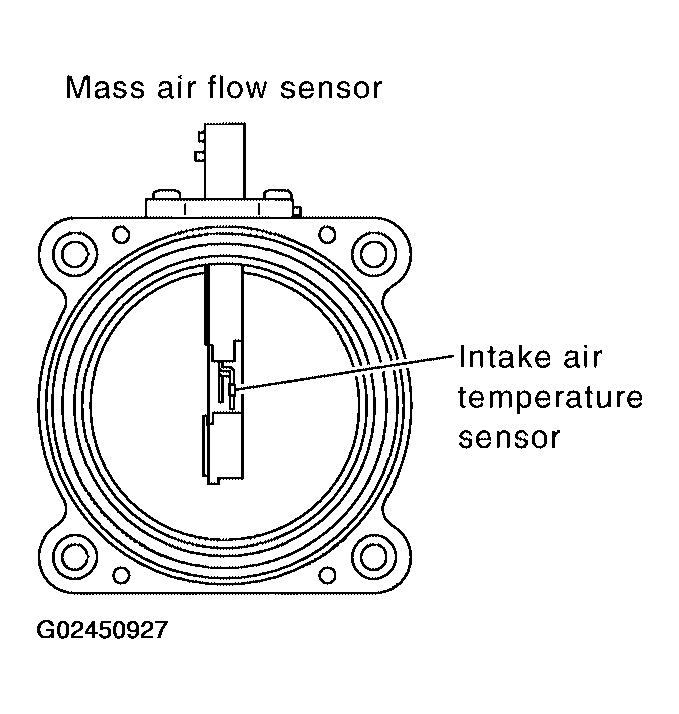

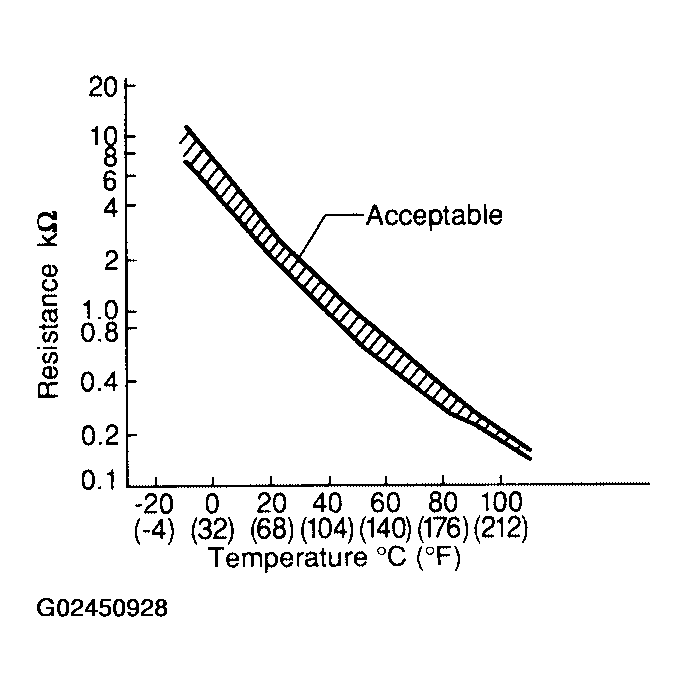

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.IAT SENSOR TERMPERATURE VERSUS RESISTANCE SPECIFICATIONS
| Intake air temperature °C (°F) |
Resistance kΩ |
| 25 (77) |
1.96 - 2.06 |
