Control Valve Assembly: Assembly

Fig 1: Installing Upper, Inter & Lower Body

Courtesy of NISSAN MOTOR CO., U.S.A.

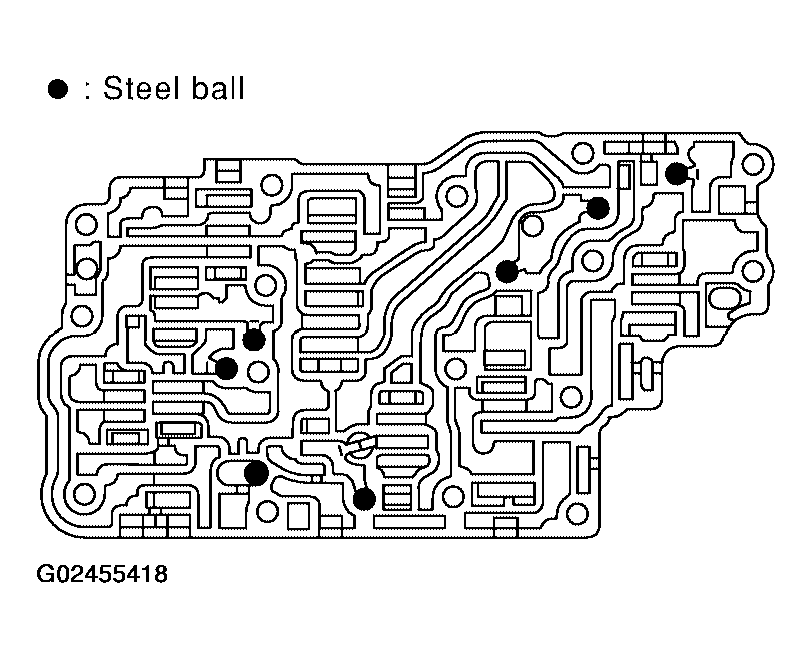

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

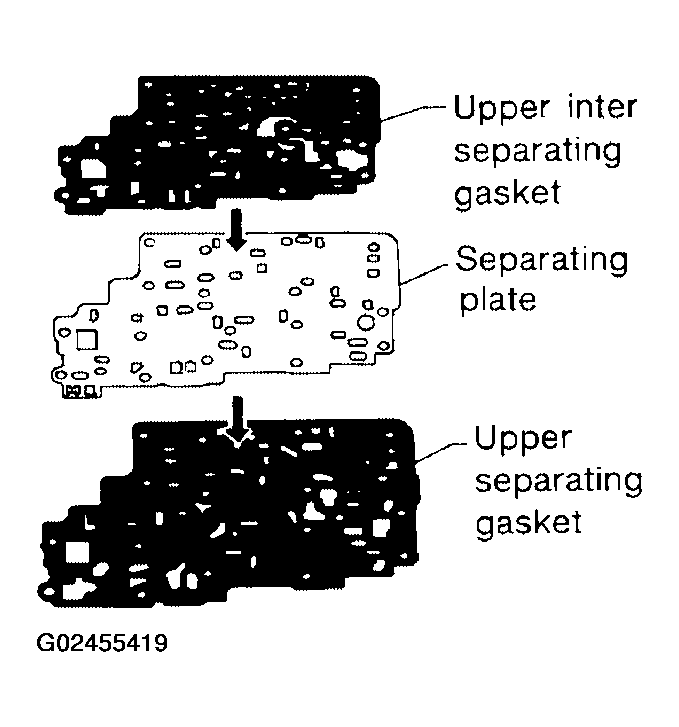

2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
   Fig 2: Installing Upper Separating Gasket

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Always use new gaskets.

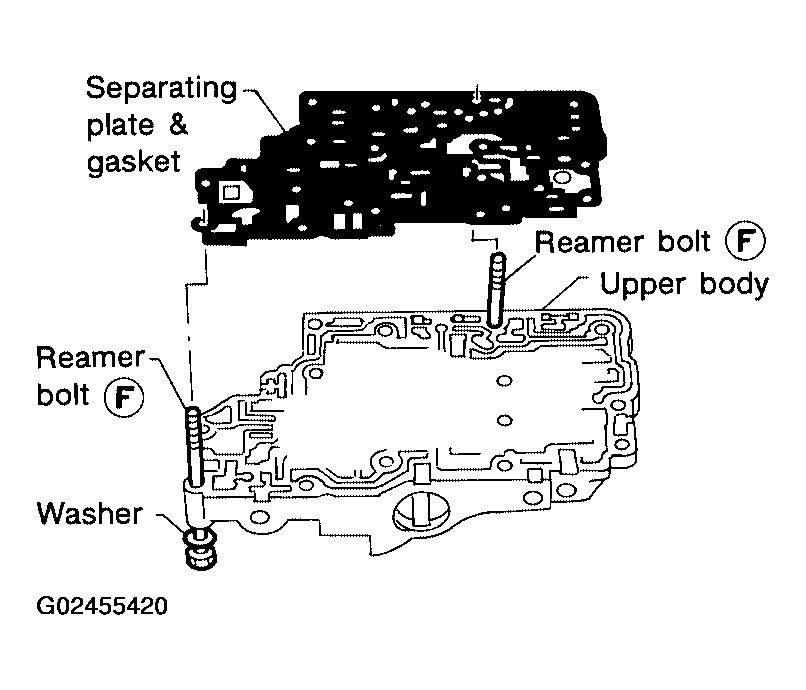

3. Install reamer bolts F  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.
   Fig 3: Installing Reamer Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

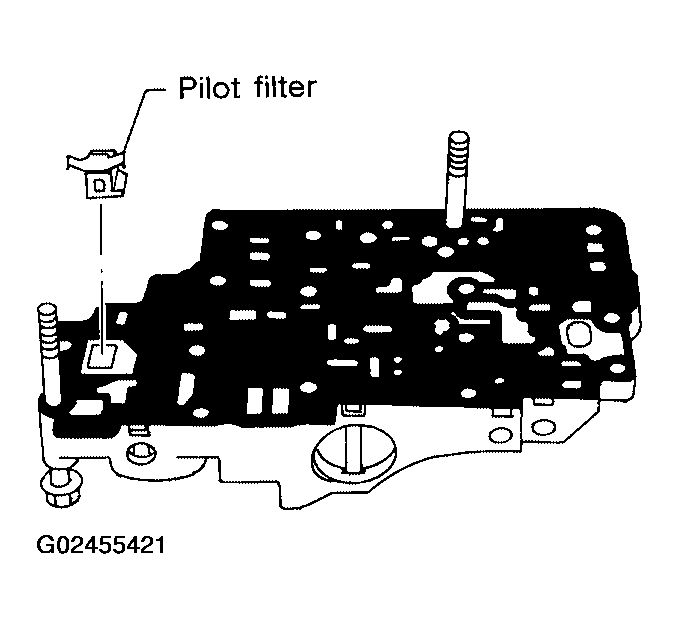

4. Install pilot filter.
   Fig 4: Installing Pilot Filter

   Courtesy of NISSAN MOTOR CO., U.S.A.

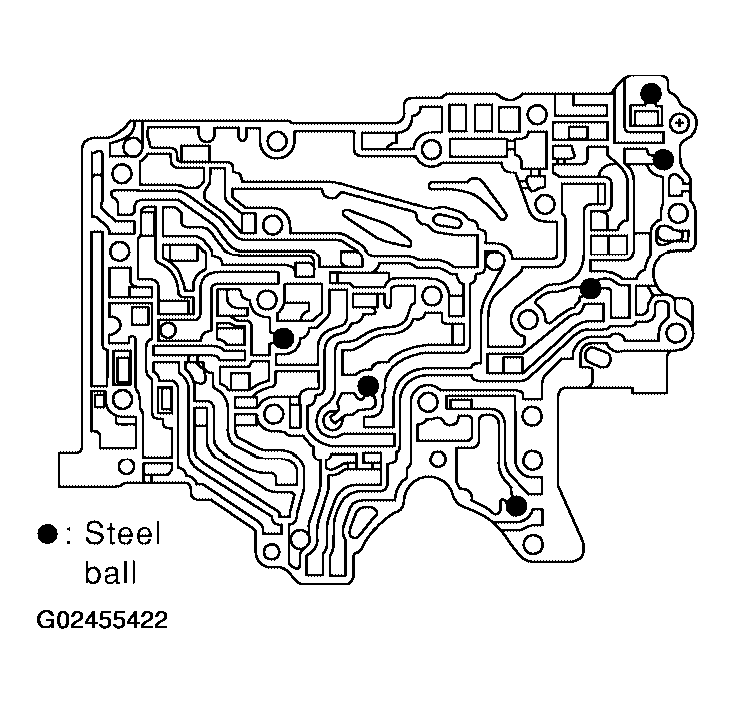

5. Place inter body as shown in the illustration. Install steel balls in their proper positions.
   Fig 5: Installing Steel Balls

   Courtesy of NISSAN MOTOR CO., U.S.A.

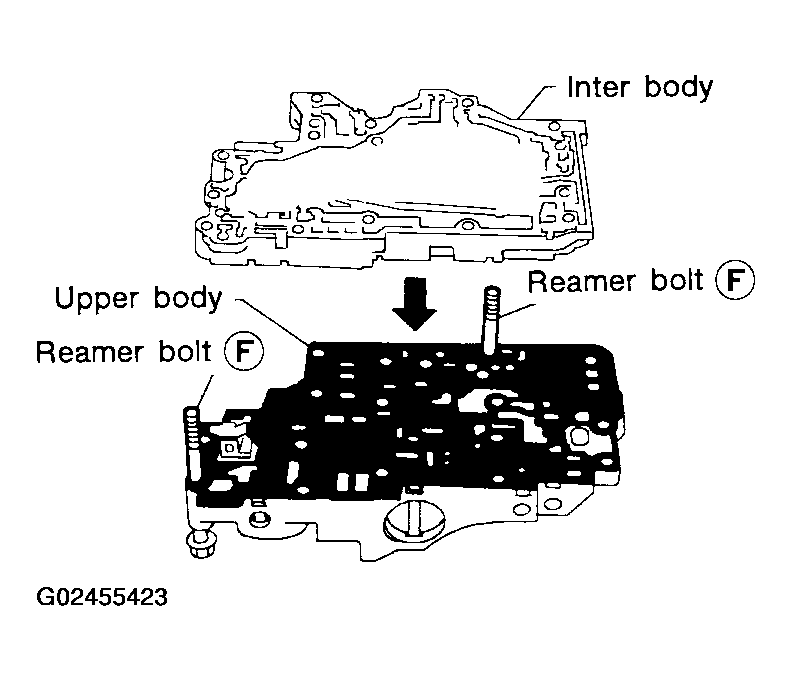

6. Install inter body on upper body using reamer bolts F  as guides.
   Fig 6: Installing Inter Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Be careful not to dislocate or drop steel balls.

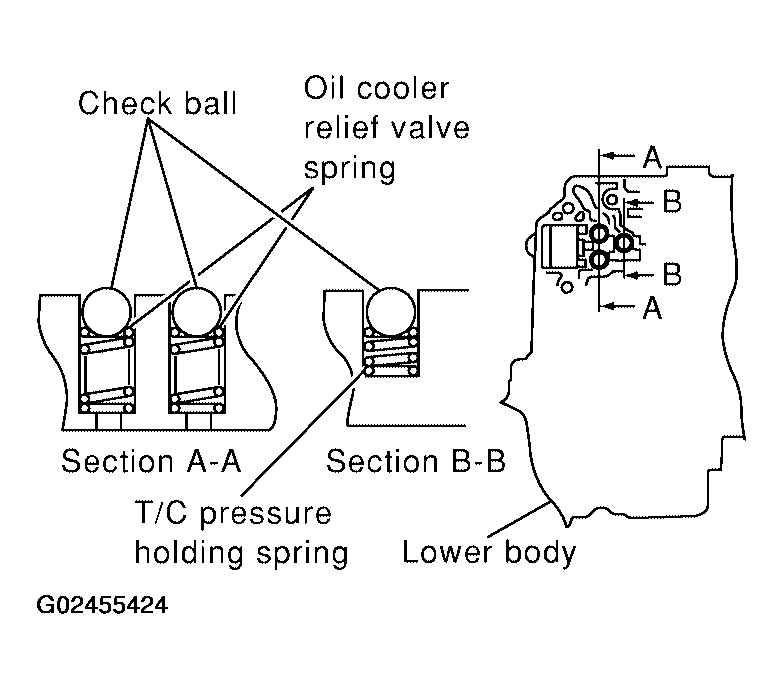

7. Install steel balls, oil cooler relief valve springs and T/C pressure holding spring in their proper positions in lower body.
   Fig 7: Installing Steel Balls

   Courtesy of NISSAN MOTOR CO., U.S.A.

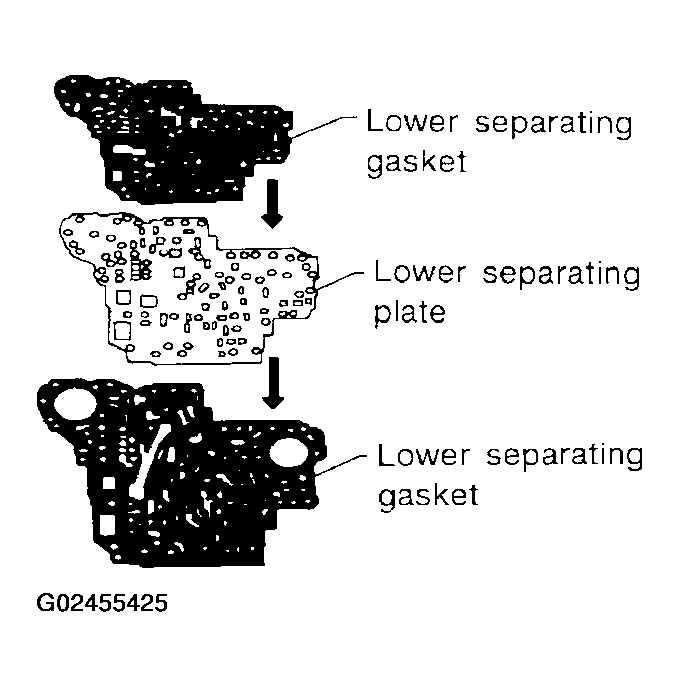

8. Install lower separating gasket, inter separating gasket and lower separating plate in order shown in the illustration.
   Fig 8: Installing Lower Separating Gasket

   Courtesy of NISSAN MOTOR CO., U.S.A.

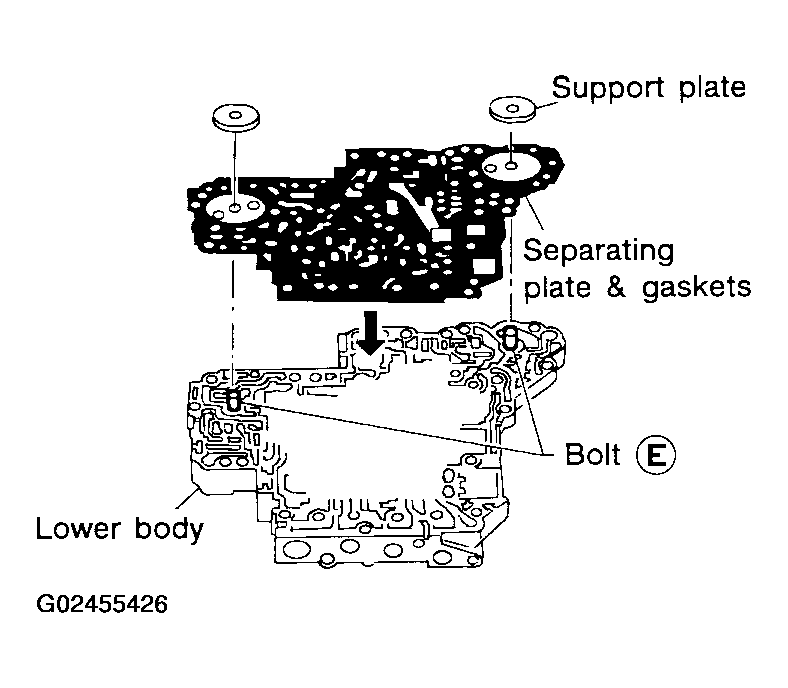

9. Install bolts E  from bottom of lower body. Using bolts E  as guides, install separating plate and gaskets as a set.
   Fig 9: Installing Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. Install support plates on lower body.

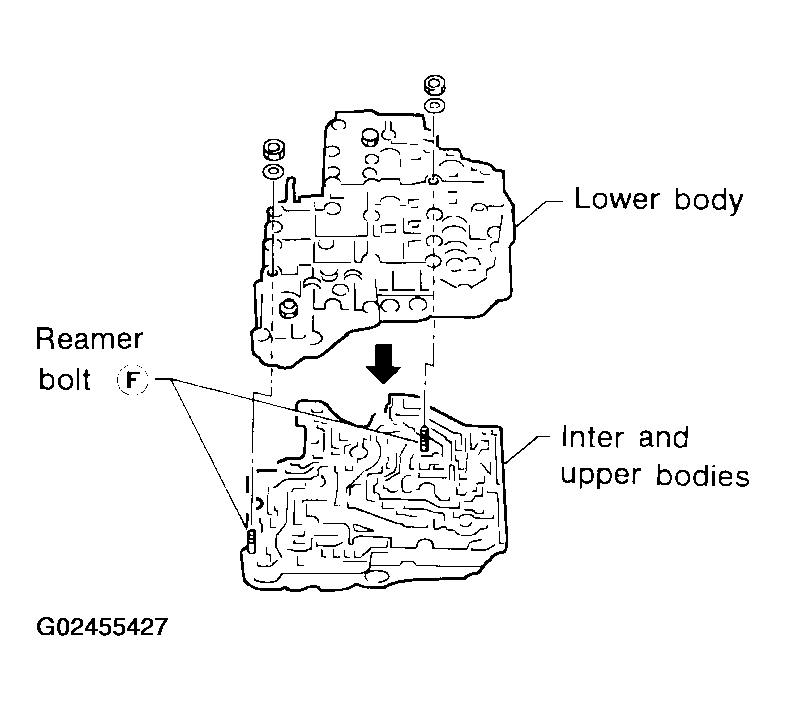

11. Install lower body on inter body using reamer bolts F  as guides and tighten reamer bolts F  slightly.

Fig 10: Installing Support Plates

Courtesy of NISSAN MOTOR CO., U.S.A.

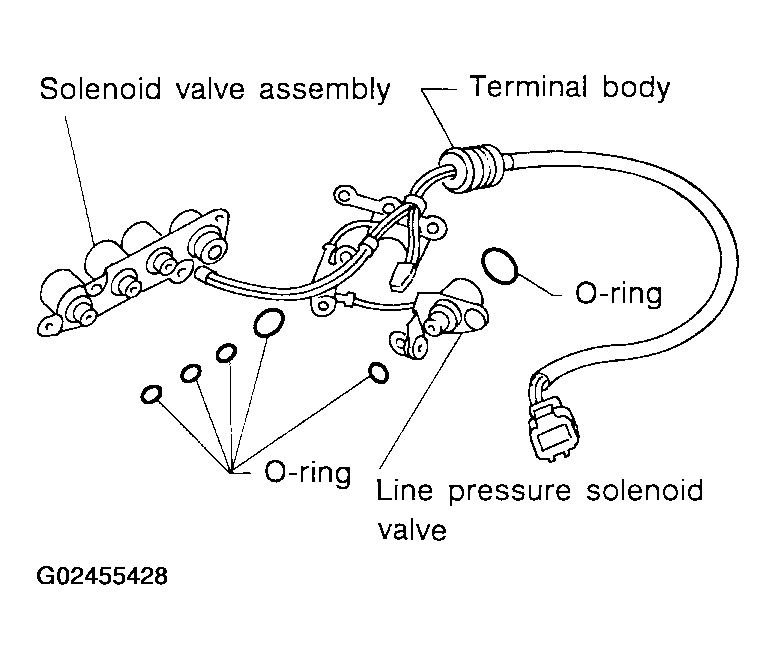

• Apply ATF to O-rings.

Fig 11: Tightening Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

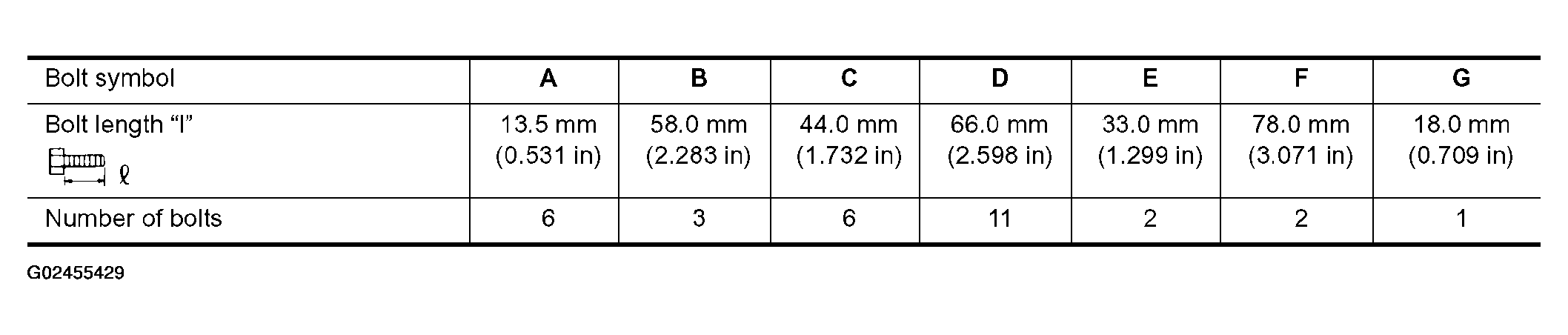

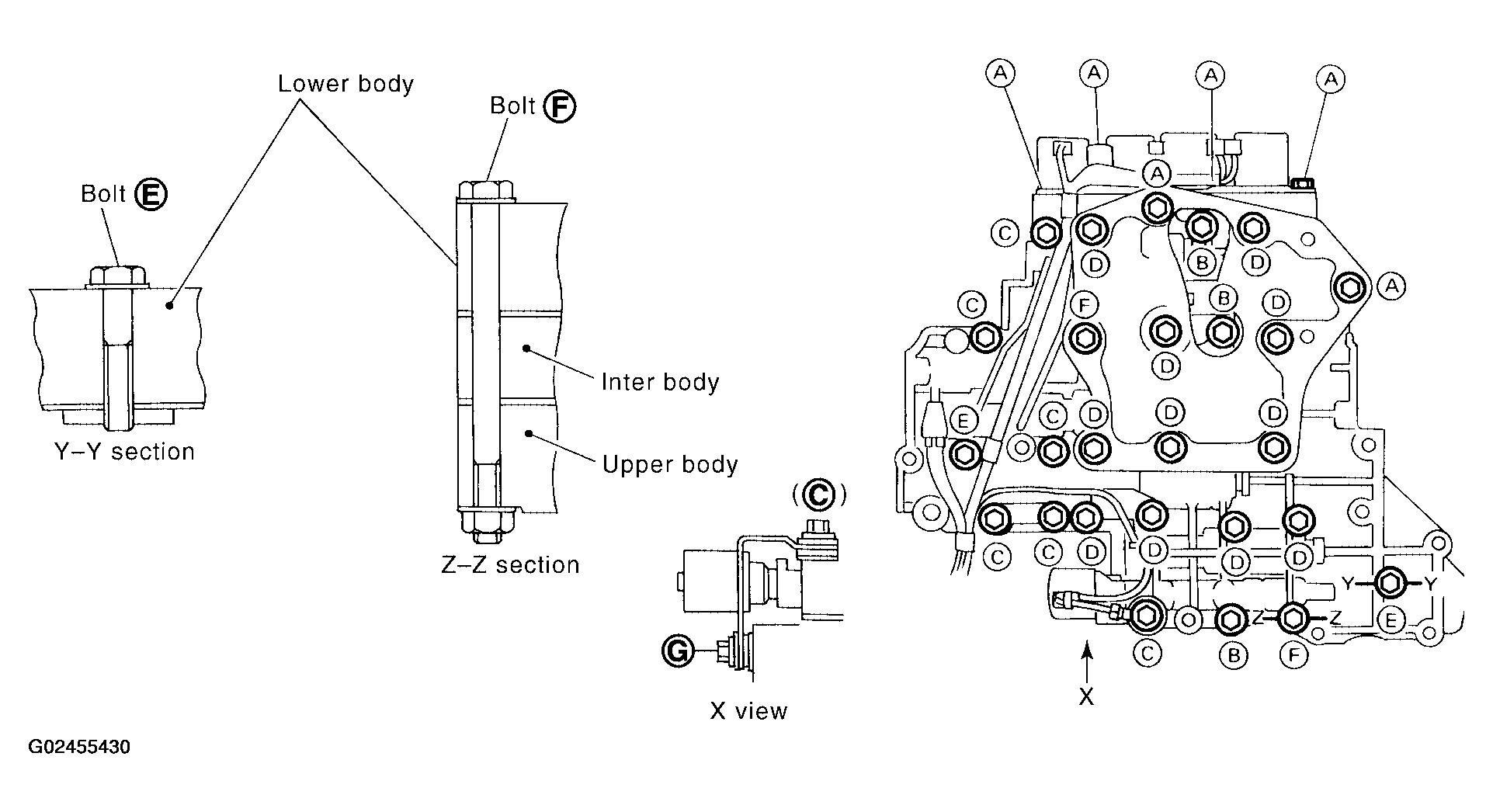

Bolt length, number and location:

Fig 12: Bolt Length & Number Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Location Bolt

Courtesy of NISSAN MOTOR CO., U.S.A.

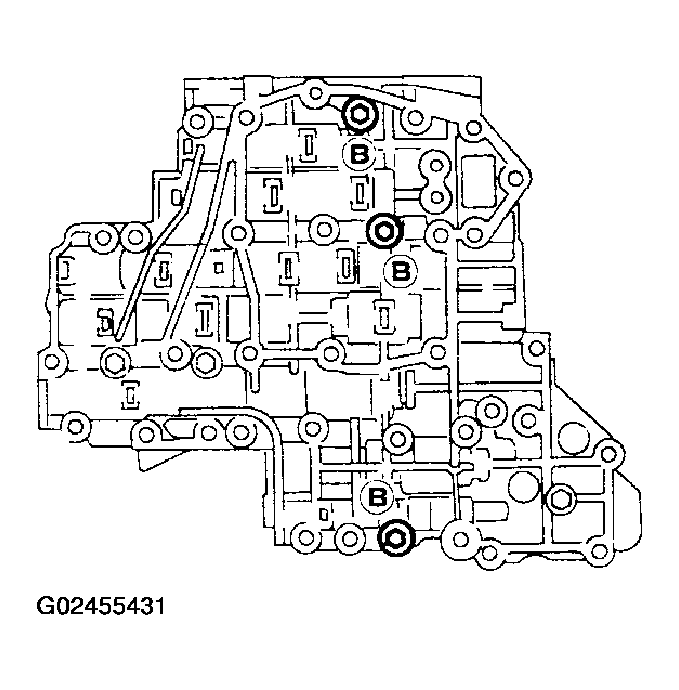

1. Install and tighten bolts B  to specified torque.
   • : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
   Fig 14: Tightening Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

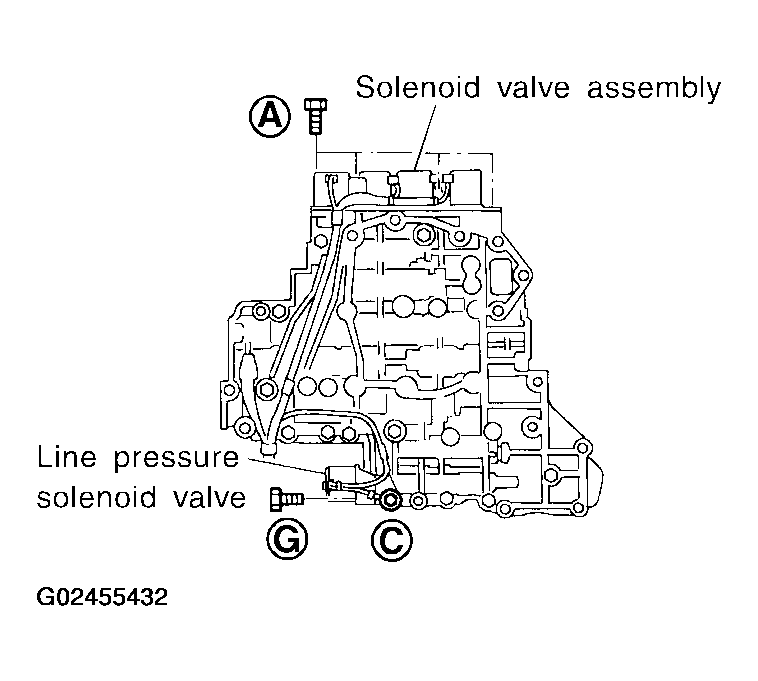

2. Install solenoid valve assembly and line pressure solenoid valve to lower body.
   Fig 15: Installing Solenoid Valve Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.

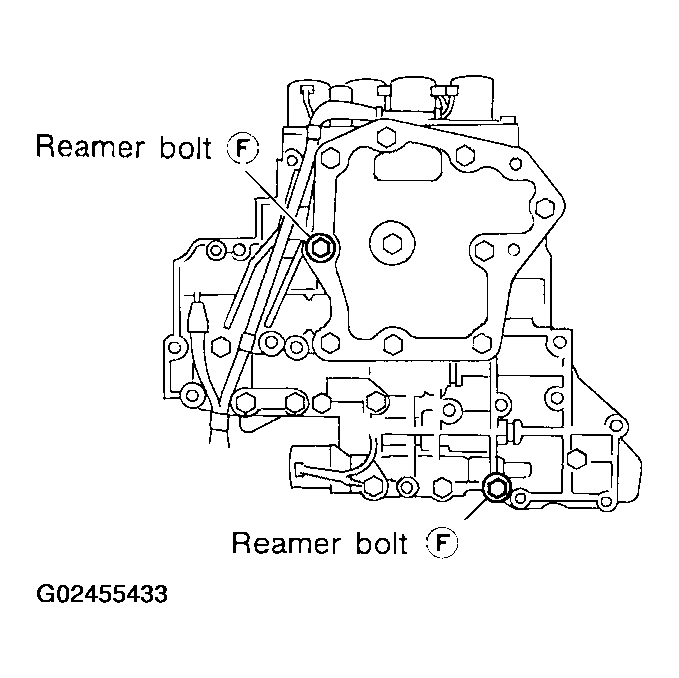

3. Remove reamer bolts F  and set oil strainer on control valve assembly.
   Fig 16: Removing Reamer Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Reinstall reamer bolts F  from lower body side.

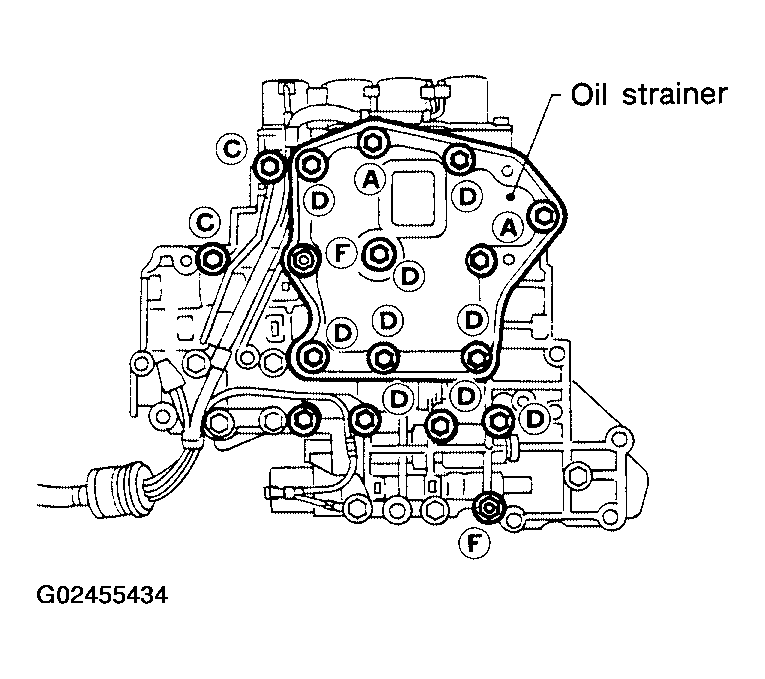

5. Tighten bolts A  , C  , D  and F  to specified torque.
   • 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
   Fig 17: Tightening Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

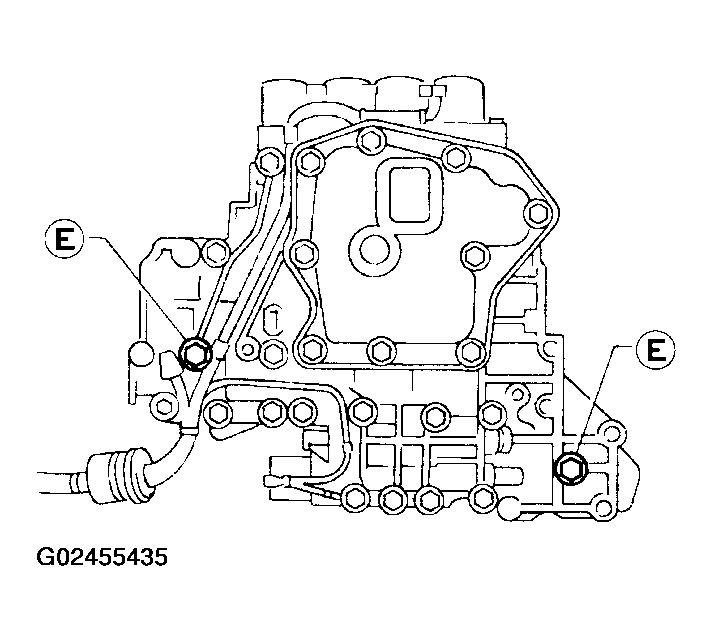

6. Tighten bolts E  to specified torque.
   • 3.4 - 4.4 N.m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)

Fig 18: Tightening Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
