Diagnostic Trouble Codes Control Unit (Ram), Control Unit (ROM): Description: Notes

WARNING: This page is about a different variant/trim than selected.

The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the A/T.

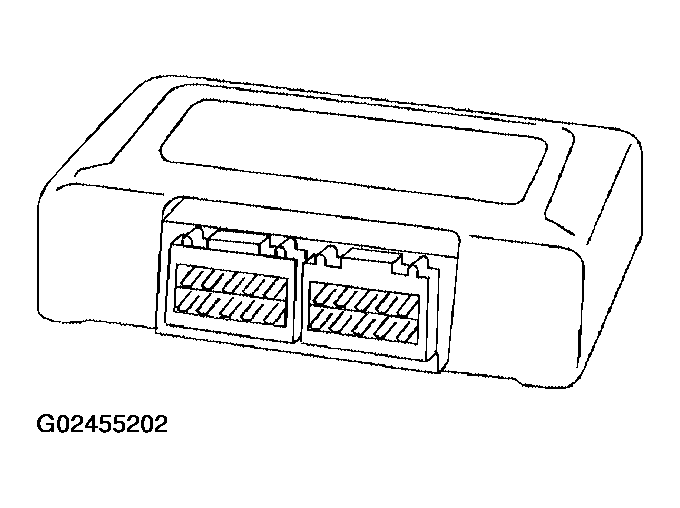

Fig 1: Identifying TCM

Courtesy of NISSAN MOTOR CO., U.S.A.
