Back-up Control (Engine brake)

WARNING: This page is about a different variant/trim than selected.

If the selector lever is shifted to "2" position while driving in D₄ (OD) or D₃ , great driving force is applied to the clutch inside the transmission. Clutch operating pressure (line pressure) must be increased to deal with this driving force.

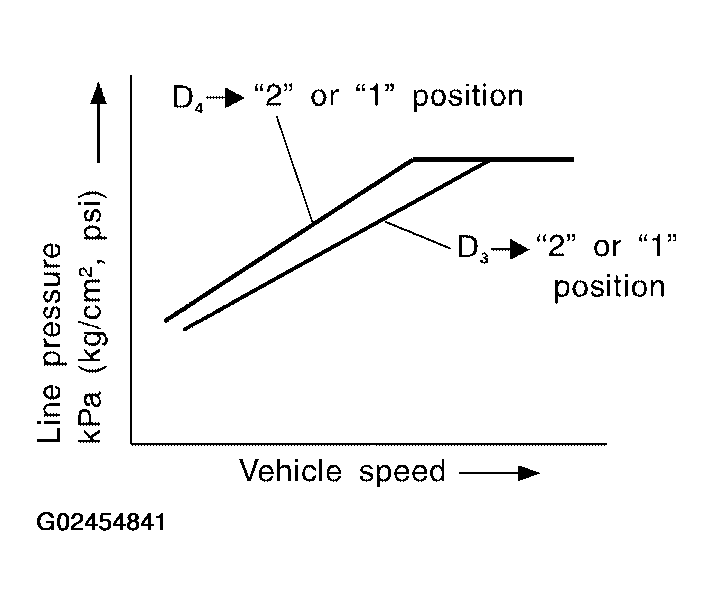

Fig 1: Line Pressure To Vehicle Speed Characteristics Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
