During Shift Change

WARNING: This page is about a different variant/trim than selected.

The line pressure is temporarily reduced corresponding to a change in engine torque when shifting gears (that is, when the shift solenoid valve is switched for clutch operation) to reduce shifting shock.

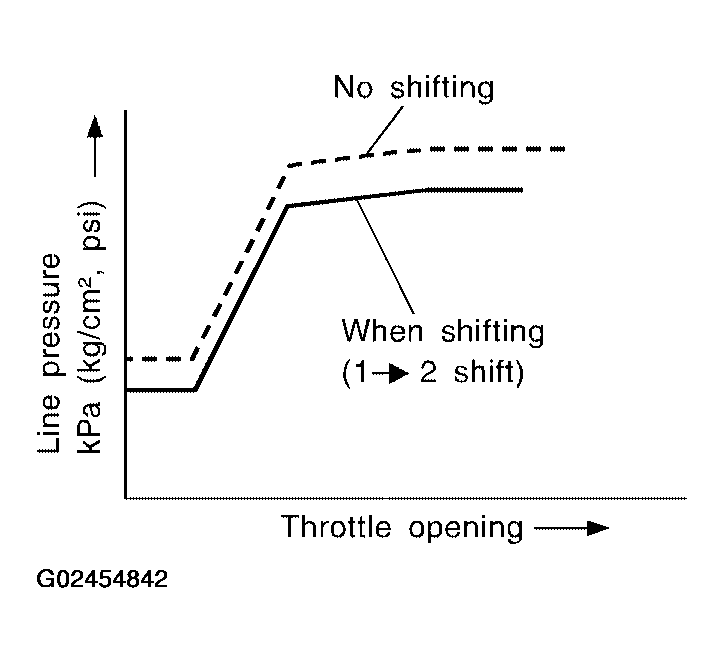

Fig 1: Line Pressure To Throttle Opening Characteristics Graph (1 Of 3)
G02454842Courtesy of NISSAN MOTOR CO., U.S.A.
