Line Pressure

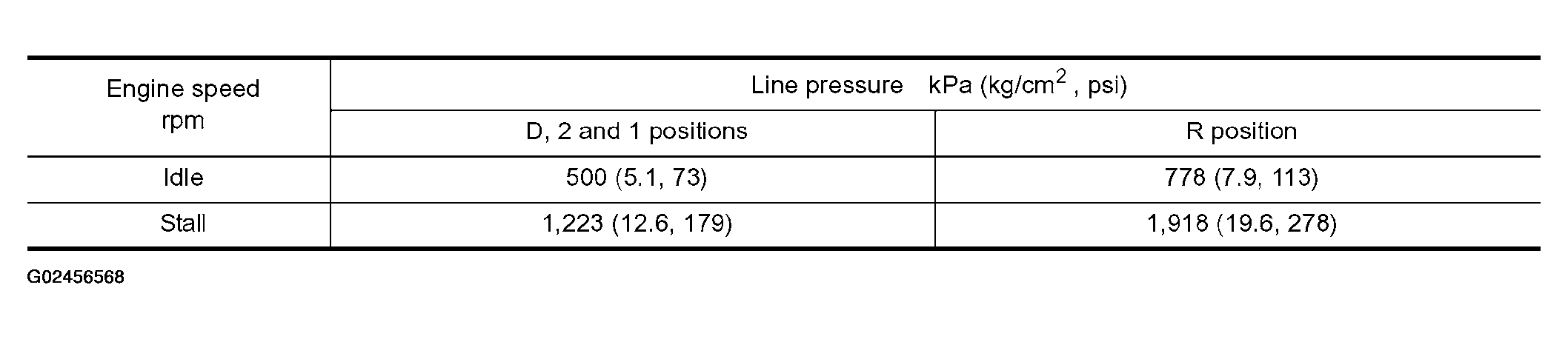

Fig 1: Line Pressure Specifications Chart

G02456568

Courtesy of NISSAN MOTOR CO., U.S.A.
