Mil And Data Link Connector: Wiring Diagram: 2WD

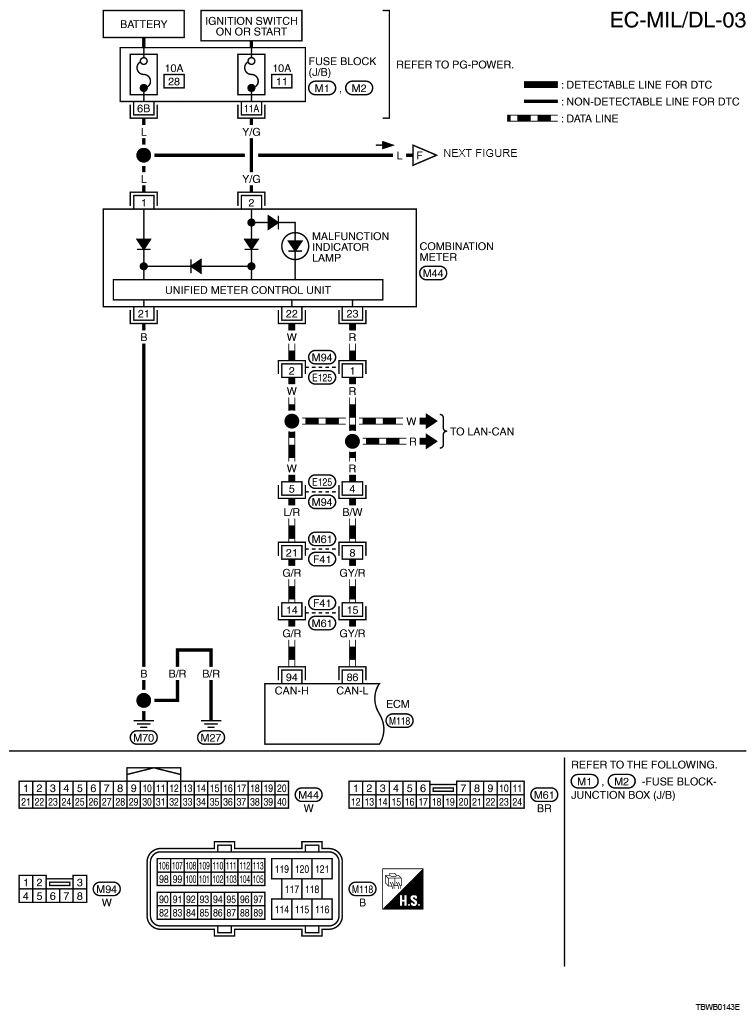

Fig 1: EC-MIL/DL-03 - Wiring Diagram (2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

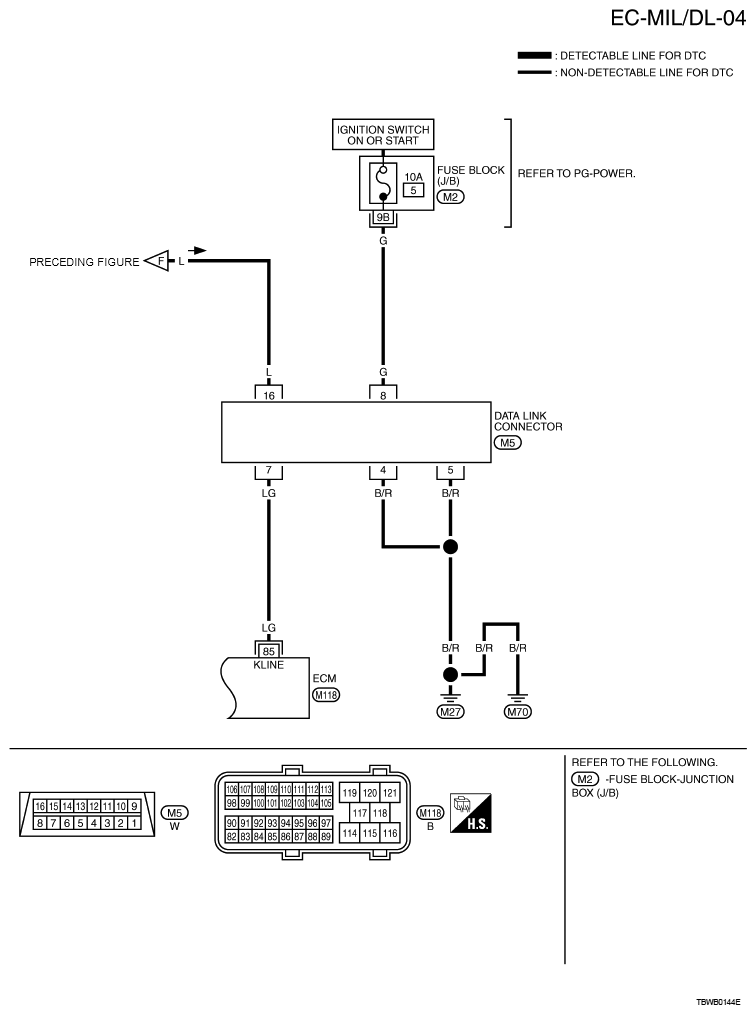

Fig 2: EC-MIL/DL-04 - Wiring Diagram (2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
