Snow Mode Switch: Wiring Diagram

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

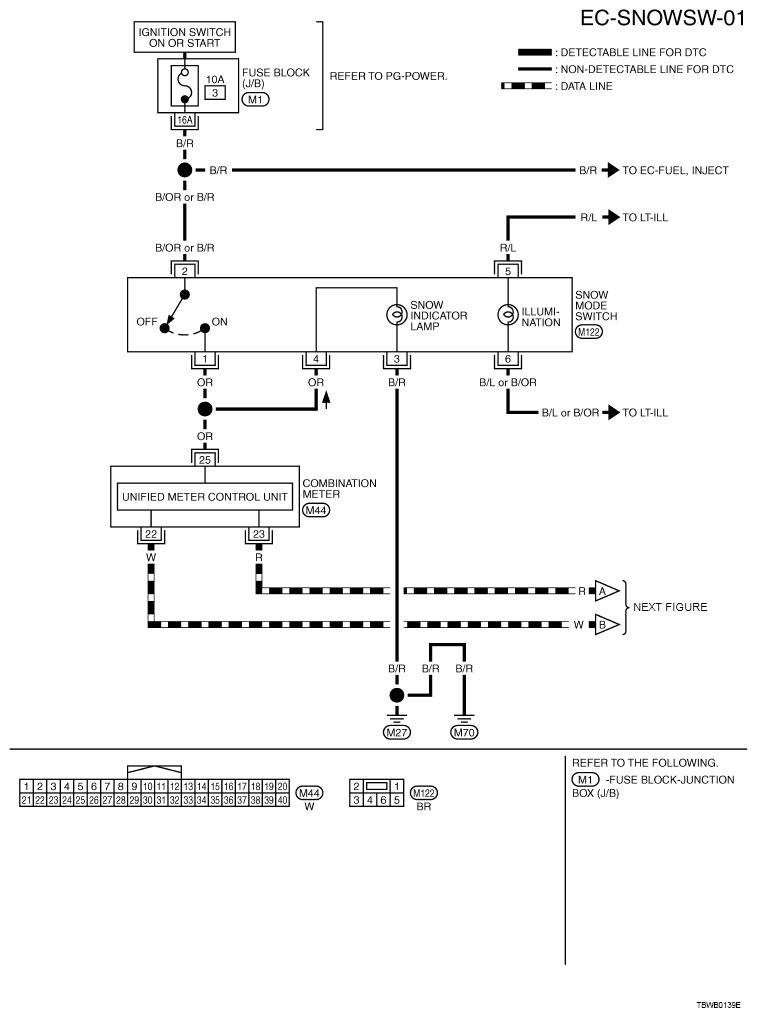

Fig 1: Wiring Diagram - EC-SNOWSW-01
G06153039Courtesy of NISSAN MOTOR CO., U.S.A.

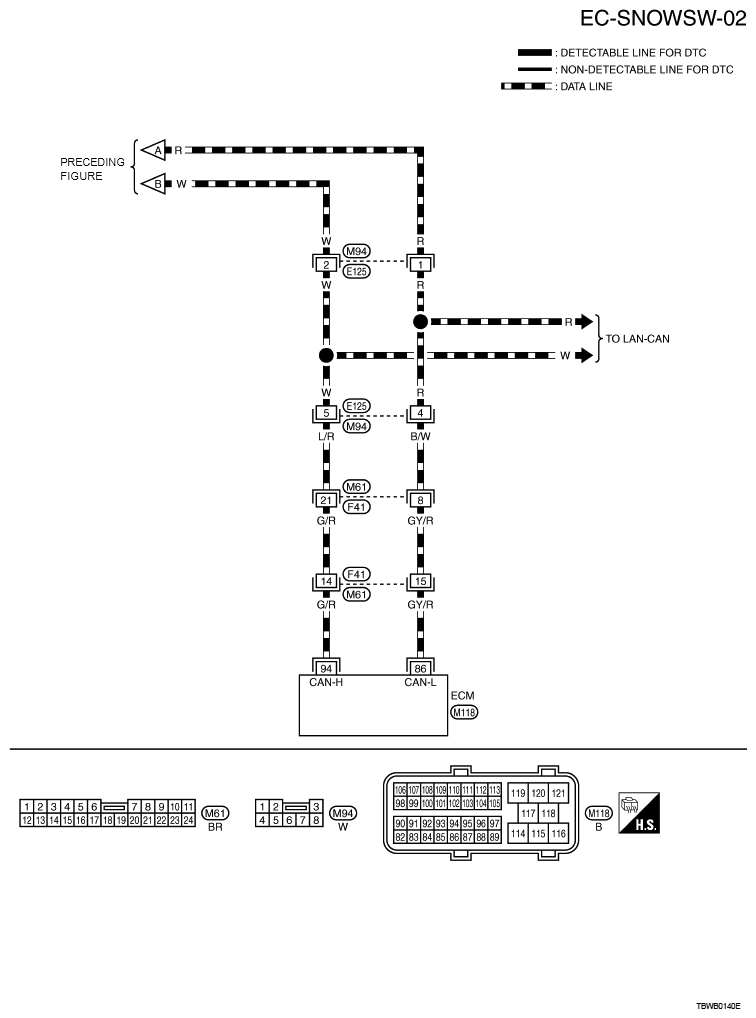

Fig 2: Wiring Diagram - EC-SNOWSW-02
G06153040Courtesy of NISSAN MOTOR CO., U.S.A.
