System - Basic Engine Control System

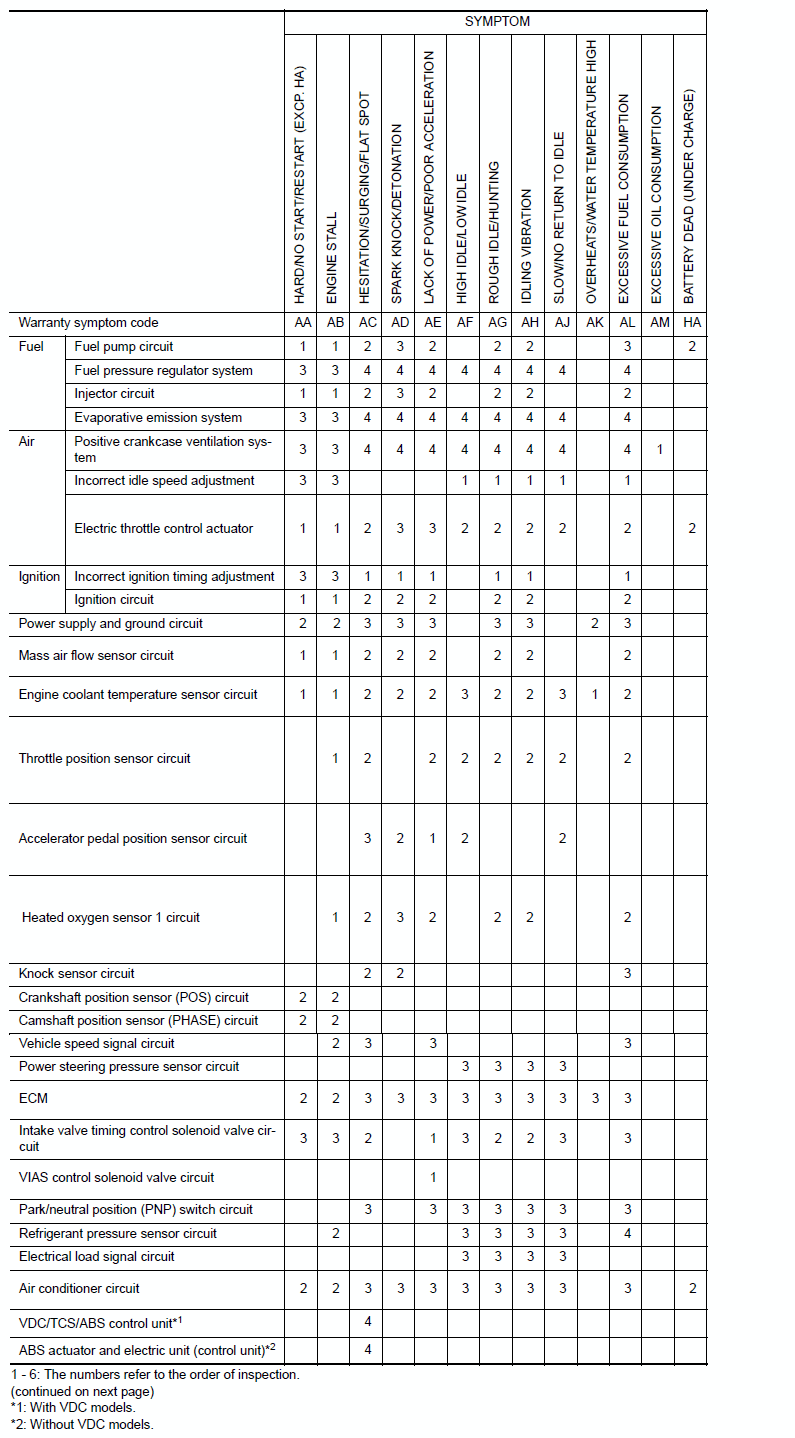

Fig 1: Symptom Matrix Chart (Basic Engine Control System)
G06152296Courtesy of NISSAN MOTOR CO., U.S.A.
