Circuit Diagram

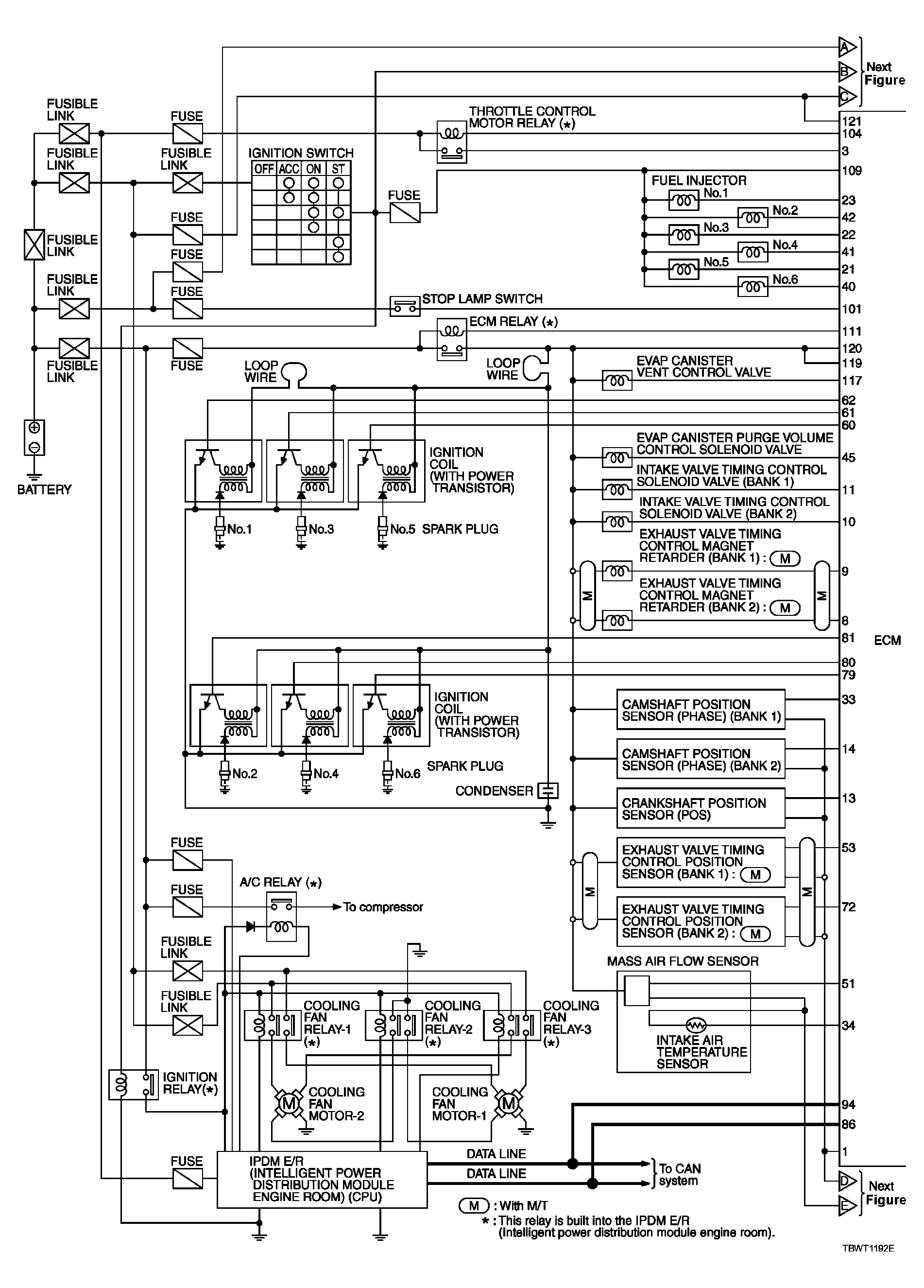

Fig 1: Circuit Diagram (1 Of 2)
G04080398Courtesy of NISSAN NORTH AMERICA, INC.

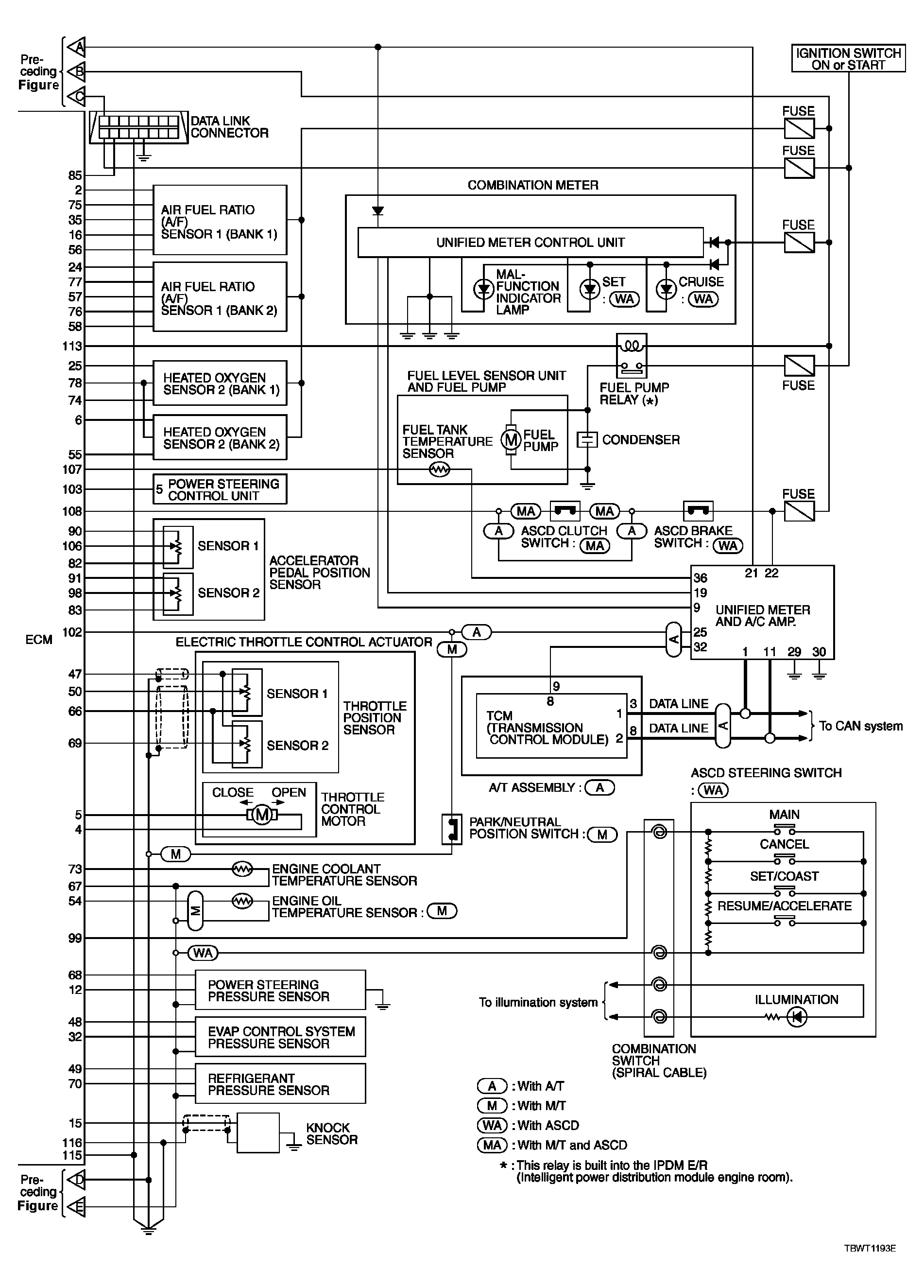

Fig 2: Circuit Diagram (2 Of 2)
G04080399Courtesy of NISSAN NORTH AMERICA, INC.
