Read Configuration Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT TEST ITEM" screen.

Fig 4: Consult-II SELECT TEST ITEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

Fig 5: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "L31 (SPEC1)" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model. Refer to , "MODEL VARIATION " .

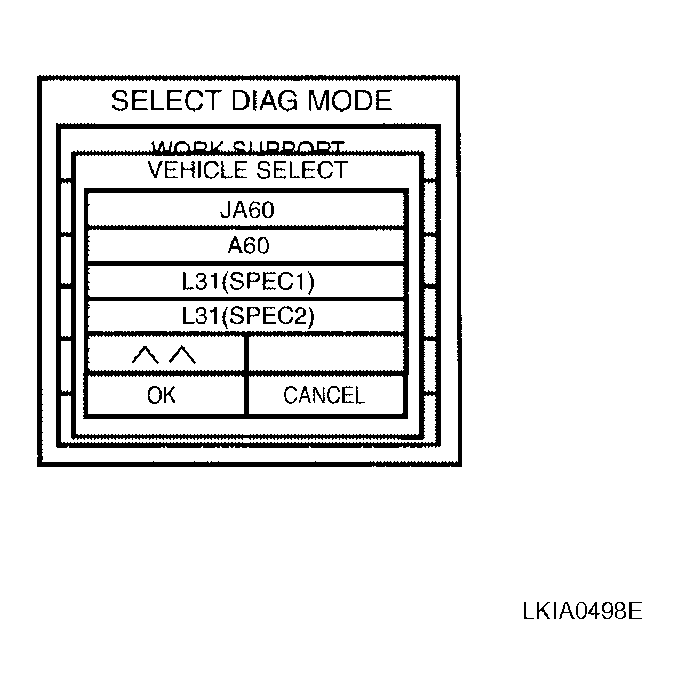

Fig 6: Touching "L31 (SPEC1)" And "OK" On "VEHICLE SELECT" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "READ CONFIGURATION" on "CONFIGURATION" screen.

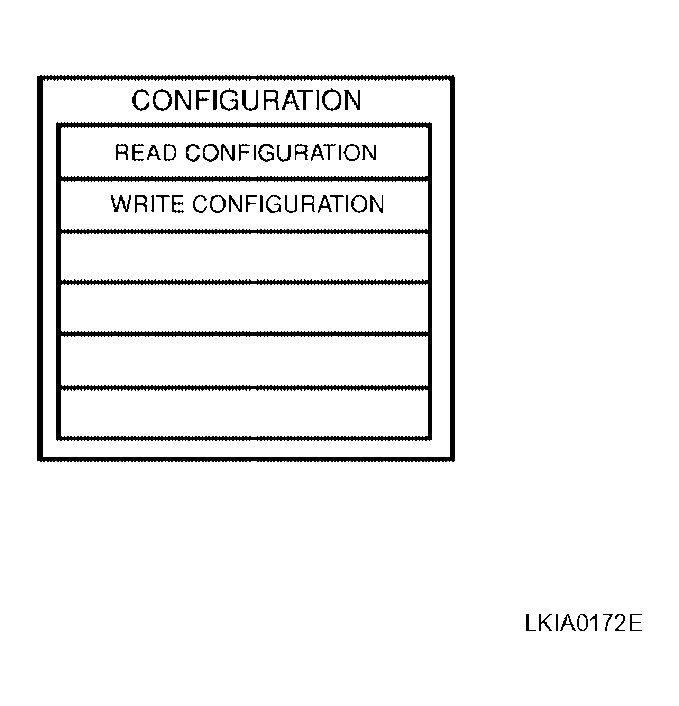

Fig 7: Touch "READ CONFIGURATION" On "CONFIGURATION" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Configuration of current BCM is printed out automatically. A listing of manual setting items and auto setting items will be displayed. Auto setting items are preset and cannot be changed. Manual setting items can be set by using WRITE CONFIGURATION PROCEDURE. Refer to , "WRITE CONFIGURATION PROCEDURE ".

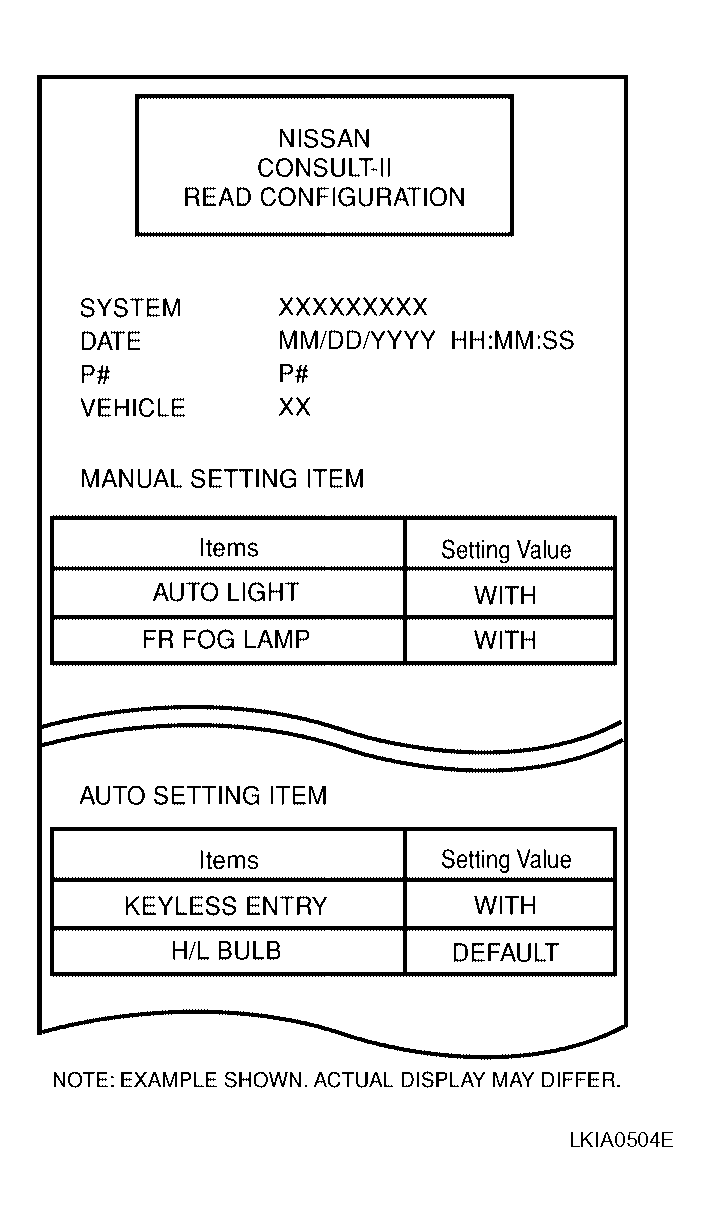

Fig 8: Identifying NISSAN CONSULT-II READ CONFIGURATION Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BACK" on "READ CONFIGURATION" screen.

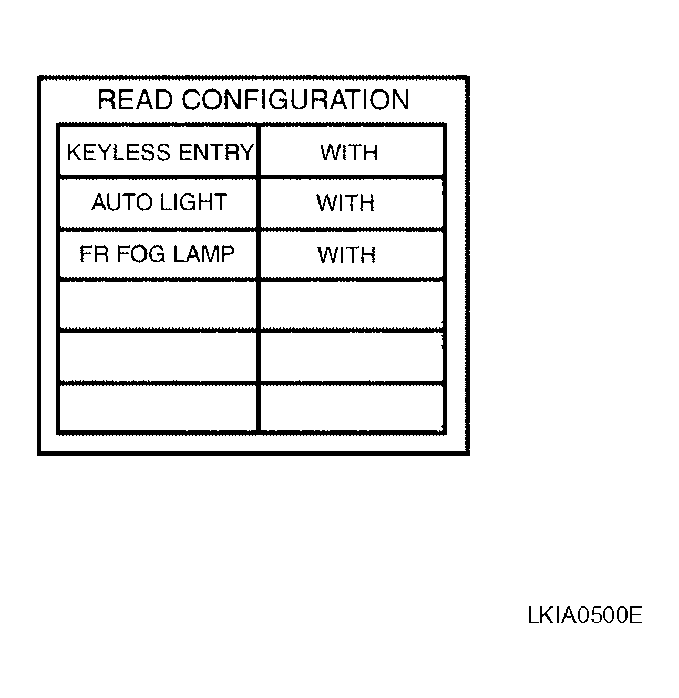

Fig 9: Touch "BACK" On "READ CONFIGURATION" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
