Disassembly And Assembly: Notes

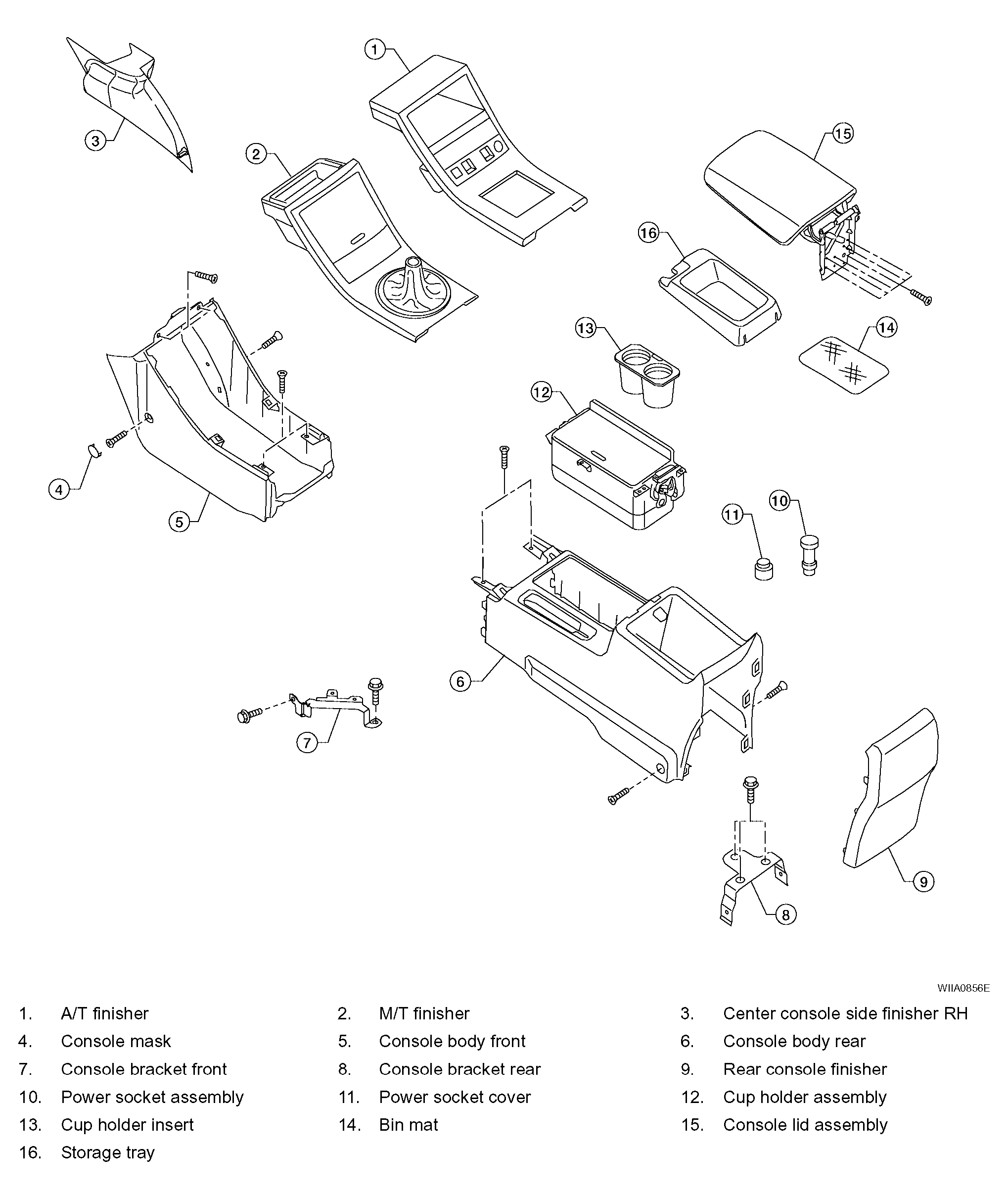

Fig 1: Disassembly And Assembly Of Center Console
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
