Example of Filling in Check Sheet When Initial Conditions Are Reproduced
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

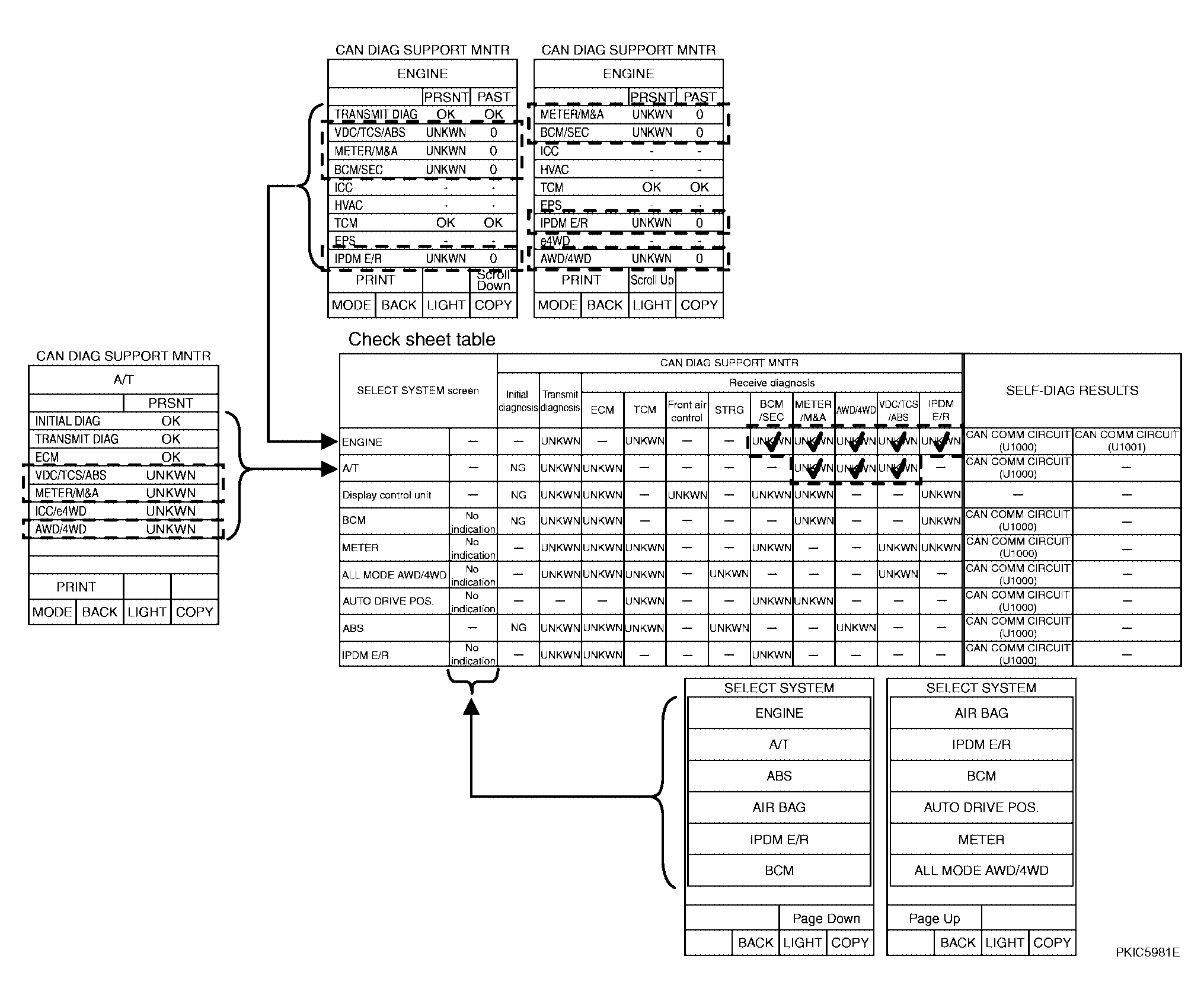

- Put a check mark to "No indication" if some of unit names listed on the column of diagnosis system selection screen of a check sheet table are not displayed on "SELECT SYSTEM" screen attached to the check sheet.NOTE: Do not put a check mark on items in the column of "No indication" on the check sheet when displaying all items on "SELECT SYSTEM" screen.
- Confirm the unit name that "UNKWN" is displayed from the copy of "CAN DIAG SUPPORT MNTR" screen of "ENGINE" attached to the check sheet, and then put a check mark to the check sheet table.NOTE: In "CAN DIAG SUPPORT MNTR" screen, "UNKWN" is displayed on "VDC/TCS/ABS", "METER/M & A", "BCM/SEC", "IPDM E/R" and "AWD/4WD". Put a check mark to it.
- Confirm the unit name that "UNKWN" is displayed on the copy of "CAN DIAG SUPPORT MNTR" screen of "A/T" as well as "ENGINE". And then, put a check mark to the check sheet table.NOTE:
- For "A/T", "UNKWN" is displayed on "VDC/TCS/ABS", "METER/M & A", "ICC/e4WD" and "AWD/4WD". But put a check mark to "VDC/TCS/ABS", "METER/M & A" and "AWD/4WD" because "UNKWN" is listed on the column of reception diagnosis of the check sheet table.
- For display control unit, put a check mark in the following procedure.

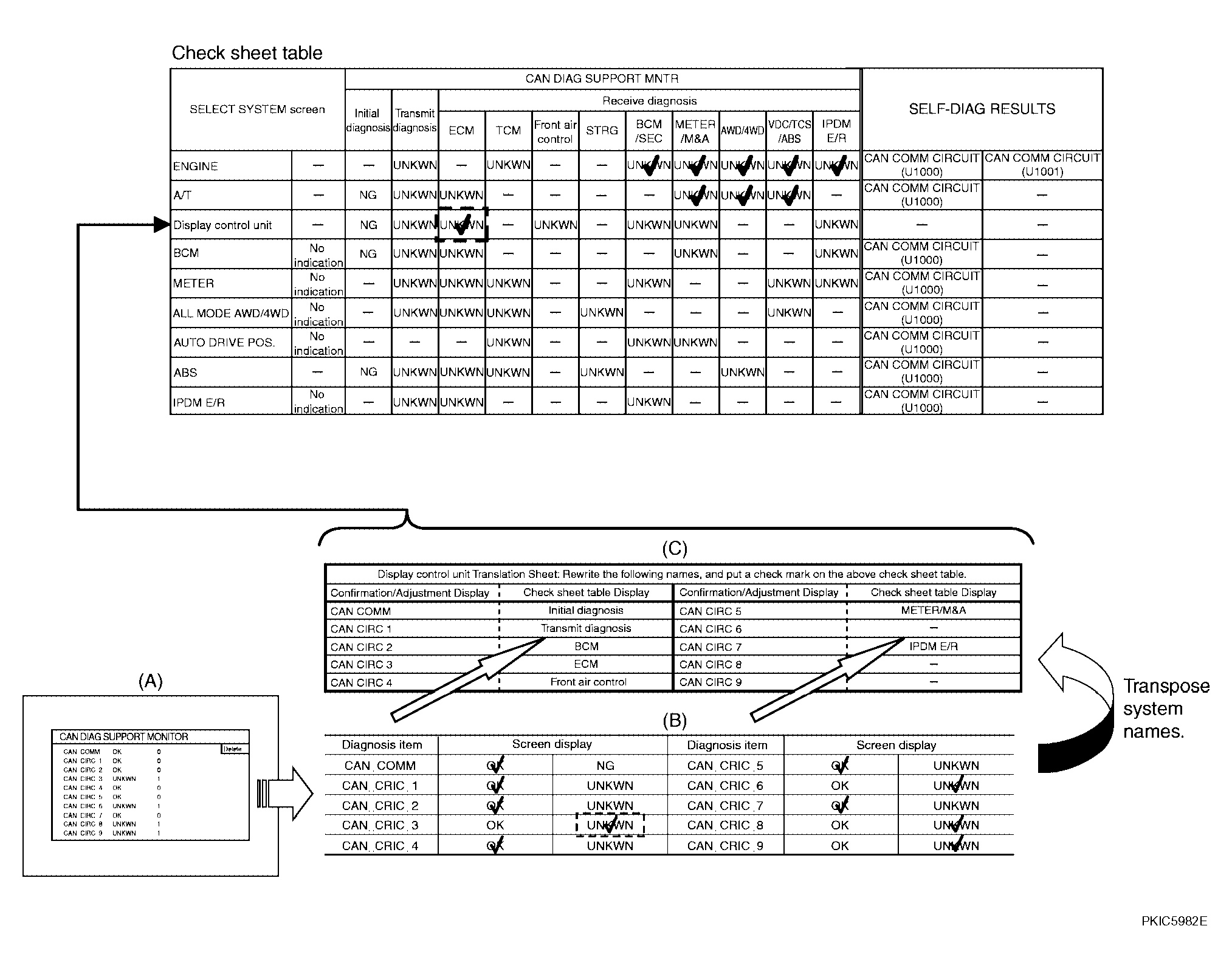

- Copy to "CAN DIAG SUPPORT MONITOR Check Sheet" (B) from the display screen (A). Refer to "CAN COMMUNICATION LINE CHECK "
- Read "CAN DIAG SUPPORT MONITOR Check Sheet" (B) with "Display control unit Translation Sheet" (C).
- Check "UNKWN" with a check mark. Put a check mark to the check sheet table.

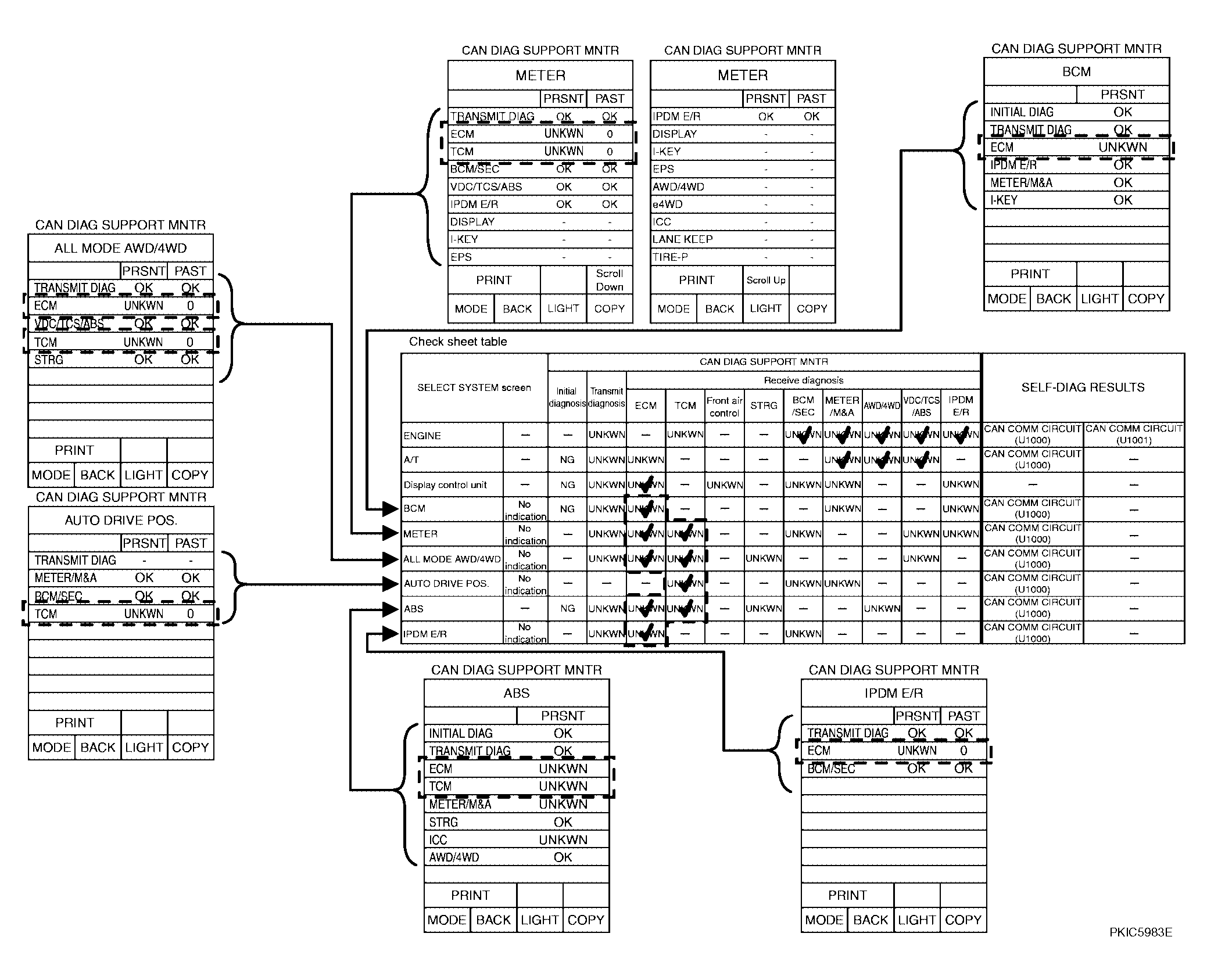

NOTE: In "CAN DIAG SUPPORT MONITOR Check Sheet" (B), check marks are put to "CAN CIRC 3", "CAN CIRC 6", "CAN CIRC 8" and "CAN CIRC 9". But, in the column of the check sheet table indication in "Display control unit Translation Sheet" (C), "ECM" is listed only for "CAN CIRC 3". Therefore, put a check mark to "ECM" because "UNKWN" is listed on the column of reception diagnosis of the check sheet table. - Confirm the unit name that "UNKWN" is displayed on the copy of "CAN DIAG SUPPORT MNTR" screen of "BCM", "METER", "ALL MODE AWD/4WD", "AUTO DRIVE POS.", "ABS" and "IPDM E/R" as well as "ENGINE". And then, put a check mark to the check sheet table.NOTE:
- For "BCM", "UNKWN" is displayed on "ECM". Put a check mark to it.
- For "METER", "UNKWN" is displayed on "ECM" and "TCM". Put a check mark to it.
- For "ALL MODE AWD/4WD", "UNKWN" is displayed on "ECM" and "TCM". Put a check mark to it.
- For "AUTO DRIVE POS.", "UNKWN" is displayed on "TCM". Put a check mark to it.
- For "ABS", "UNKWN" is displayed on "ECM", "TCM", "METER/M & A" and "ICC". But put a check mark to "ECM" and "TCM" because "UNKWN" is listed on the column of reception diagnosis of the check sheet table.
- For "IPDM E/R", "UNKWN" is displayed on "ECM". Put a check mark to it.

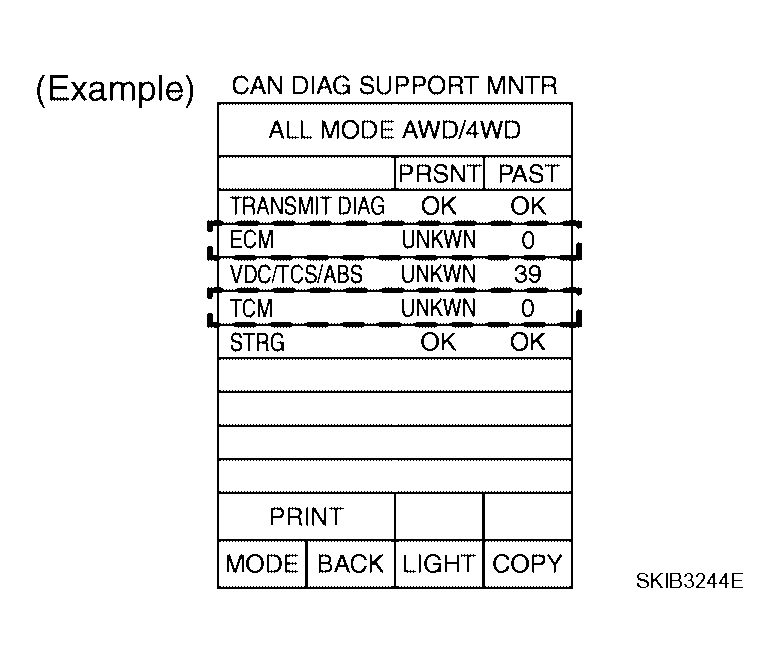

CAUTION: "ALL MODE AWD/4WD" puts a check mark on the check sheet when "Present" is "UNKWN" and "Past" is "0".Courtesy of NISSAN MOTOR CO., U.S.A.

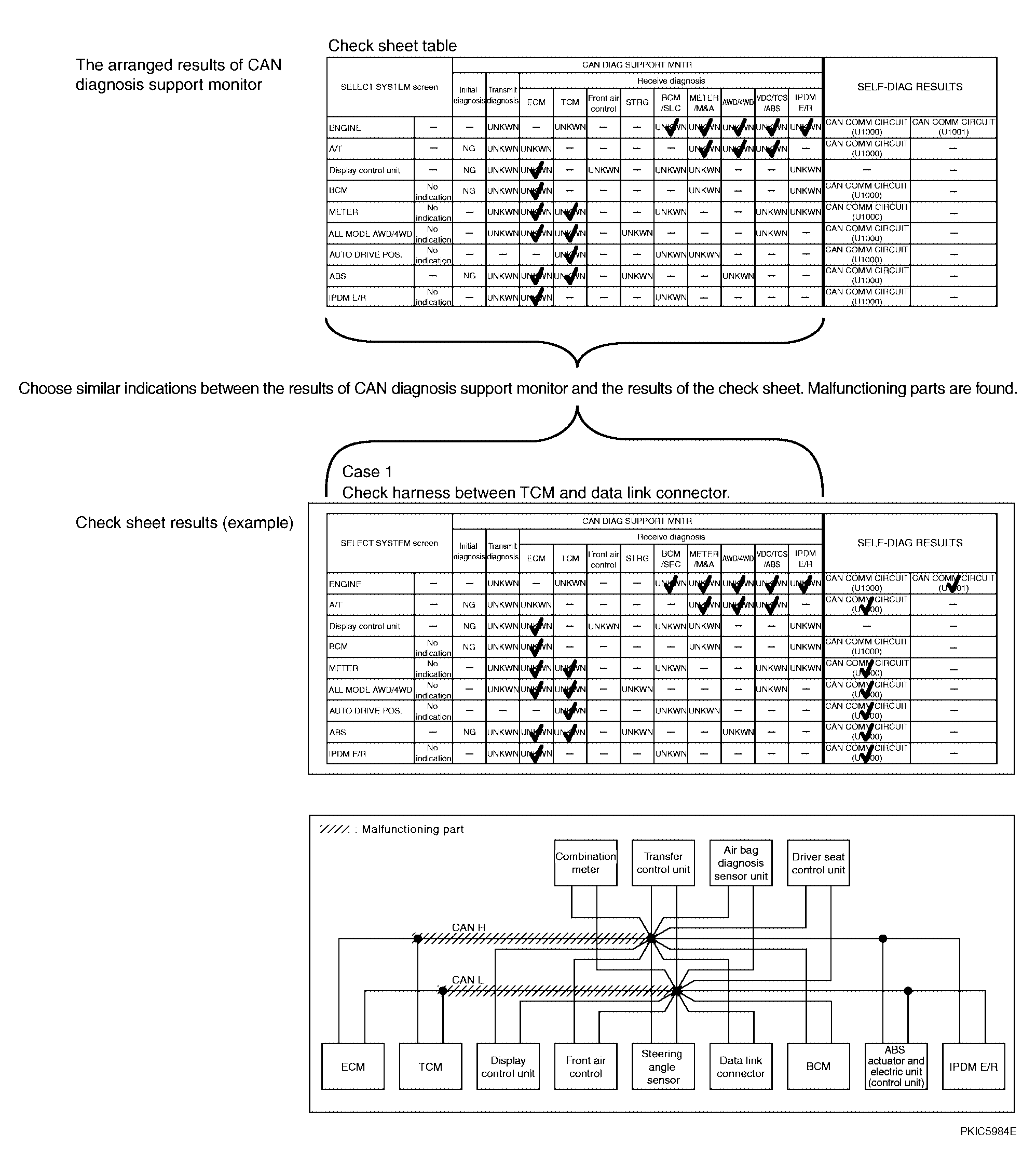

NOTE: There is a case that some of "CAN DIAG SUPPORT MNTR" and "SELF-DIAG RESULTS" are not needed for diagnosis. In the case, "UNKWN" and "CAN COMM CIRCUIT [U1000]" in "Check sheet results (example)" change to "-". Then, ignore check marks on the check sheet table. - Perform system diagnosis for possible causes identified.
- Perform diagnosis again after inspection and repair. Make sure that repair is completely performed, and then end the procedure.
Start CAN system trouble diagnosis if this procedure can be confirmed. Refer to , "CAN COMMUNICATION UNIT "
