Commercial Service Tools
COMMERCIAL SERVICE TOOLS DESCRIPTION
| Tool name | Description | |
|---|---|---|
| Power tool | Loosening bolts and nuts | |

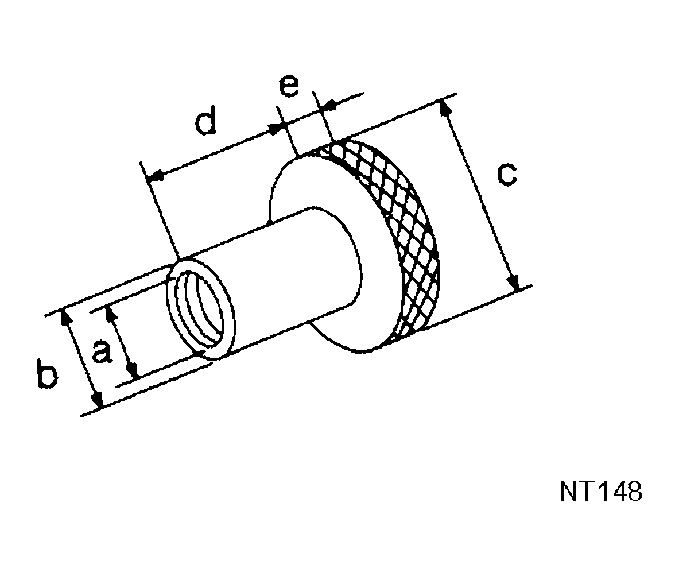

| Attachment wheel alignment | Measuring wheel alignment a: Screw M24 x 1.5 pitch b: 35 mm (1.38 in) dia. c: 65 mm (2.56 in) dia. d: 56 mm (2.20 in) e: 12 mm (0.47 in) |
|

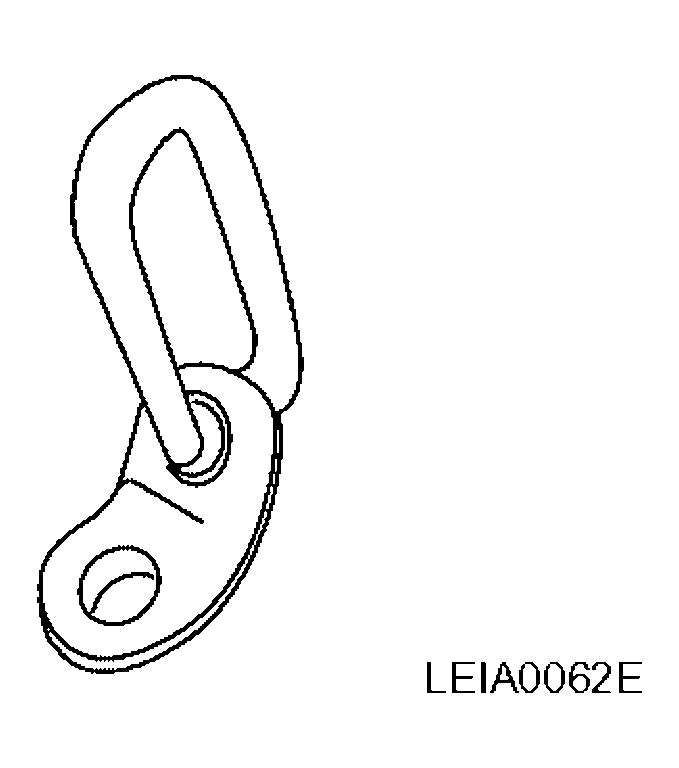

| Engine lifting bracket | Removing and installing suspension member with 5A/T | |

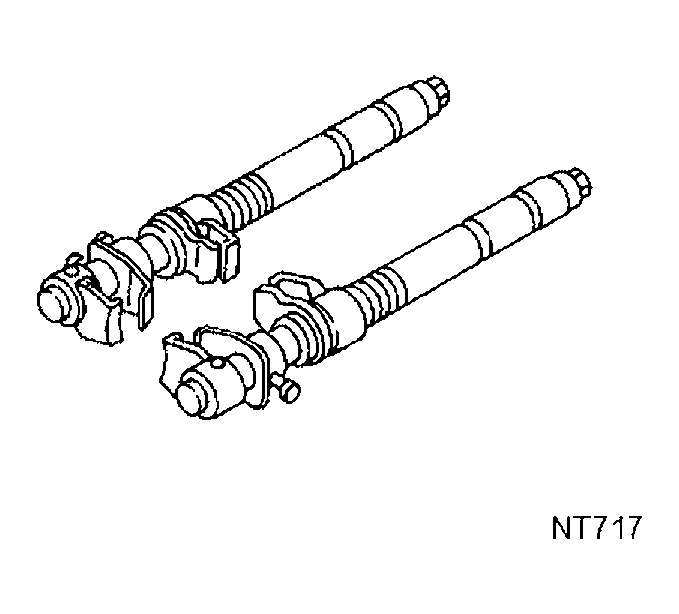

| Spring compressor | Removing and installing coil spring |
