Automatic Transmission - Re5F22A - DTC Index, Troubleshooting Introduction
>>
Re5F22A
>>
A/T Control System
>>
Lock-Up Control
>>
Torque Converter Clutch Control Valve Control
>>
Lock-up Control System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Lock-up Control System Diagram

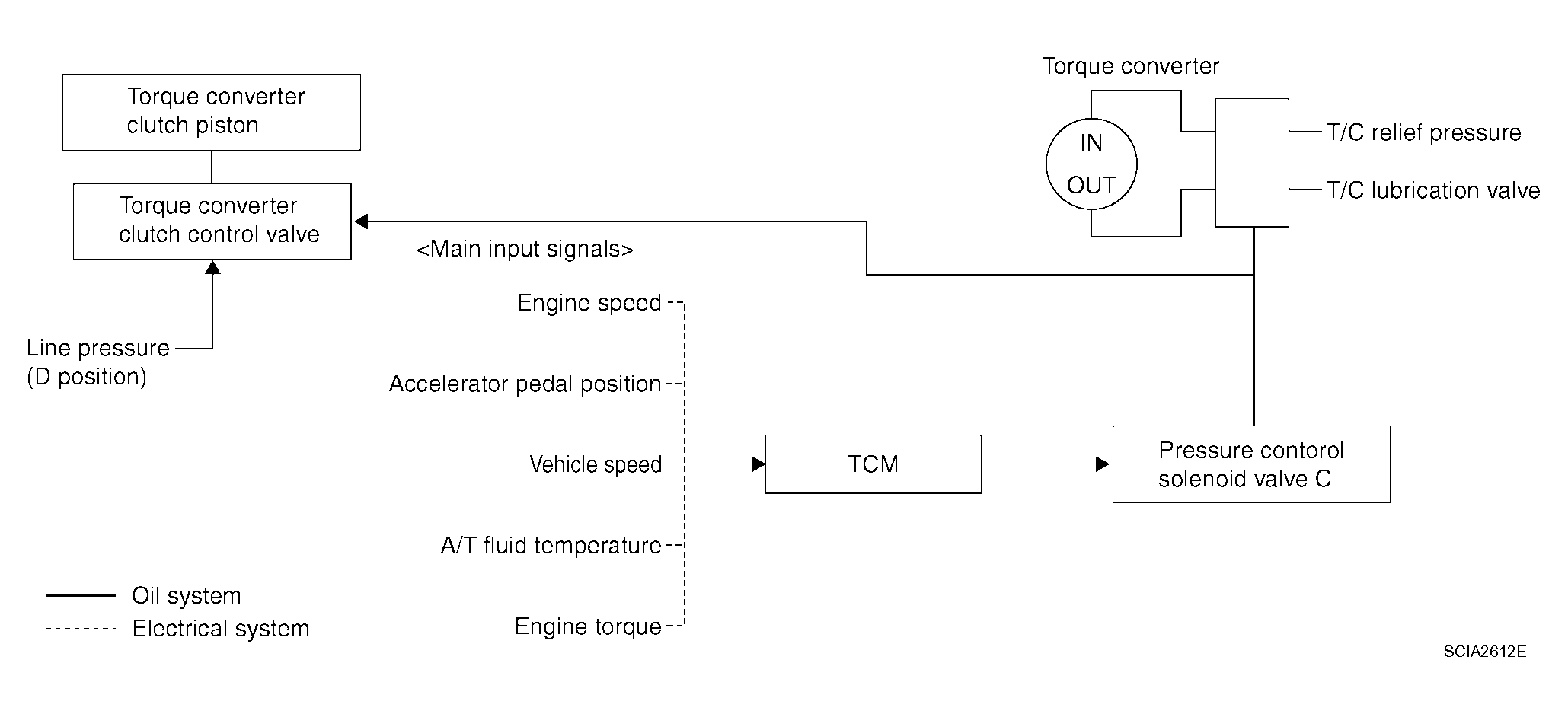

Fig 1: Lock-Up Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
