CONSULT-II Basic Operation Procedure: Notes

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communications.

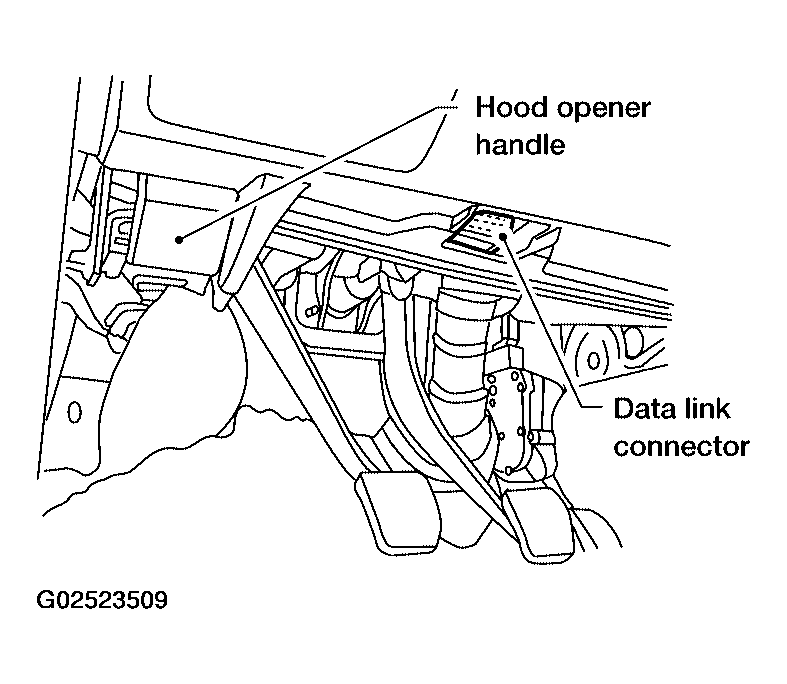

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ON ignition switch.

Fig 1: Connecting CONSULT-II Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

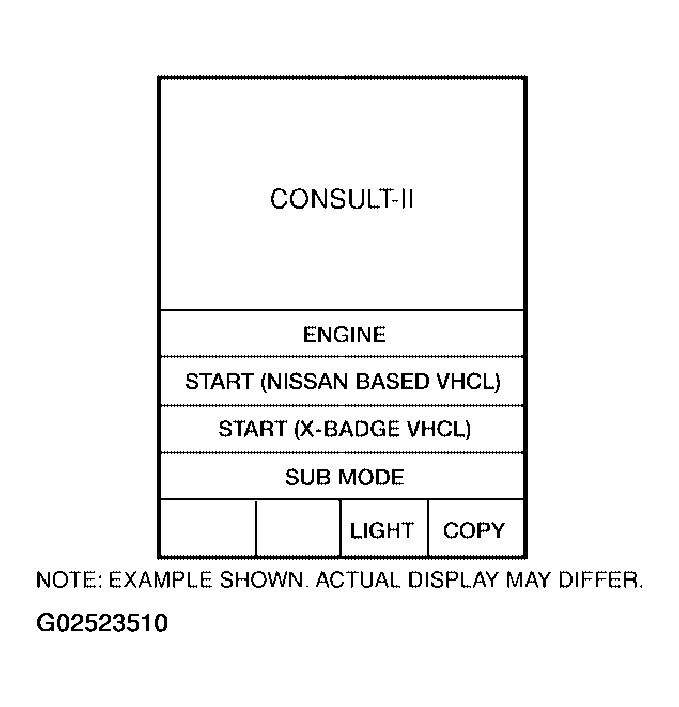

Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.

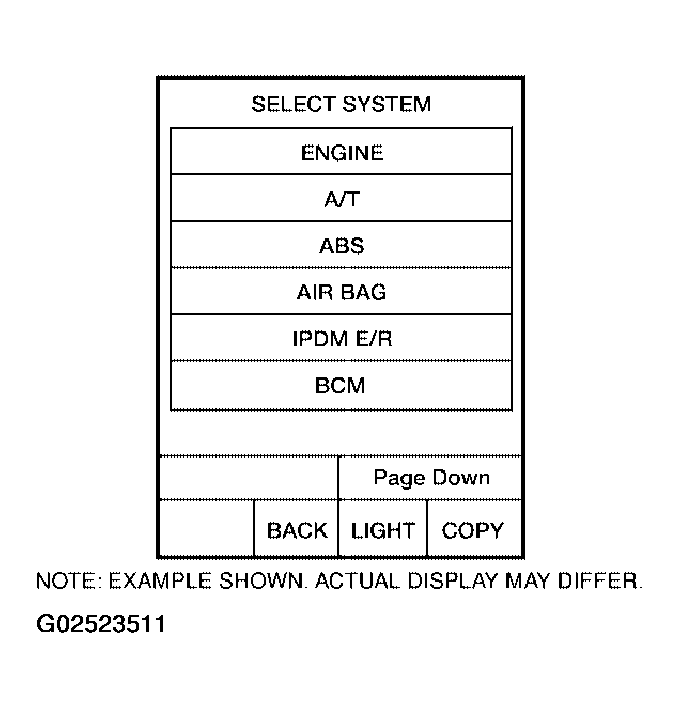

Touch "BCM" on "SELECT SYSTEM" screen.

Fig 3: CONSULT-II Display - "BCM" On "SELECT SYSTEM"
Courtesy of NISSAN MOTOR CO., U.S.A.

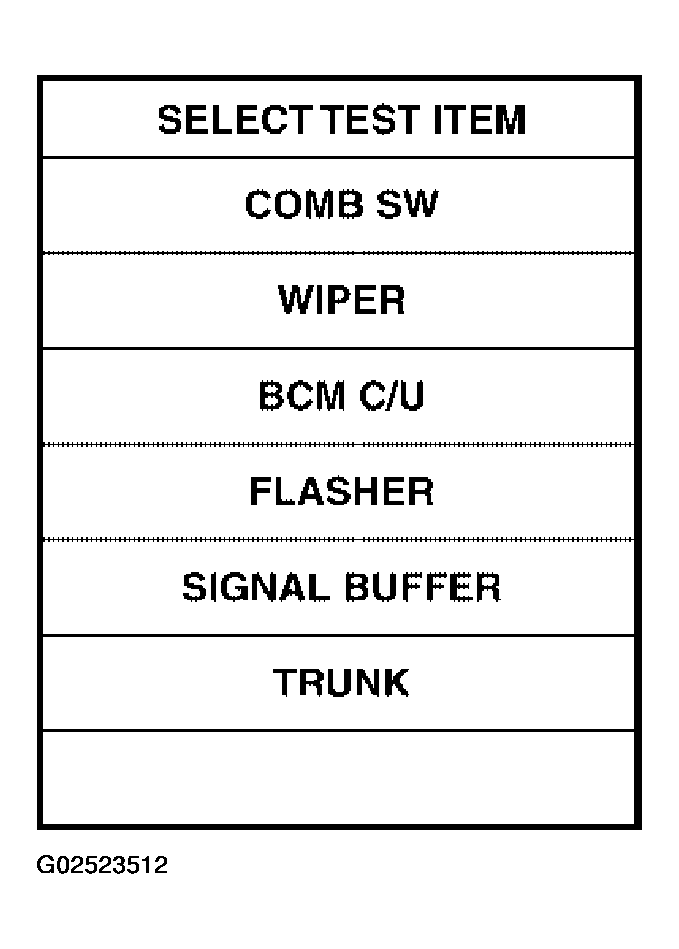

Select item to be diagnosed on "SELECT TEST ITEM" screen.

Fig 4: CONSULT-II Display - SELECT TEST ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
