Key-Trap Preventive Function

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

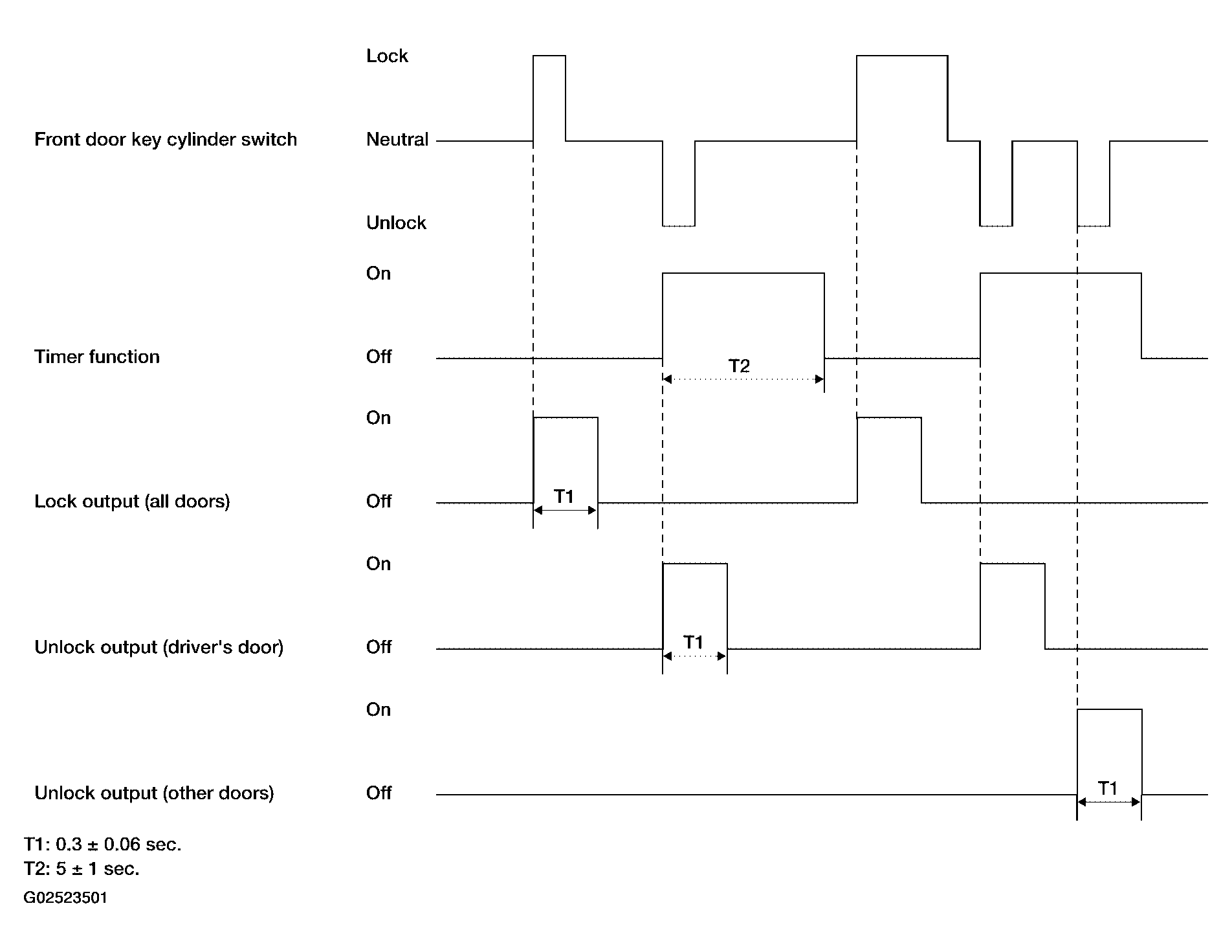

Fig 1: Time Chart - Key-Trap Preventive Function
G02523501Courtesy of NISSAN MOTOR CO., U.S.A.
