Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
  2. Touch item to be tested, and check operation.
  3. Touch "START".
  4. Touch "STOP" while testing to stop the operation.

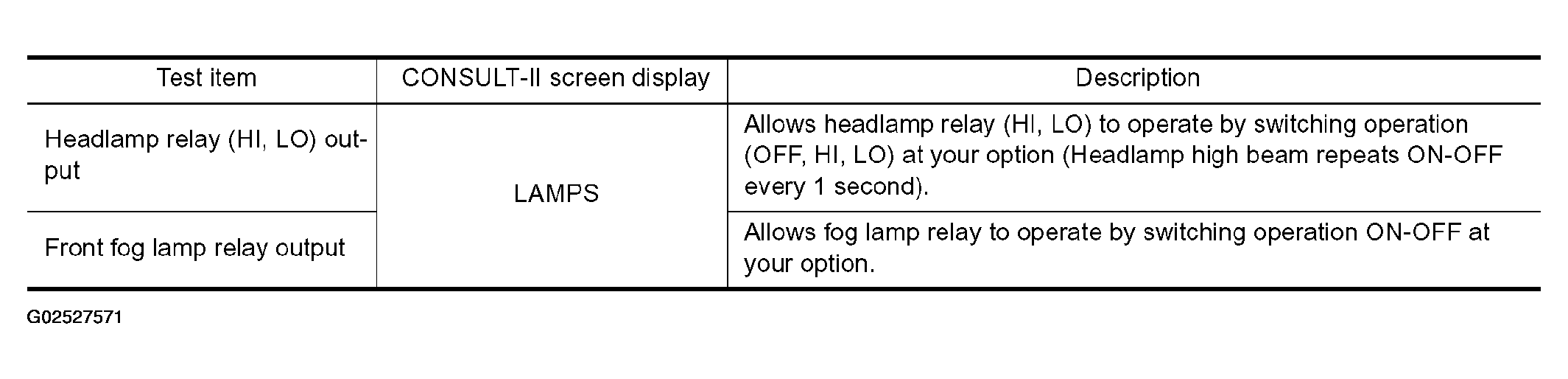

Fig 1: Test Item Description Chart
G02527571Courtesy of NISSAN MOTOR CO., U.S.A.
