All Except Se-R Models: Removal

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

CAUTION:
  • Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it. Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.
  • Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.
  1. Position the front fender protector aside. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect electrical connector.
  3. Turn the bulb counterclockwise to remove it.

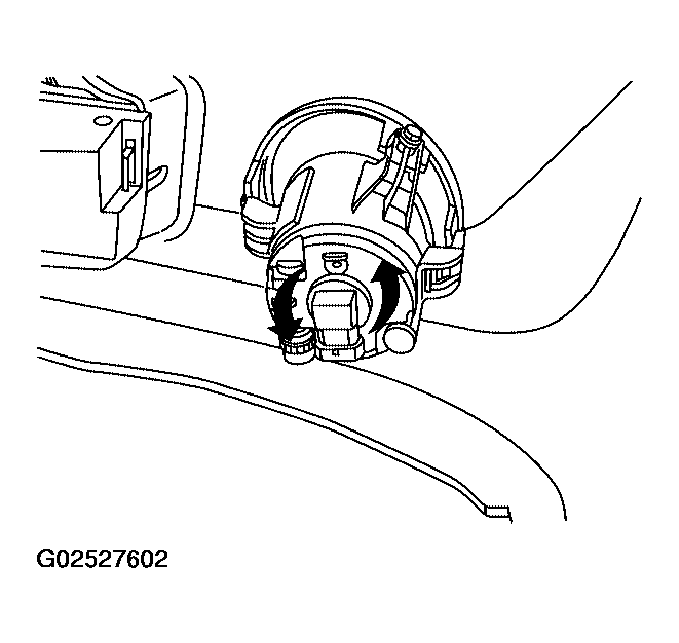

    Fig 1: Removing Bulb
    G02527602Courtesy of NISSAN MOTOR CO., U.S.A.
