Component Inspection

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Apply 12V direct current between transfer relay 1, 2 terminals 1 and 2.
Check continuity between relay terminals 3 and 5.

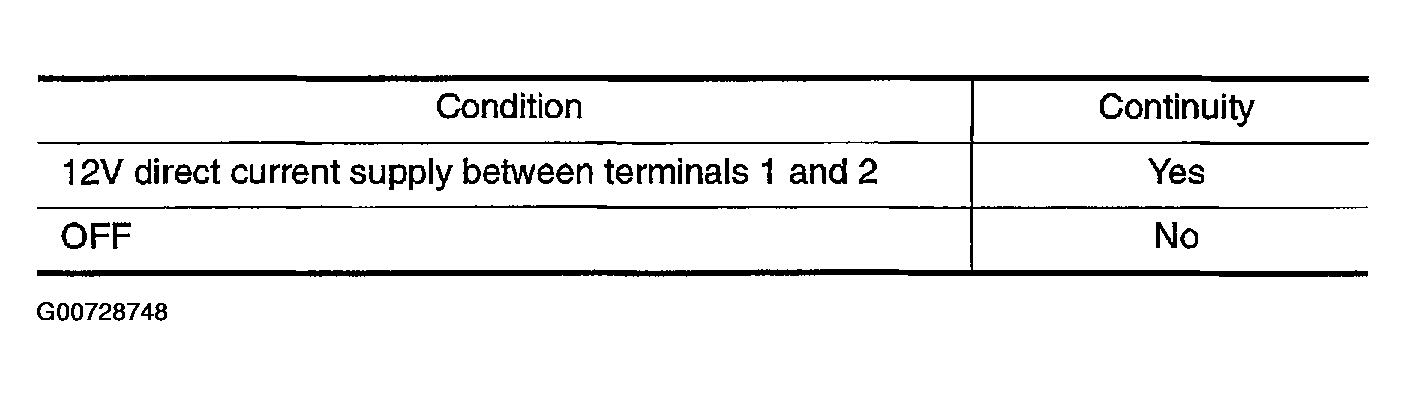

Fig 1: Continuity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace the transfer relay 1 or 2.

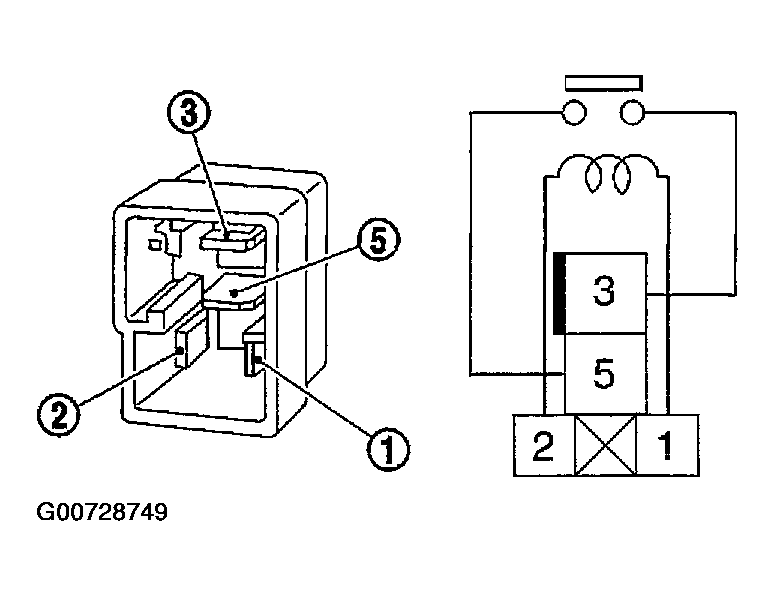

Fig 2: Identifying Relay Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
