Removal Of Drive Gear And Differential Case Assembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove differential side shaft with a soft hammer.

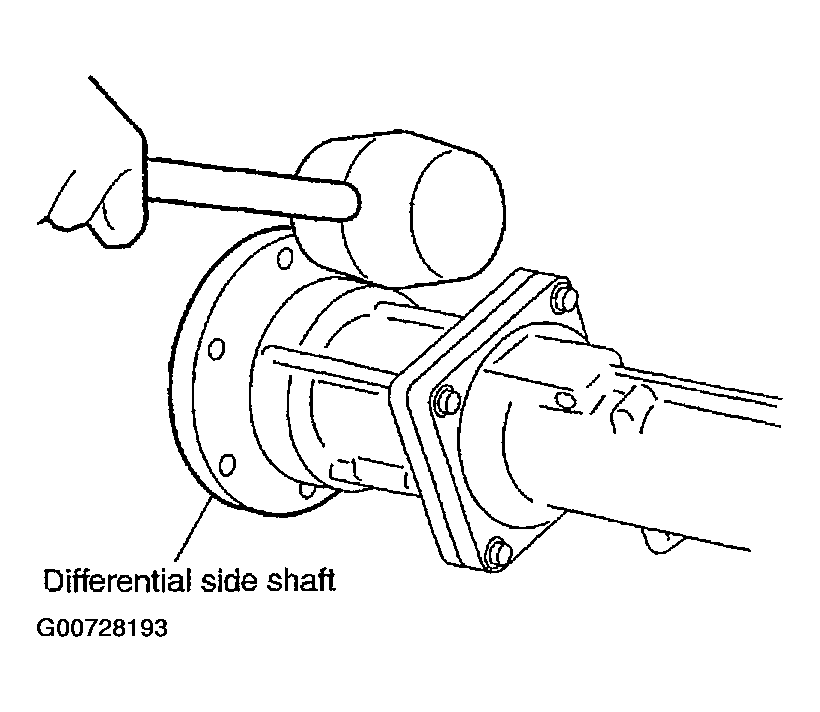

Fig 1: Removing Differential Side Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side flange with a soft hammer.

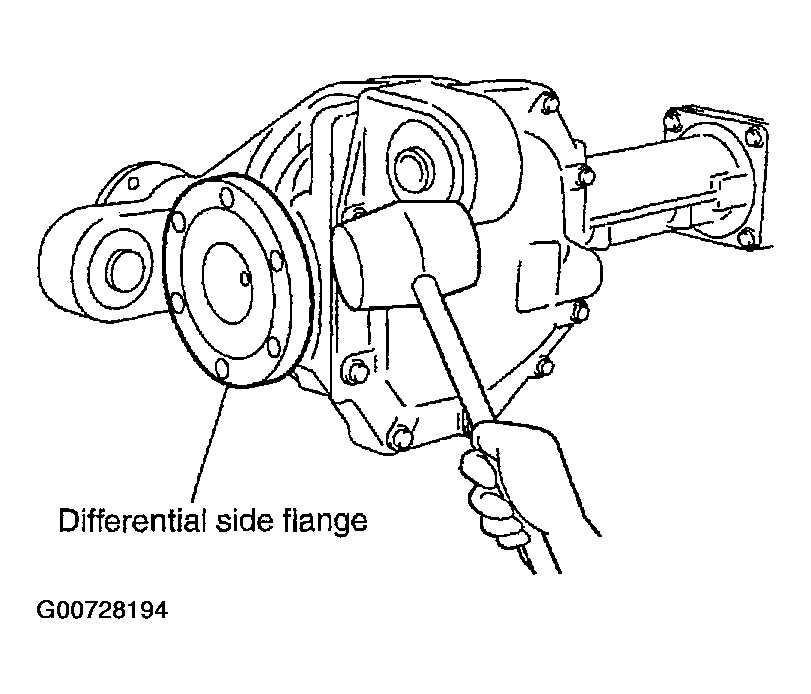

Fig 2: Removing Differential Side Flange
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove extension tube and O-ring.

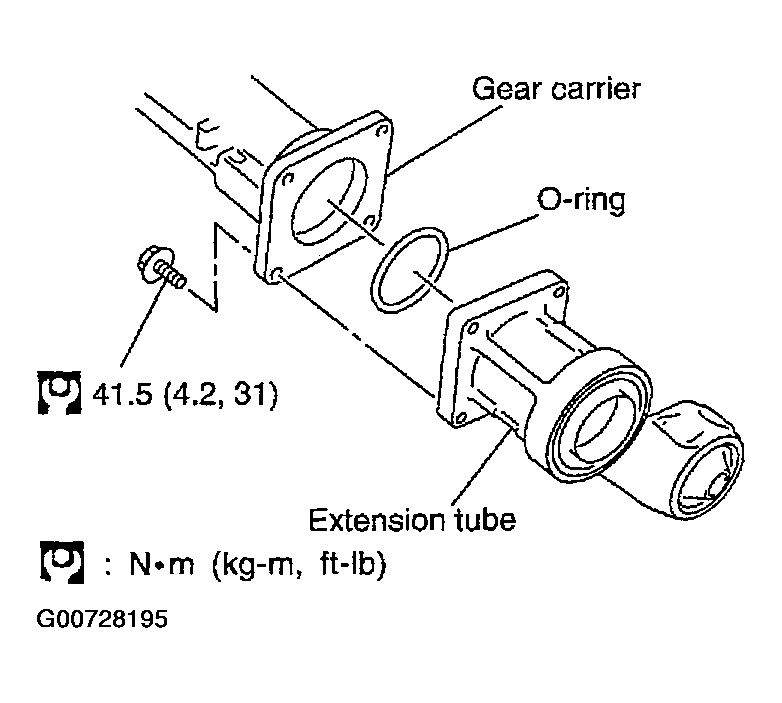

Fig 3: Removing Extension Tube & O-Ring With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a punch or drill, place a small hole in case.

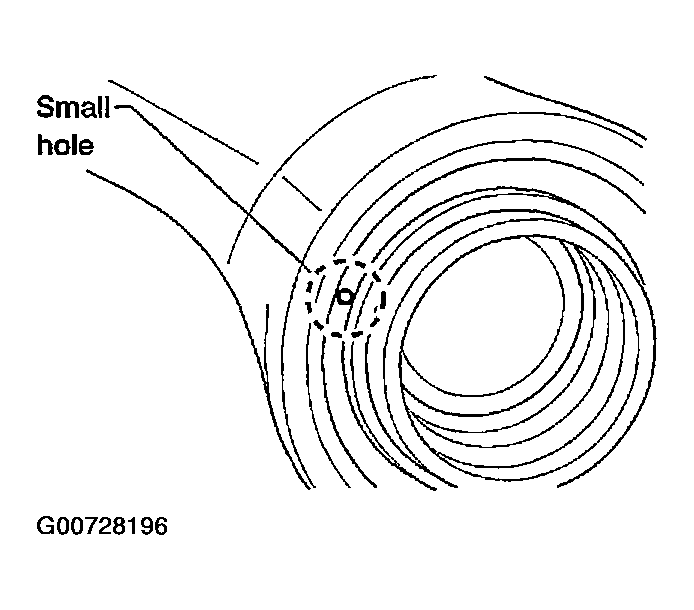

Fig 4: Placing A Small Hole In Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Assemble Tool as shown and remove seal.
Tool number : SP8P

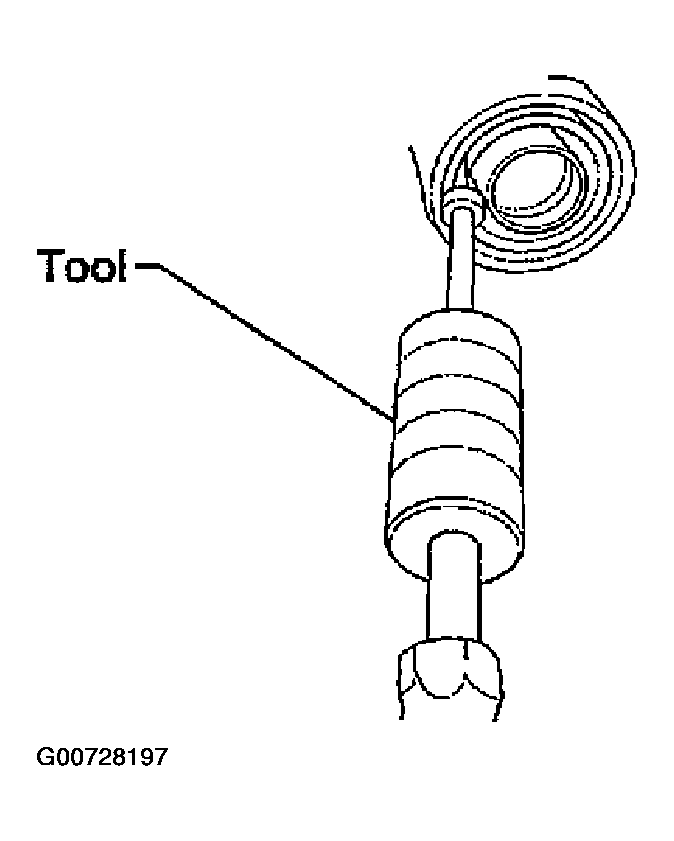

Fig 5: Removing Seal With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear cover from gear carrier.

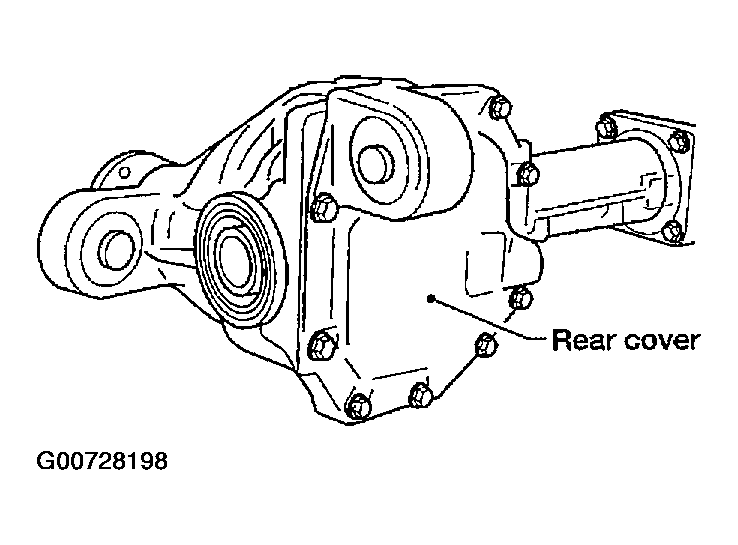

Fig 6: Removing Rear Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
For proper reinstallation, paint matching mark on one side bearing cap.
NOTE: Bearing caps are line-board for initial assembly. The matching marks are used to replace them in their original positions.

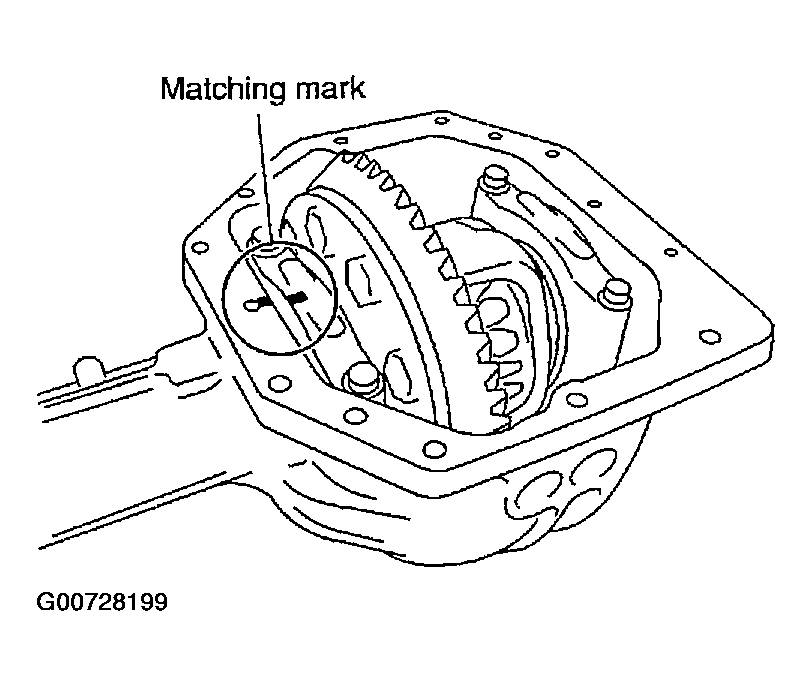

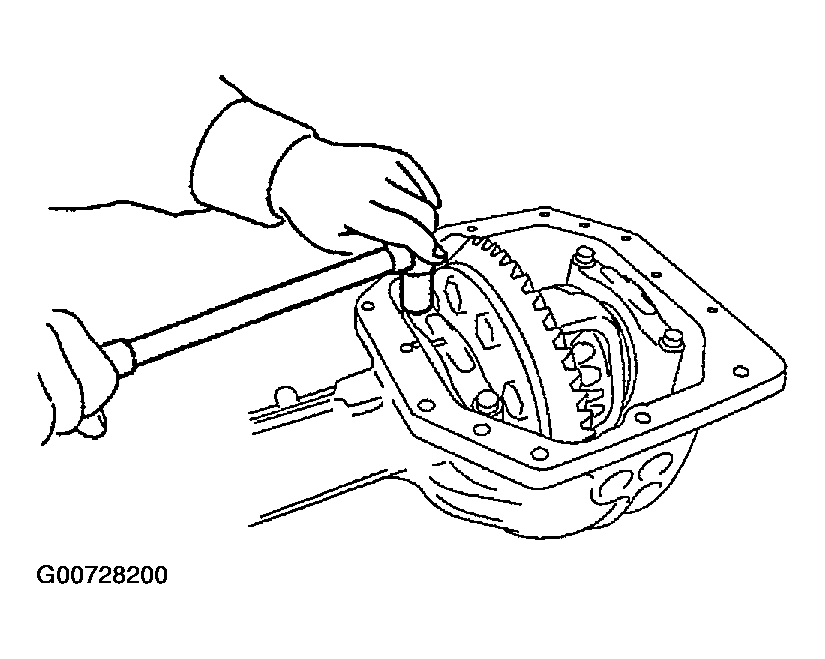

Fig 7: Painting Matching Mark On One Side Bearing Cap
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove side bearing caps.

Fig 8: Removing Side Bearing Caps
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove side bearing adjust nuts.

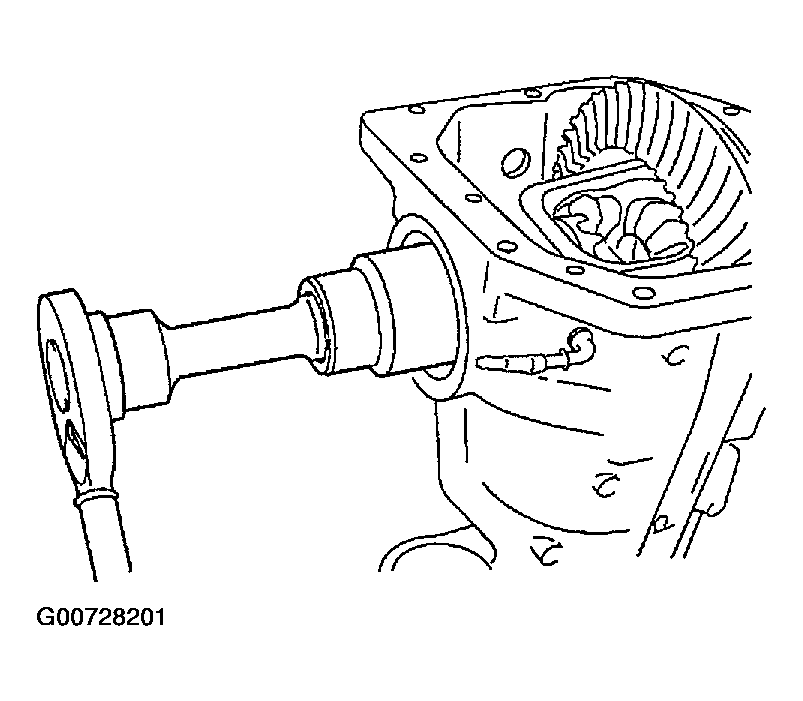

Fig 9: Removing Side Bearing Adjust Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
Keep the side bearing outer races together with inner race. Do not mix them up.

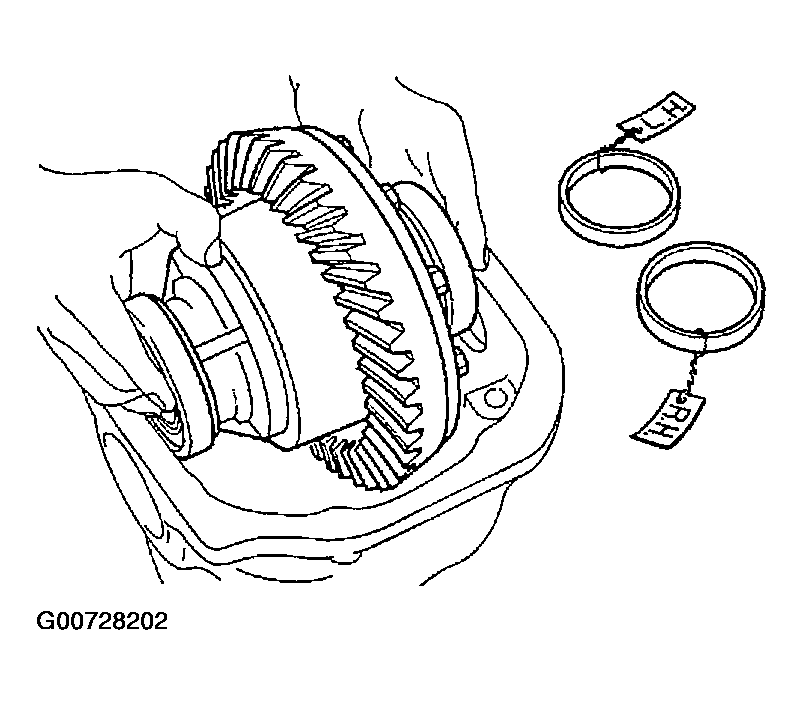

Fig 10: Identifying Inner & Outer Races

Courtesy of NISSAN MOTOR CO., U.S.A.
