Back-Up Lamp Switch

Check continuity.

BACK-UP LAMP SWITCH

Gear position	Continuity
Reverse	Yes
Except reverse	No

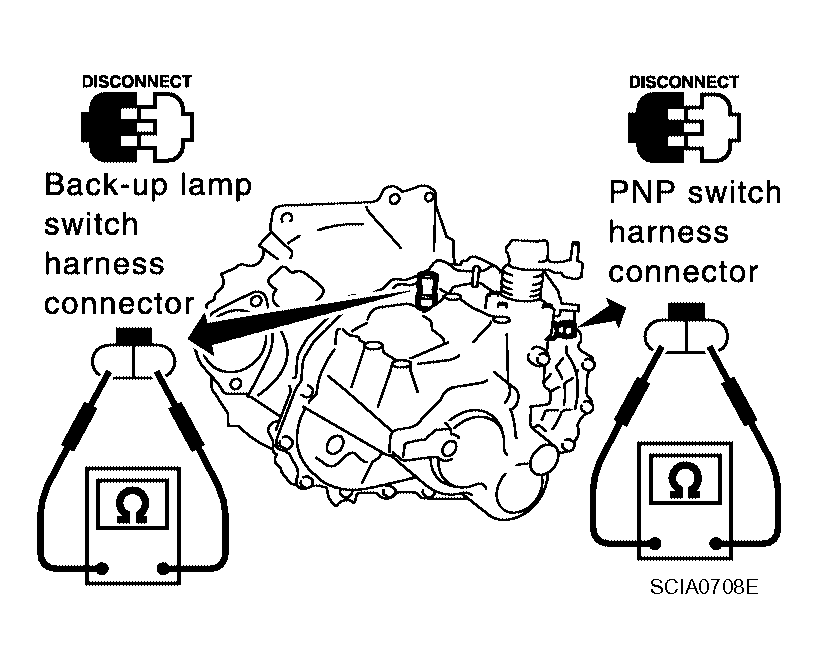

Fig 1: Identifying Back-Up Lamp Switch And PNP Switch Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
