ASCD Brake Switch
- Turn ignition switch OFF.
- Disconnect ASCD brake switch harness connector.

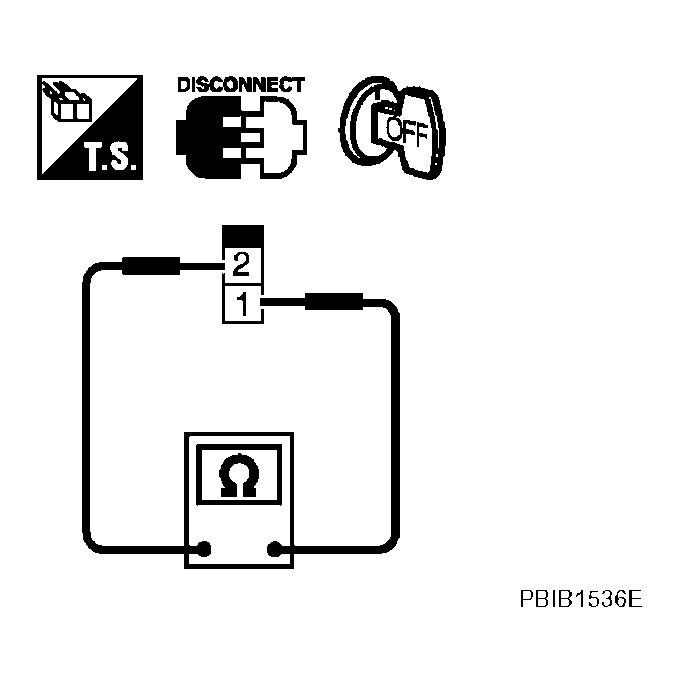

- Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
CONTINUITY REFERENCE
| Condition | Continuity |
|---|---|
| Brake pedal: Fully released | Should exist. |
| Brake pedal: Slightly depressed | Should not exist. |
If NG, adjust ASCD brake switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.
