Diagnostic Procedure

  1. INSPECTION START

    Turn ignition switch to START.

    Is any cylinder ignited?

    Yes or No

    Yes: GO TO  2.

    No: GO TO  3.

  2. CHECK OVERALL FUNCTION

    With CONSULT-II

    1. Start engine.
    2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
    3. Make sure that each circuit produces a momentary engine speed drop.
      Fig 1: Consult-II ACTIVE TEST Display Screen
      G04080452Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine.
    2. Listen to each fuel injector operating sound.

      Clicking noise should be heard  .

      Fig 2: Checking Fuel Injector For Audible Clicking
      G04132840Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: INSPECTION END

    NG: GO TO  3.

  3. CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect fuel injector harness connector.

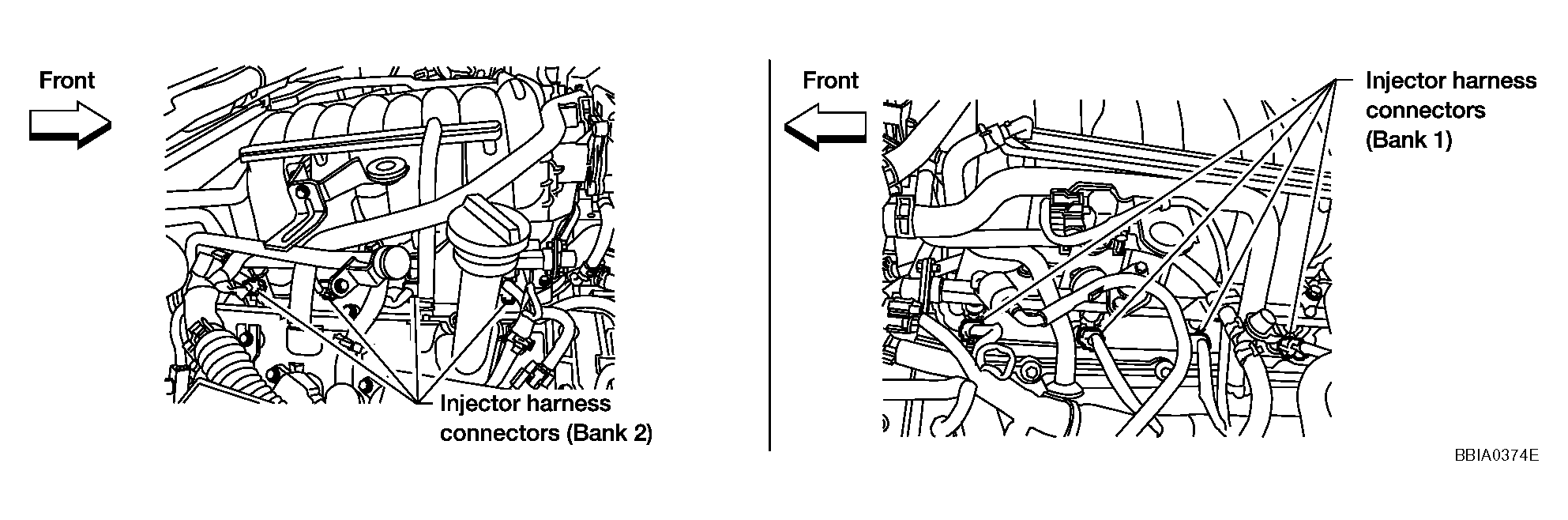

      Fig 3: Disconnecting Fuel Injector Harness Connector
      G04210184Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch ON.
    4. Check voltage between fuel injector terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK: GO TO  5.

    NG: GO TO  4.

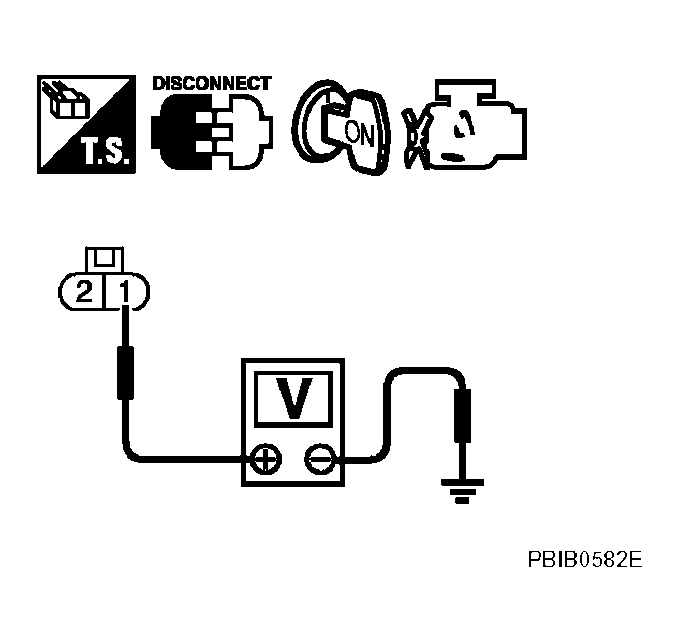

    Fig 4: Checking Voltage Between Fuel Injector Terminal 1 And Ground
    G04210185Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E2, F32
    • IPDM E/R connector E119
    • 15A fuse
    • Harness for open or short between fuel injector and fuse

    : Repair harness or connectors.

  5. CHECK FUEL INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between fuel injector terminal 2 and ECM terminals 21, 22, 23, 40, 41, 42, 44, 63.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  6.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK INJECTOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  7.

    NG: Replace fuel injector.

  7. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    : INSPECTION END
