Transfer Fluid: Replacement: Filling

Remove the filler plug and gasket.
Fill with new specified fluid until the fluid level reaches the specified limit near the filler plug hole as shown.
Fluid capacity and grade : Refer to " FLUIDS AND LUBRICANTS " .

CAUTION: Carefully fill the transfer with fluid. Filling should take approximately three minutes.
Leave the vehicle for three minutes and then check the fluid level again as shown.
Install the new gasket on the filler plug and install the filler plug in the transfer. Tighten the filler plug to specification.
Filler plug : Refer to " COMPONENTS " .

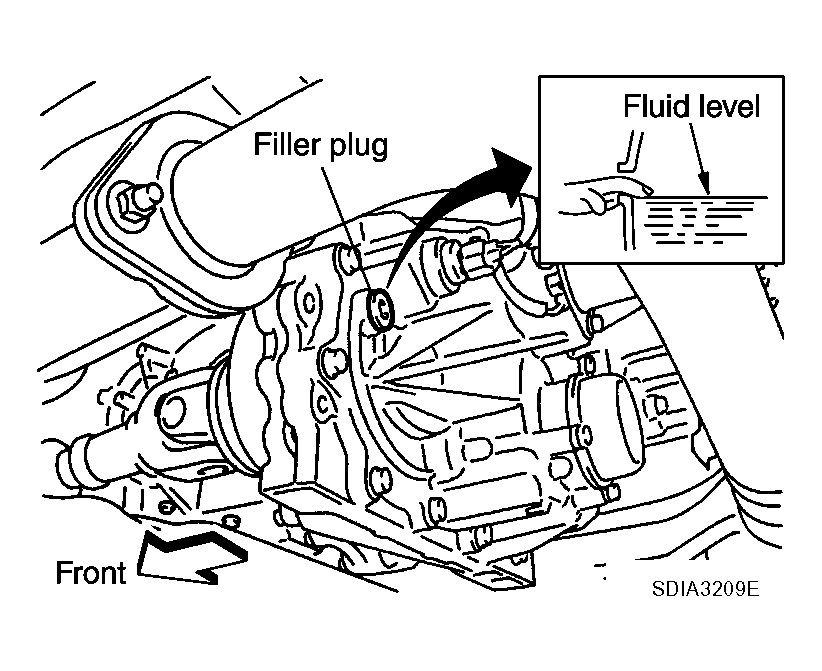

Fig 1: Identifying Filler Plug & Checking Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse the gasket.
