Component Inspection

Push and release wait detection switch and check continuity between wait detection switch terminals 10 and 11.

TERMINAL CONTINUITY REFERENCE

Terminal	Condition	Continuity
10 - 11	Push wait detection switch	Yes
10 - 11	Release wait detection switch	No

If NG, replace the wait detection switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

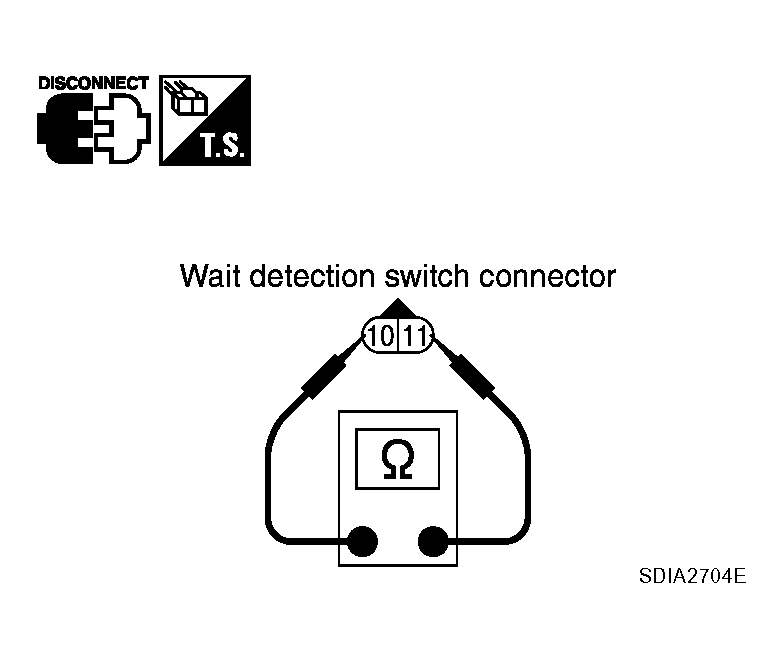

Fig 1: Checking Continuity Between Wait Detection Switch Terminals 10 And 11
Courtesy of NISSAN MOTOR CO., U.S.A.
