Method A

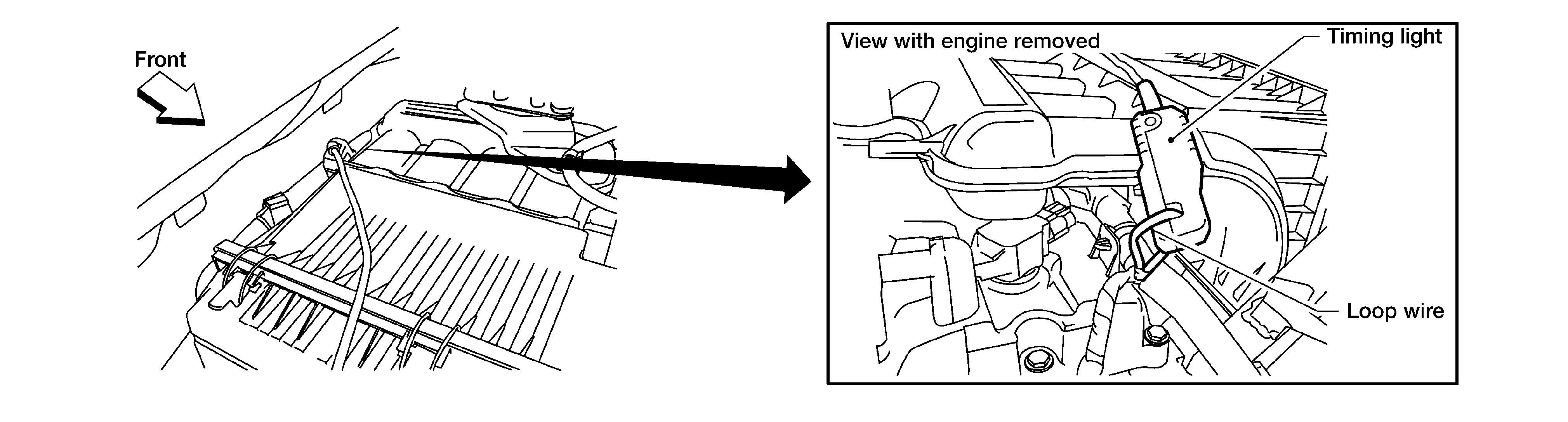

Attach timing light to loop wire as shown.

Fig 1: Identifying Timing Light To Loop Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

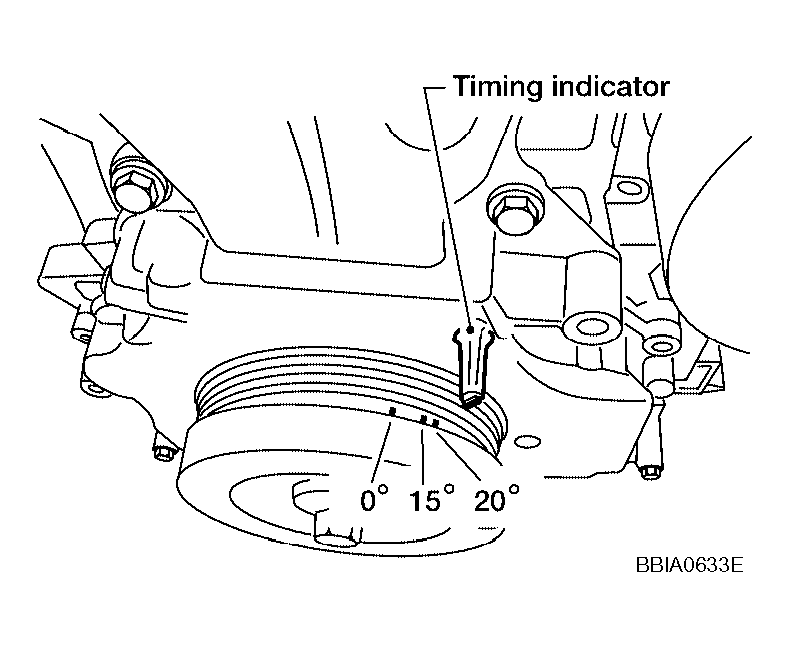

Check ignition timing.

Fig 2: Identifying Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
