No Tools

A SRT code itself can not be displayed while only SRT status can be.

  1. Turn ignition switch ON and wait 20 seconds.
  2. SRT status is indicated as shown in Fig 1.
    • When all SRT codes are set, MIL lights up continuously.
    • When any SRT codes are not set, MIL will flash periodically for 10 seconds.

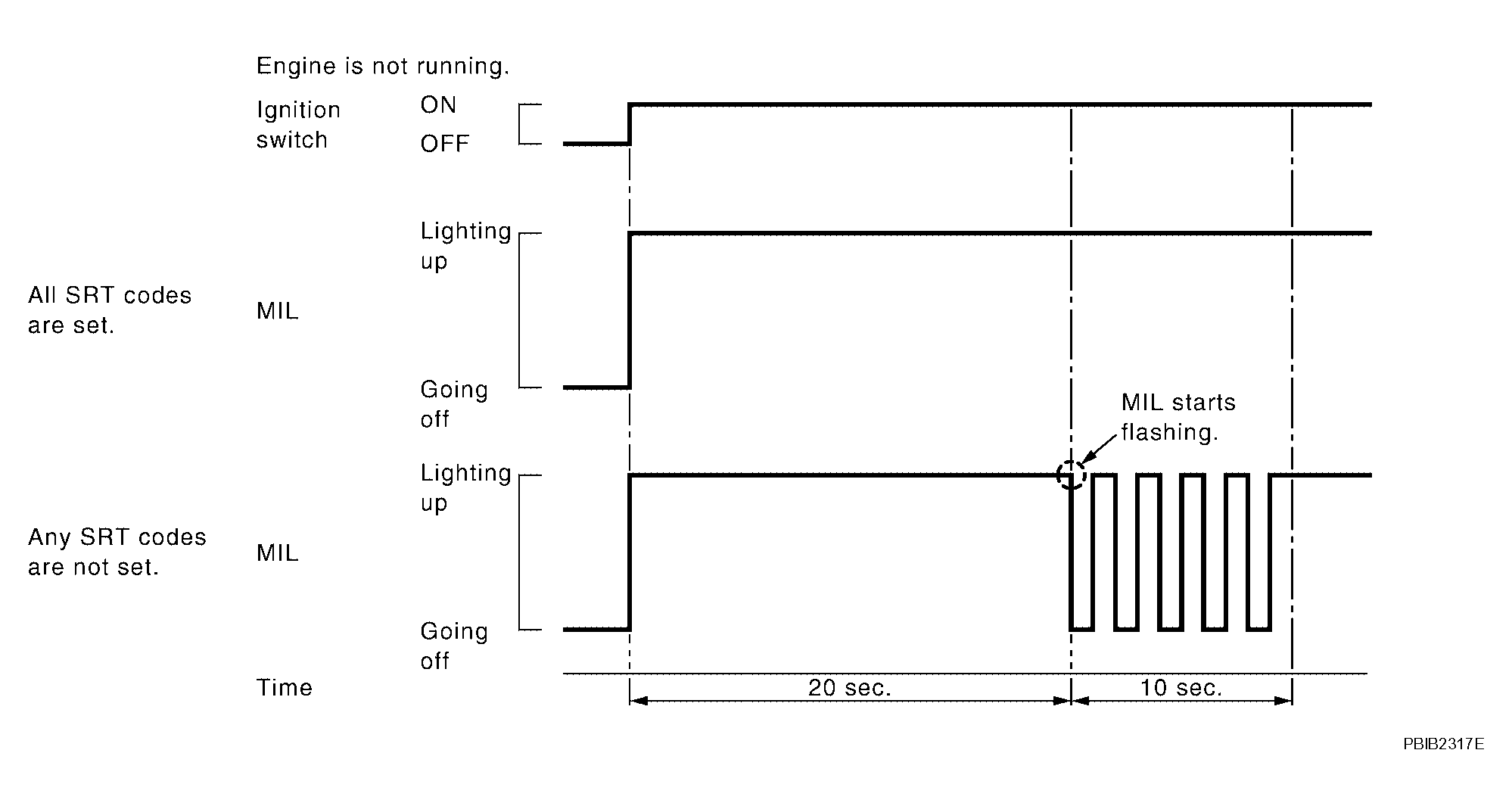

    Fig 1: Identifying SRT Status
    G04160090Courtesy of NISSAN MOTOR CO., U.S.A.
