Diagnostic Procedure: Notes

Do you have CONSULT-II?

Yes or No

Yes: GO TO  2.

No: GO TO  3.

With CONSULT-II

1. Start engine and let it idle.
2. Select "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
3. Make sure that cooling fans-1 and -2 operate at each speed (LOW/MID/HI).

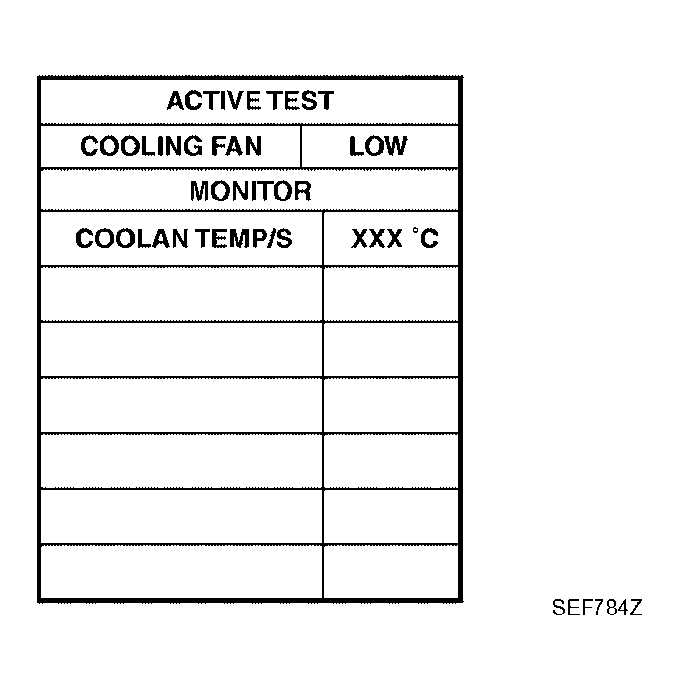

Fig 1: CONSULT-II Display - ACTIVE TEST

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO  4.

NG: Check cooling fan control circuit. (Go to "PROCEDURE A ".)

Without CONSULT-II

1. Perform IPDM E/R auto active test and check cooling fan motors operation, refer to "AUTO ACTIVE TEST ".
2. Make sure that cooling fans-1 and -2 operate at each speed (Low/Middle/High).

OK or NG

OK: GO TO  4.

NG: Check cooling fan control circuit. (Go to "PROCEDURE A ".)

Refer to "CHECKING COOLING SYSTEM FOR LEAKS ".

OK or NG

OK: GO TO  5.

NG: Check the following for leak. Refer to "CHECKING COOLING SYSTEM FOR LEAKS ".

• Hose
• Radiator
• Water pump

Refer to "RADIATOR ".

OK or NG

OK: GO TO  6.

NG: Replace radiator cap.

Refer to "THERMOSTAT AND THERMOSTAT HOUSING ".

OK or NG

OK: GO TO  7.

NG: Replace thermostat

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO  8.

NG: Replace engine coolant temperature sensor.

If the cause cannot be isolated, go to "MAIN 12 CAUSES OF OVERHEATING ".

: INSPECTION END
