ASCD Steering Switch

  1. Disconnect combination switch (spiral cable) harness connector M102.
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

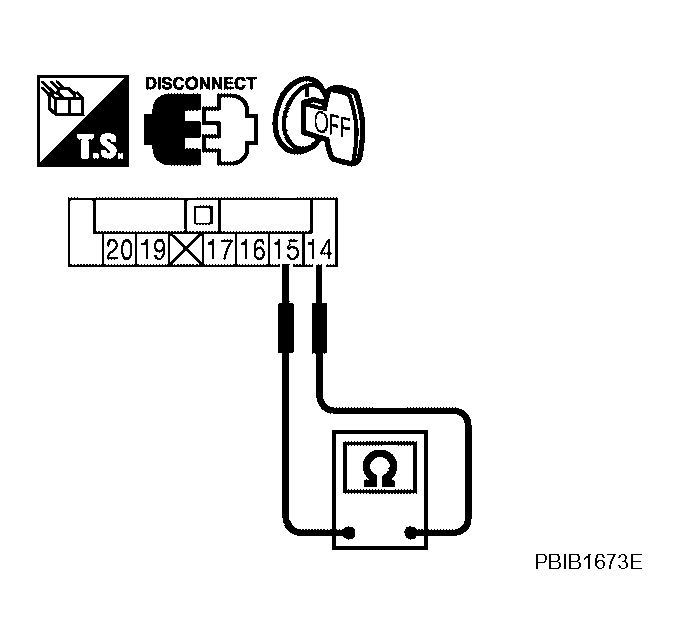

    3. Fig 1: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15
    G04160721Courtesy of NISSAN MOTOR CO., U.S.A.
RESISTANCE REFERENCE

Switch Condition Resistance [Ω]
MAIN switch Pressed Approx. 0
Released Approx. 4, 000
CANCEL switch Pressed Approx. 250
Released Approx. 4, 000
RESUME/ACCELERATE switch Pressed Approx. 1, 480
Released Approx. 4, 000
SET/COAST switch Pressed Approx. 660
Released Approx. 4, 000
