With CONSULT-II

  1. Turn ignition switch ON.
  2. Start engine and warm it up to normal operating temperature.

    If engine cannot be started, go to "DIAGNOSTIC PROCEDURE ".

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Check the voltage of "MAS A/F SE-B1" with "DATA MONITOR".
  5. Increases engine speed to about 4, 000 rpm.
  6. Monitor the linear voltage rise in response to engine speed increases.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

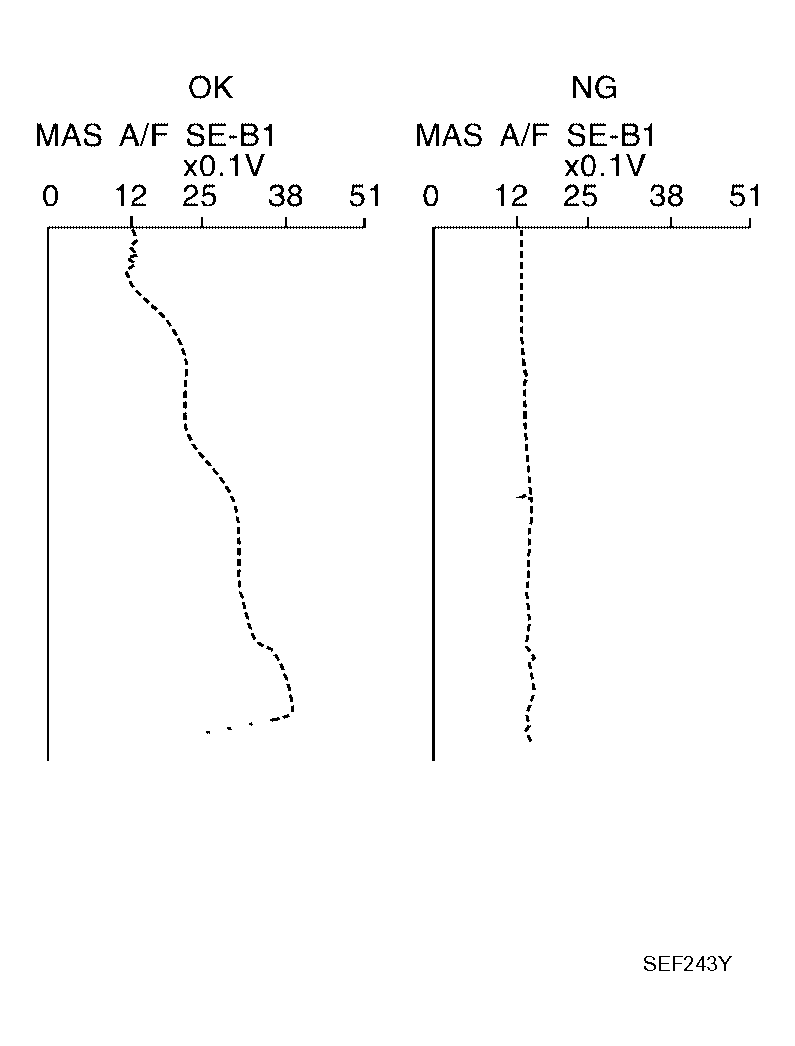

    7. Fig 1: Linear Voltage Graph
    G04160242Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Maintain the following conditions for at least 10 consecutive seconds.

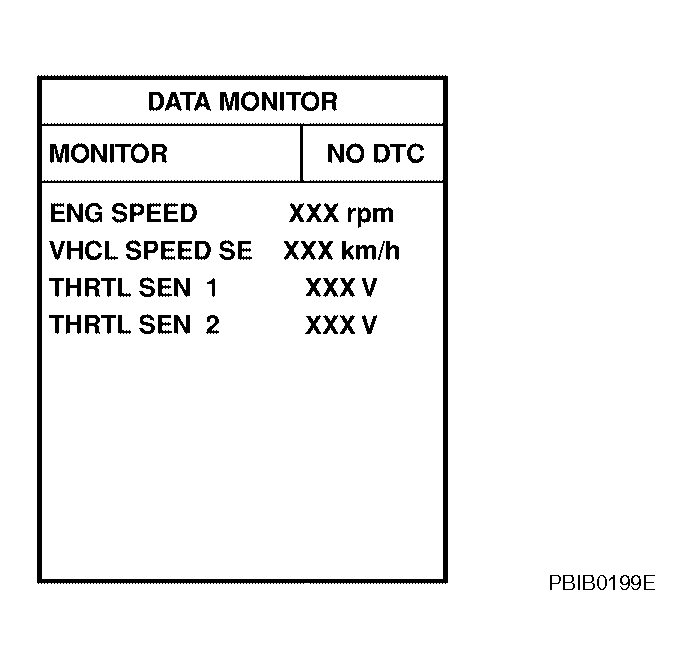

    Fig 2: CONSULT-II Data Monitor Display
    G04160243Courtesy of NISSAN MOTOR CO., U.S.A.
    CONDITION REFERENCE

    ENG SPEED More than 2, 000 rpm
    THRTLSEN 1 More than 3V
    THRTLSEN2 More than 3V
    Shift lever Suitable position
    Driving location Driving vehicle uphill (Increased engine load) will help maintain the driving conditions required for this test.
  8. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
