Key Unlock: Notes

CAUTION: Be careful not to cause burnout of the harness.
TERMINALS

Terminal
2 (Battery voltage) - 1 (Ground)

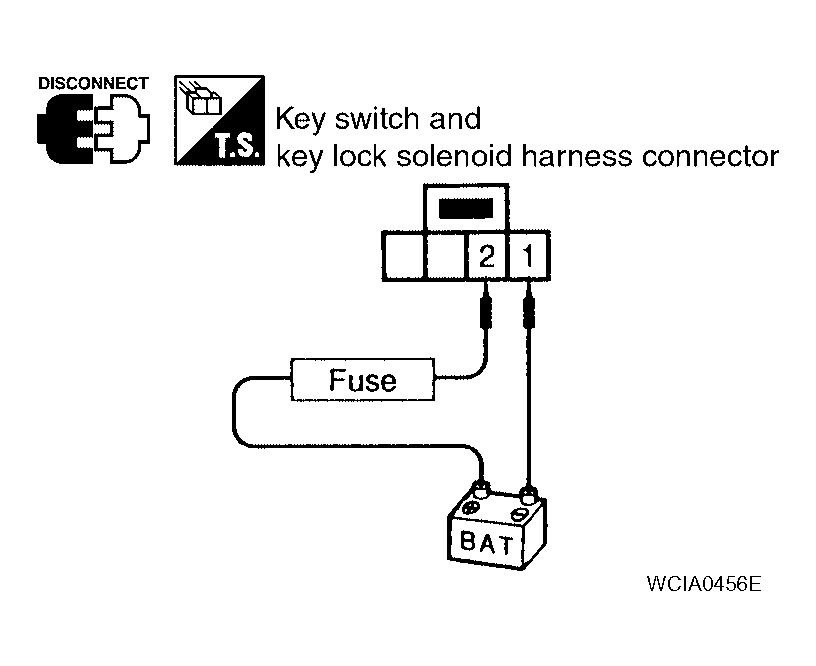

Fig 1: Checking Operation By Applying Battery Voltage To Key Switch And Key Lock Solenoid Connector
G04161492Courtesy of NISSAN MOTOR CO., U.S.A.
