DTC Control Unit (Ram), Control Unit (ROM): Description

The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the A/T.

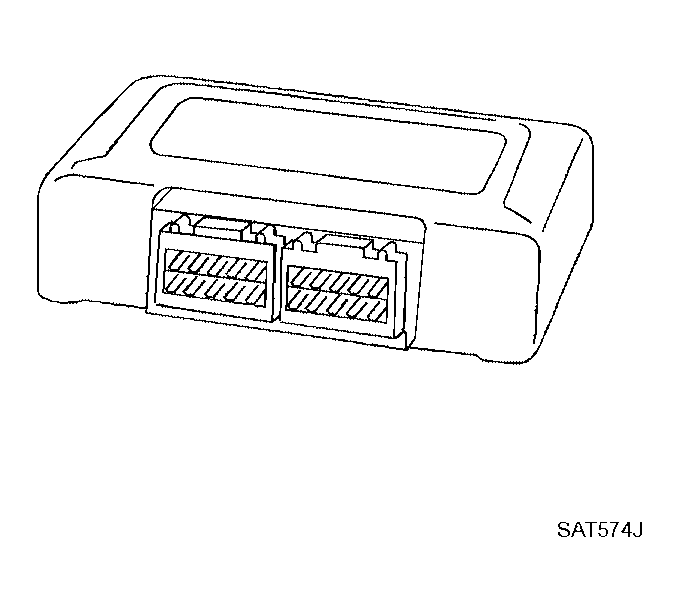

Fig 1: Identifying Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.
