Control Valve Assembly: Components

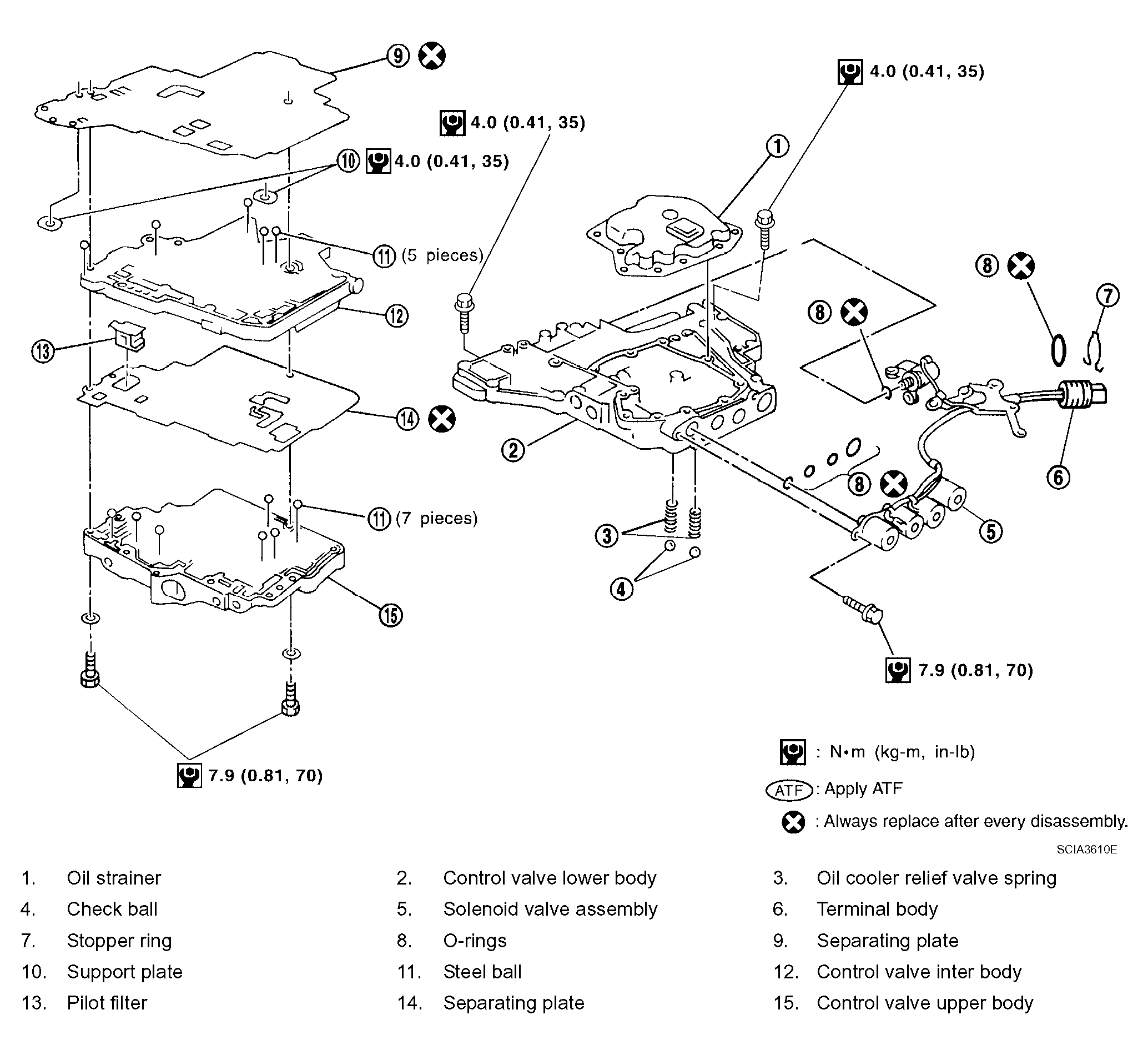

Fig 1: View Of Control Valve Assembly Components With Torque Specifications
G04197771Courtesy of NISSAN MOTOR CO., U.S.A.
