Automatic Transmission - Introduction (Re4F04B)
>>
Re4F04B
>>
Overall System
>>
Control System
>>
Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System

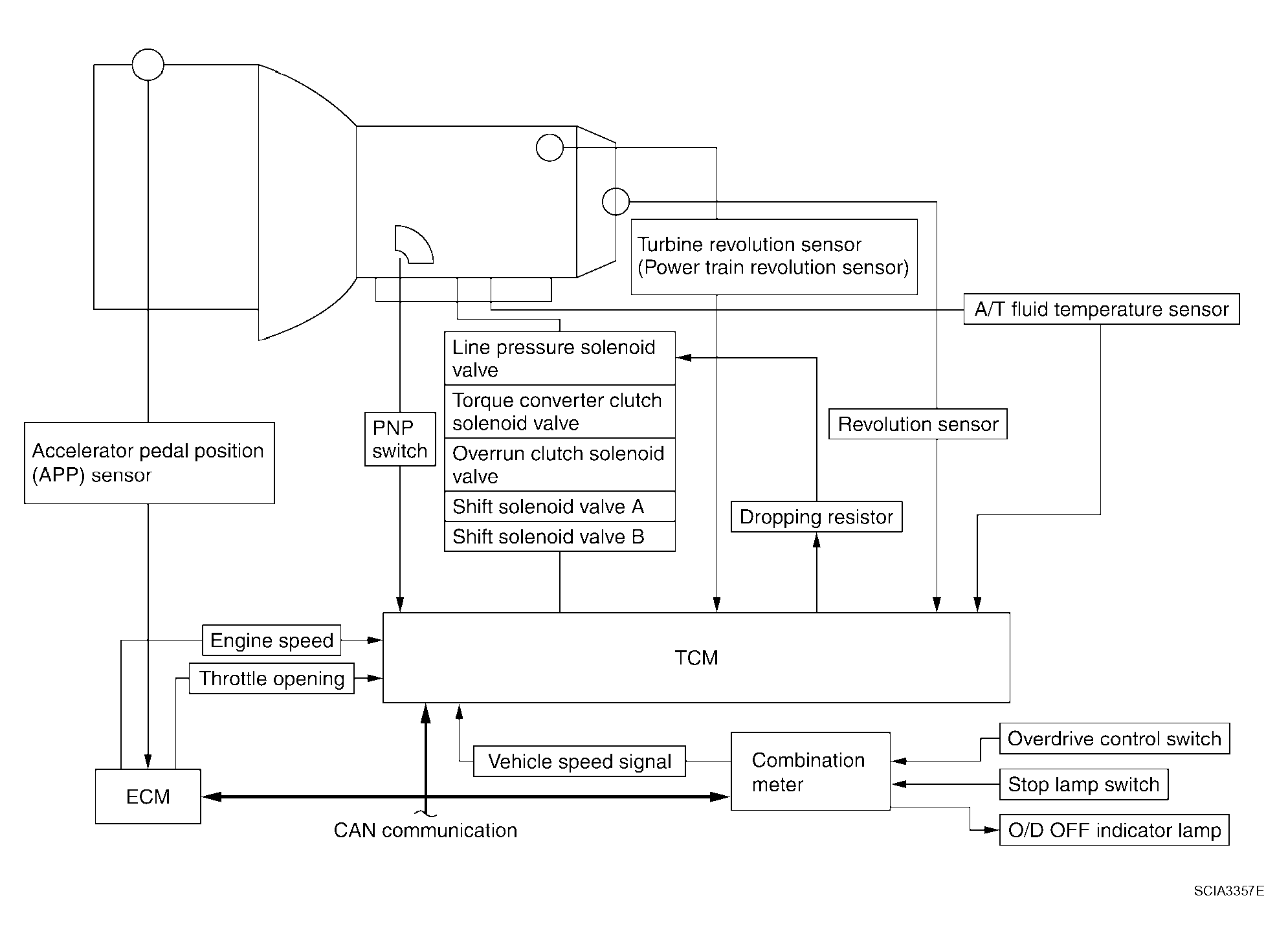

Fig 1: Control System - Blocking Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
