With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Check that voltage between ECM terminal 107 (Fuel tank temperature sensor signal) and ground is less than 4.2V.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Start engine wait at least 10 seconds.
  5. Select "Service $07" with GST.

    If 1st trip DTC is detected, go to , "DIAGNOSTIC PROCEDURE ".

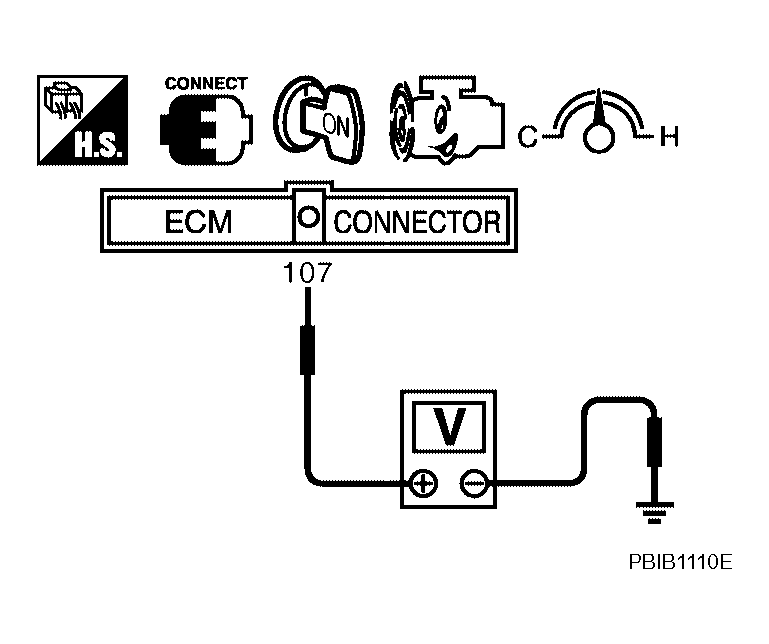

    Fig 1: Checking Voltage Between ECM Terminal 107 (Fuel Tank Temperature Sensor Signal) And Ground
    G04196918Courtesy of NISSAN MOTOR CO., U.S.A.
