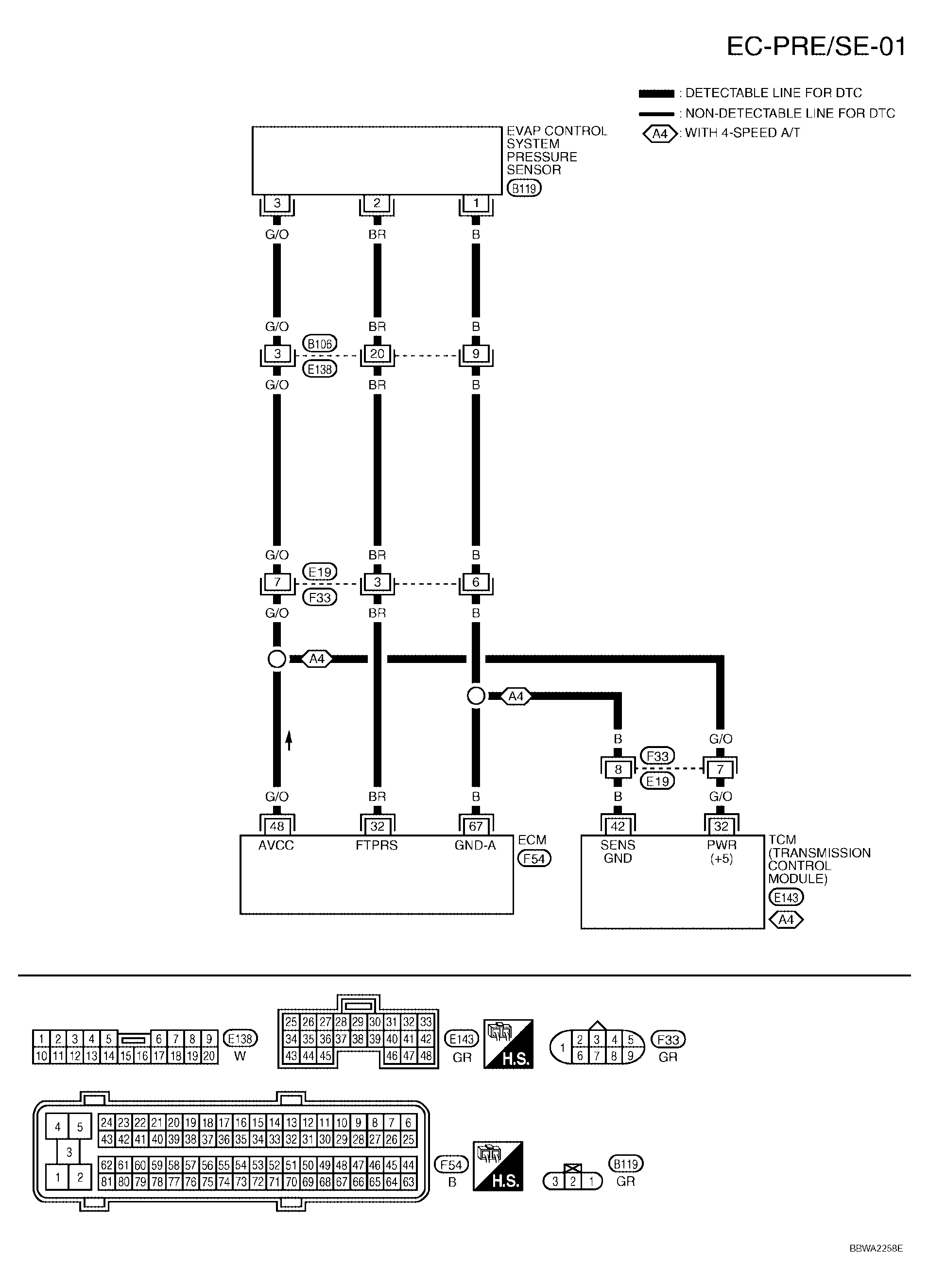

DTC P0453 EVAP Control System Pressure Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ECM SPECIFICATION DATA AND REFERENCE VALUES
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 32 | BR | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8V |
| 48 | G/O | EVAP control system pressure sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 67 | B | Sensor ground | [Engine is running]
|
Approximately 0V |
