With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.
    PNP SWITCH VOLTAGE

    Condition (Gear position) Voltage V (Known good data)
    P or N position Approx. 0
    Except the above position BATTERY VOLTAGE (11 - 14V)
  3. If NG, go to , "DIAGNOSTIC PROCEDURE ".

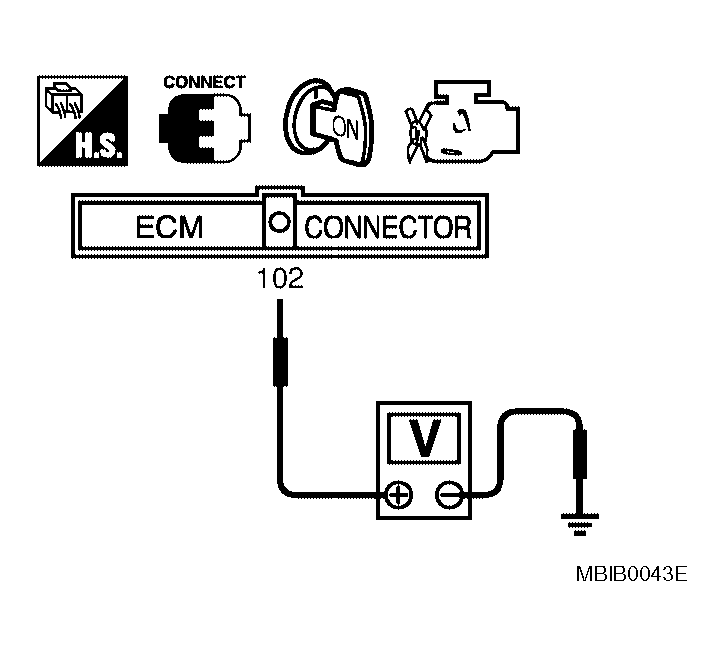

    Fig 1: Identifying Voltage Between ECM Terminal 102 (PNP Switch Signal) And Ground
    G04196980Courtesy of NISSAN MOTOR CO., U.S.A.
