With Consult-II

  1. Check the coolant level in the reservoir tank and radiator.

    Allow engine to cool before checking coolant level.

    If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to , "DIAGNOSTIC PROCEDURE ".

  2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to , "DIAGNOSTIC PROCEDURE ".
  3. Turn ignition switch ON.
    Fig 1: Checking Coolant Level
    G04074236Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Perform "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
  5. If the results are NG, go to , "DIAGNOSTIC PROCEDURE ".

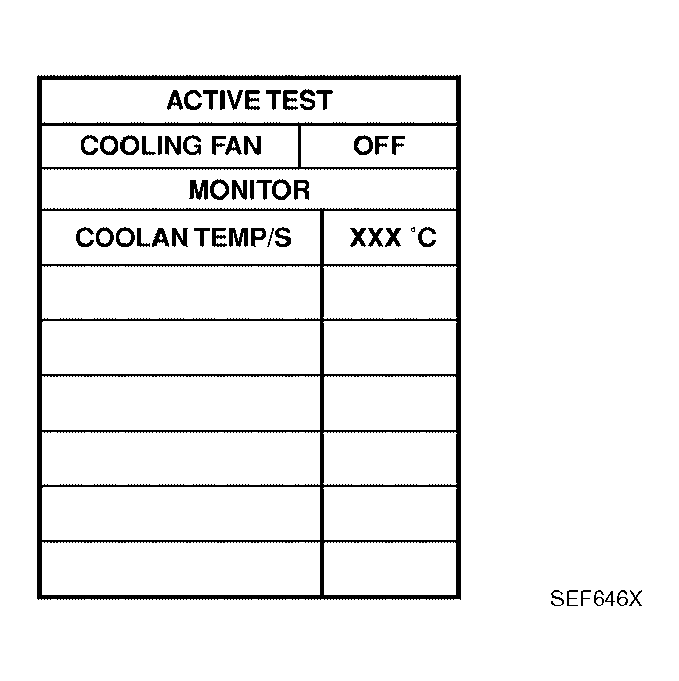

    Fig 2: CONSULT-II Display - Active Test
    G04196992Courtesy of NISSAN MOTOR CO., U.S.A.
