Operation (For CANADA)

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

The headlamps' high beams automatically turn on after starting the engine with the lighting switch in the "OFF" or parking lamp (1st) position. All other lighting switch functions operate the same as conventional light systems.

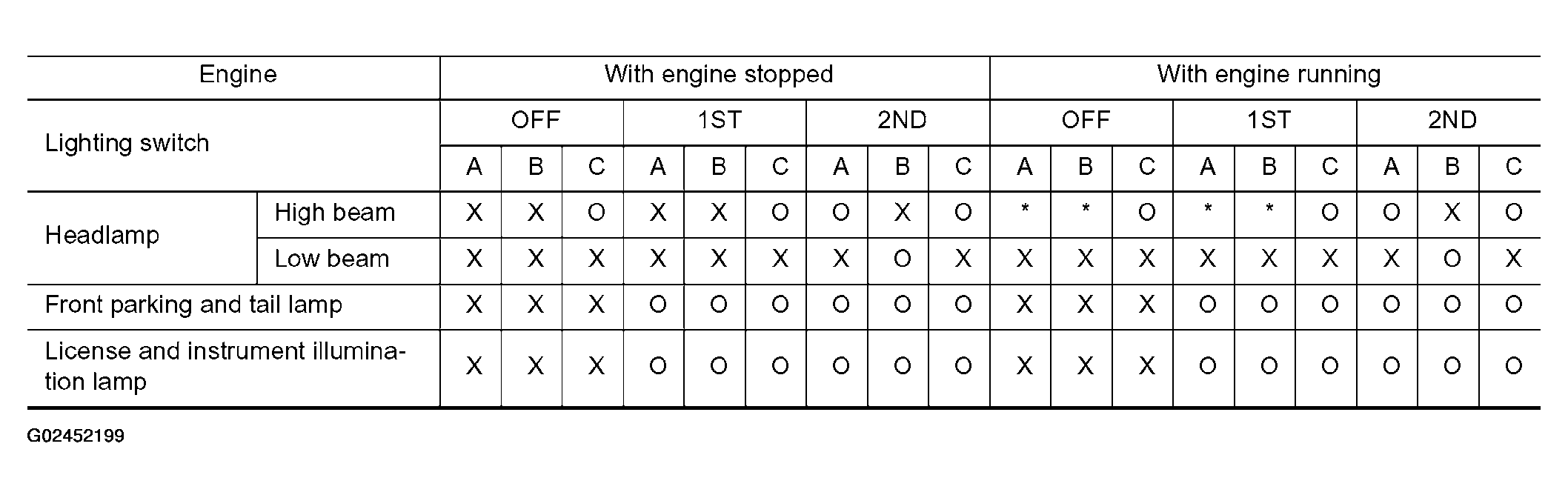

Fig 1: Lighting Switch Engine Operation Chart
G02452199Courtesy of NISSAN MOTOR CO., U.S.A.
