Vacuum Hose Drawing

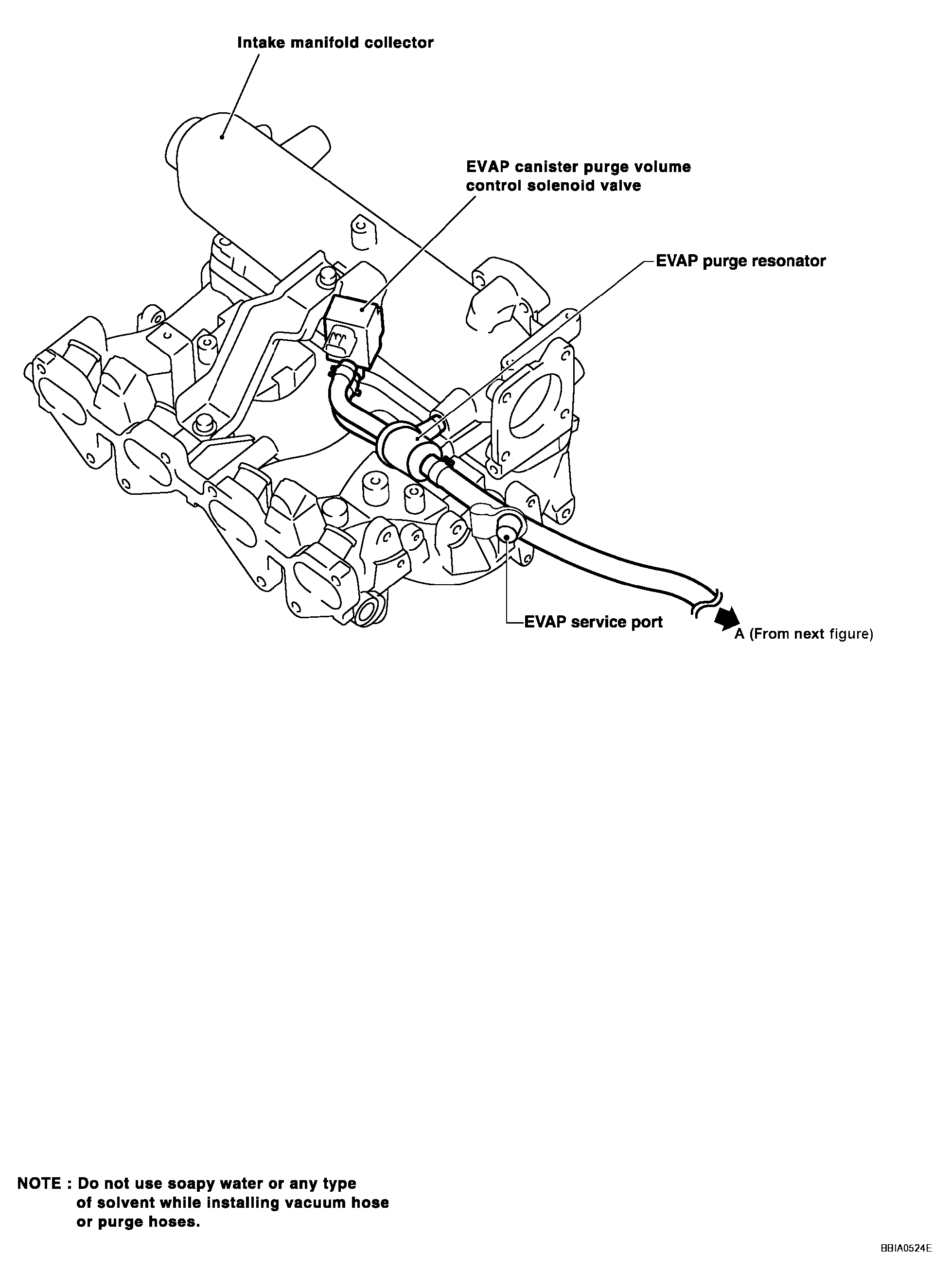

Fig 1: Identifying Vacuum Hose Drawing
G04190843Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to " SYSTEM DIAGRAM  " for Vacuum Control System  .
