With CONSULT-II
WARNING: This page is about a different variant/trim than selected.
Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.
For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set, "INCMP" is displayed.

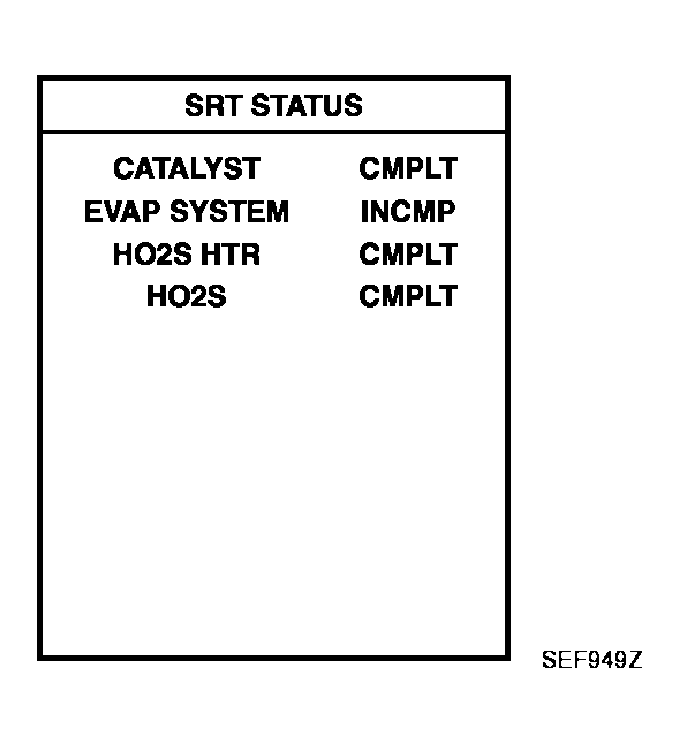

A sample of CONSULT-II display for SRT code is shown at right.
"INCMP" means the self-diagnosis is incomplete and SRT is not set.
"CMPLT" means the self-diagnosis is complete and SRT is set.
NOTE:
Though displayed on the CONSULT-II screen, "HO2S HTR" is not SRT item.
