Combination Switch: Replacement

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation of spiral cable, refer to REMOVAL AND INSTALLATION .

Each switch can be replaced without removing switch base.

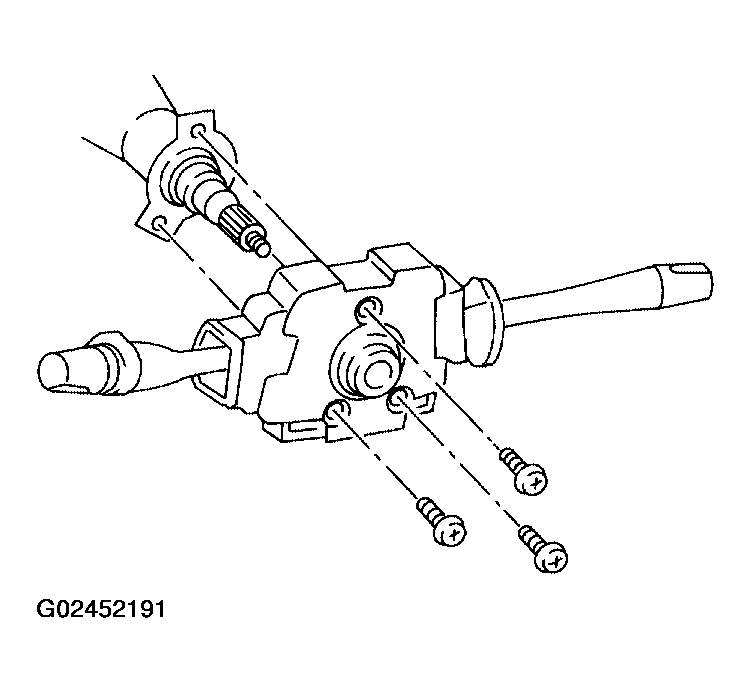

Fig 1: Removing Switch Base
Courtesy of NISSAN MOTOR CO., U.S.A.
To remove switch base, remove switch base attaching screws.

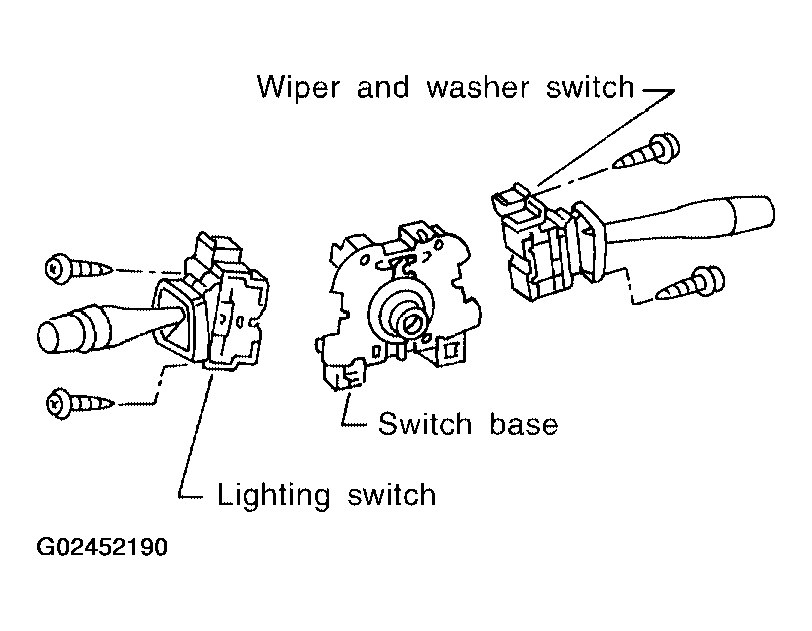

Fig 2: Removing Switch Base Attaching Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing the steering wheel, align the steering wheel guide pins with the screws which secure the combination switch as shown in the figure.

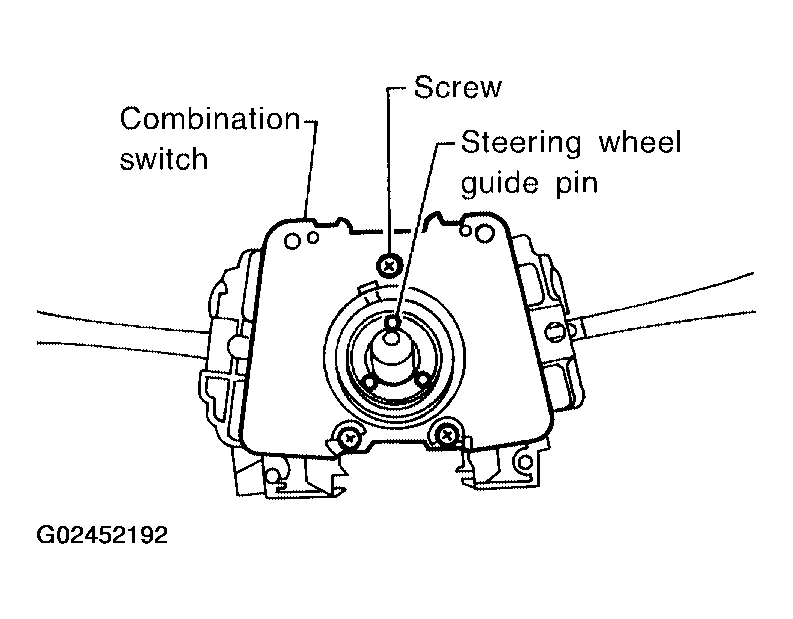

Fig 3: Aligning Steering Wheel Guide Pins
Courtesy of NISSAN MOTOR CO., U.S.A.
