Operating Cylinder: Components

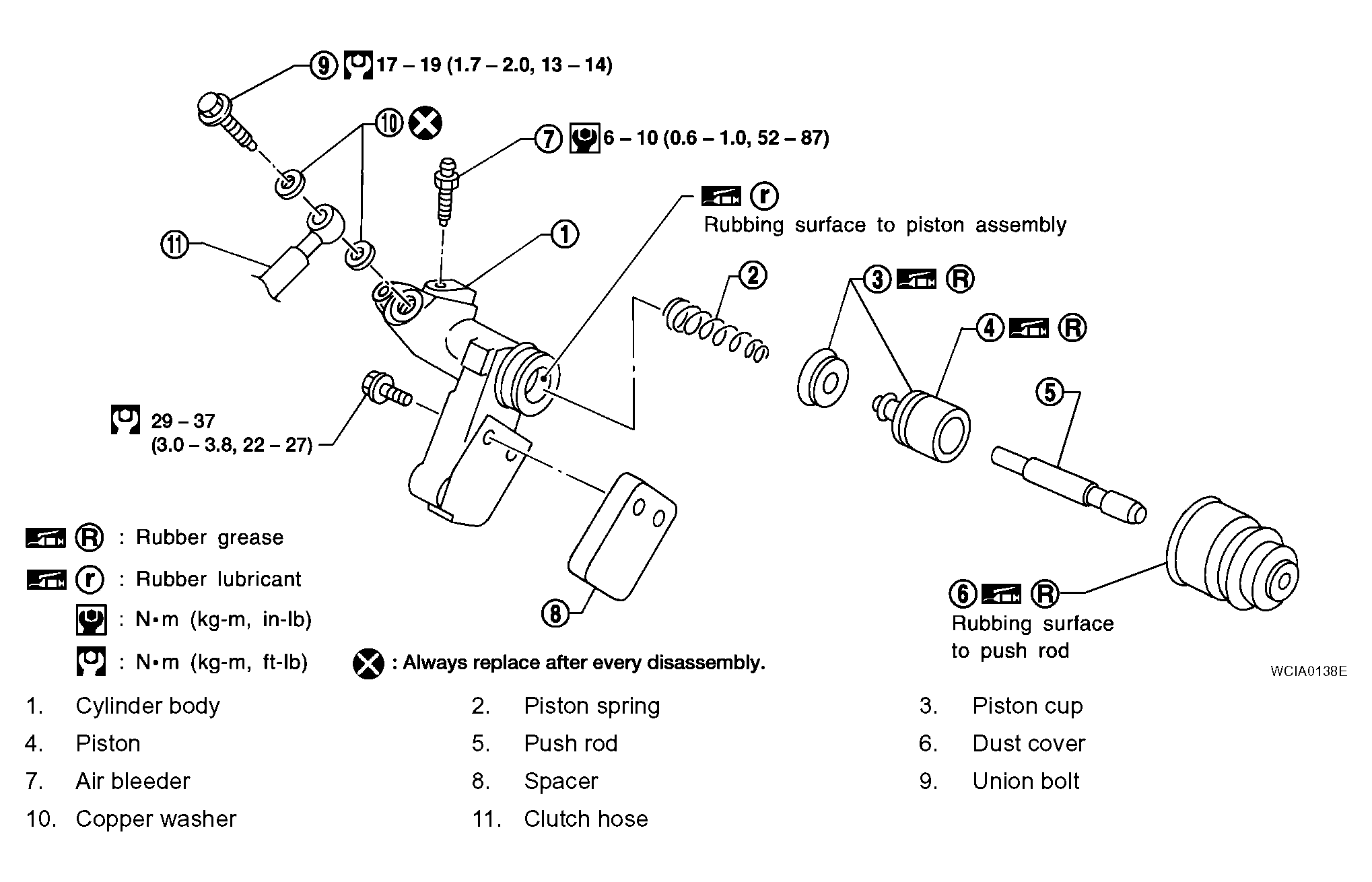

Fig 1: Identifying Operating Cylinder Components With Torque Specifications
G04192362Courtesy of NISSAN MOTOR CO., U.S.A.
