Fuel Pump

WARNING: This page is about a different variant/trim than selected.

Disconnect "fuel level sensor unit and fuel pump" harness connector.
Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.
Resistance: 0.2 - 5.0Ω [at 25°C (77°F)]

If NG, replace "fuel level sensor unit and fuel pump".

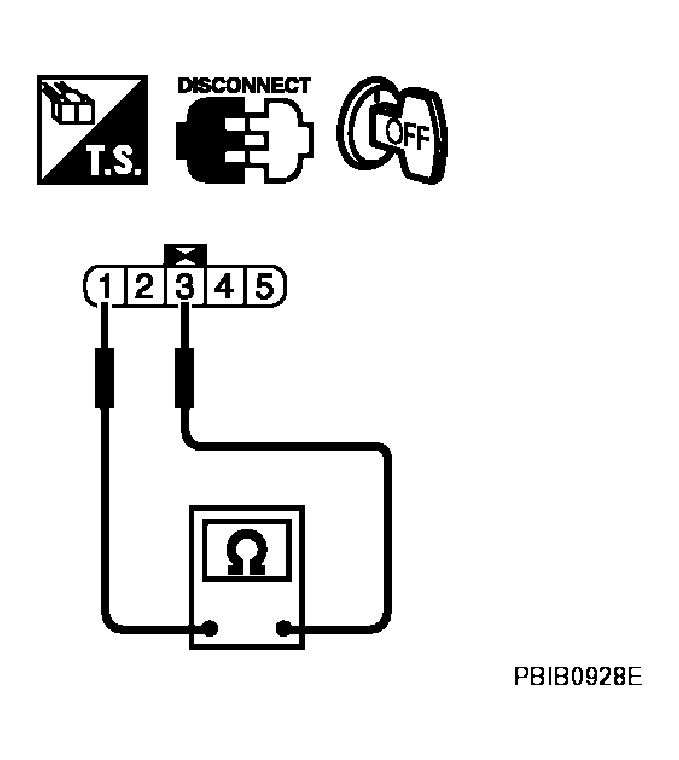

Fig 1: Checking Resistance Between Fuel Level Sensor Unit And Fuel Pump Terminals 1 And 3
Courtesy of NISSAN MOTOR CO., U.S.A.
