< Driving Pattern A>
WARNING: This page is about a different variant/trim than selected.

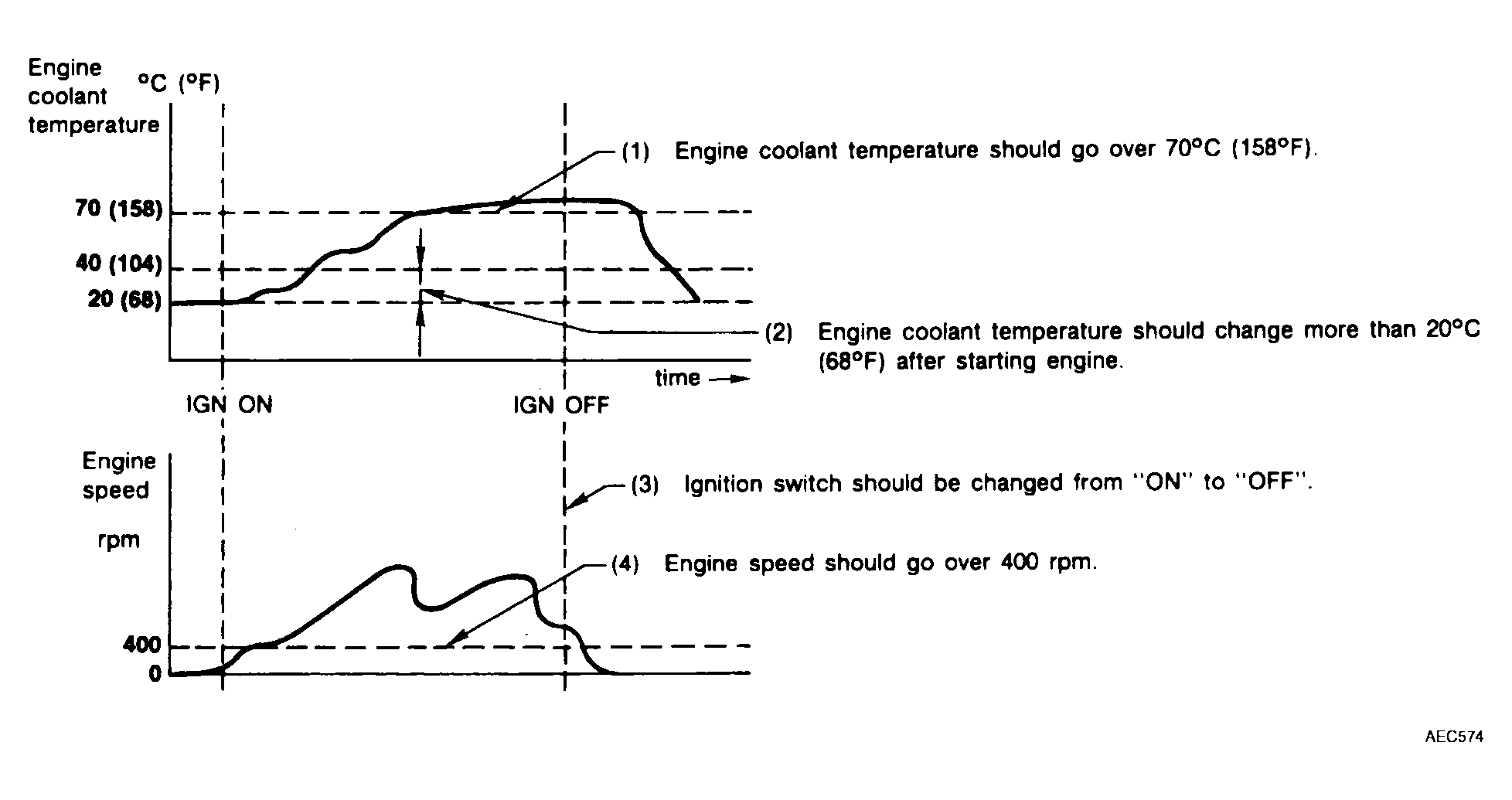

Fig 1: Malfunction Graph - Patterns Except Misfire (Exhaust Quality Deterioration) Fuel Injection System
- The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
- The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
- The DTC will not be displayed after the A counter reaches 40.
