Sun Roof/T-Top/Convertible Top: Sunroof: Removal: Notes

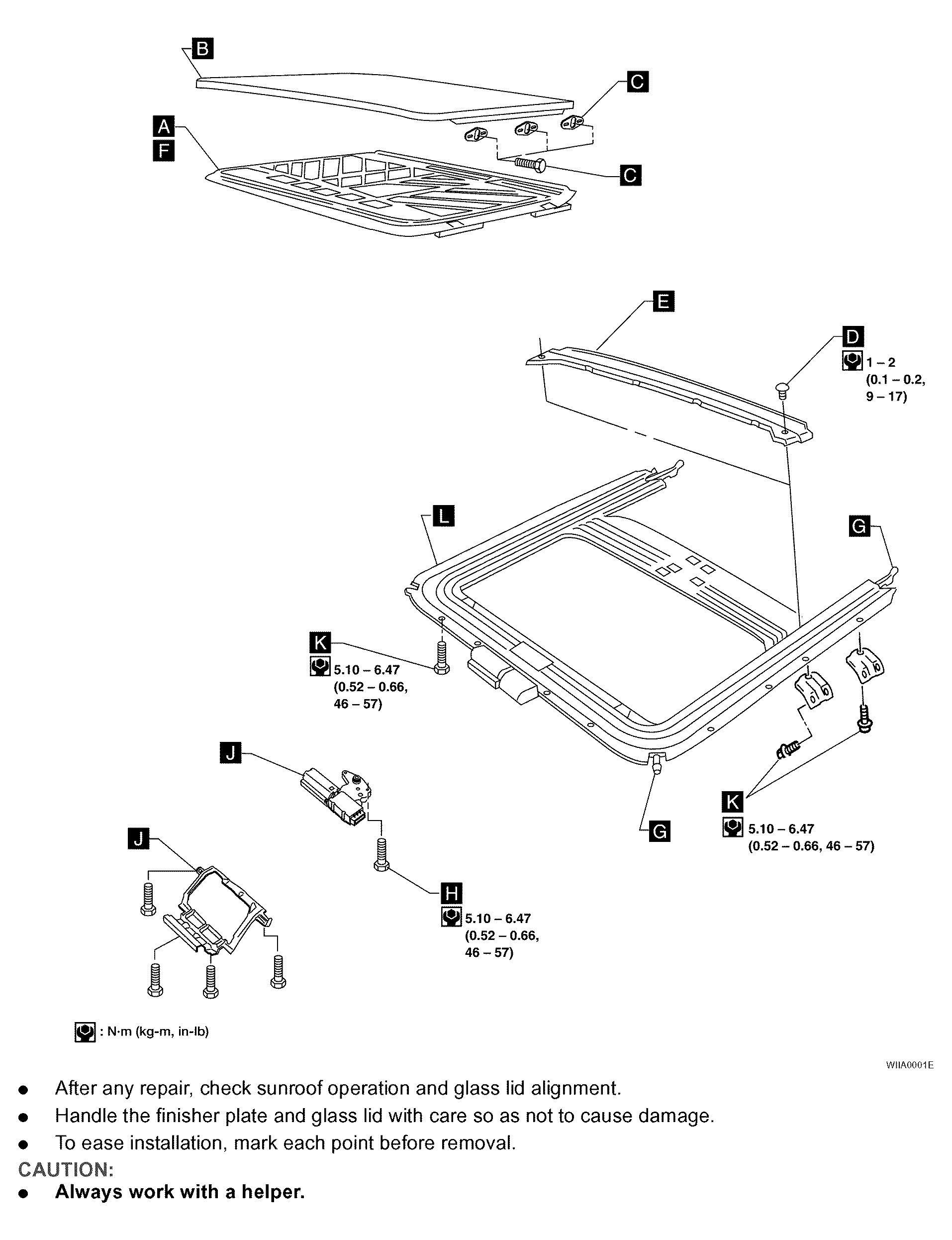

Fig 1: Exploded View Of Sunroof Assembly Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

• After any repair, check sunroof operation and glass lid alignment.
• Handle the finisher plate and glass lid with care so as not to cause damage.
• To ease installation, mark each point before removal.

CAUTION:

• Always work with a helper.
• Before removal, fully close the glass lid assembly, then after removal, do not move the motor assembly.
