With CONSULT-II

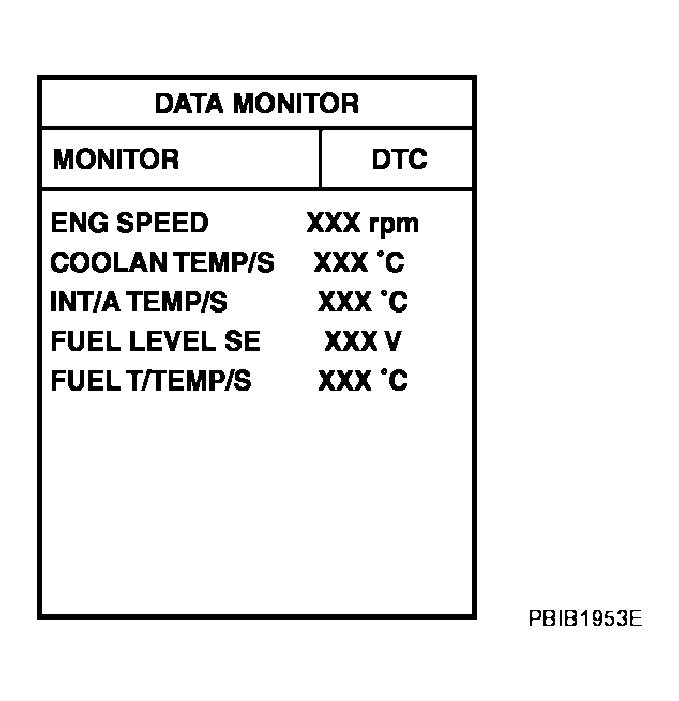

Fig 1: CONSULT-II Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Make sure the following conditions are met.
FUEL LEVEL SE: 0.25-1.4V

COOLAN TEMP/S: 0-32°C (32-90°F)

FUEL T/TMP SE: 0-35°C (32-95°F)

INT A/TEMP SE: More than 0°C (32°F)

If NG, turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle) or refilling/draining fuel until the output voltage condition of the "FUEL LEVEL SE" meets within the range above and leave the vehicle for more than 1 hour. Then start from step 1).
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Select "EVAP V/S LEAK P0456" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.
Follow the instruction displayed.

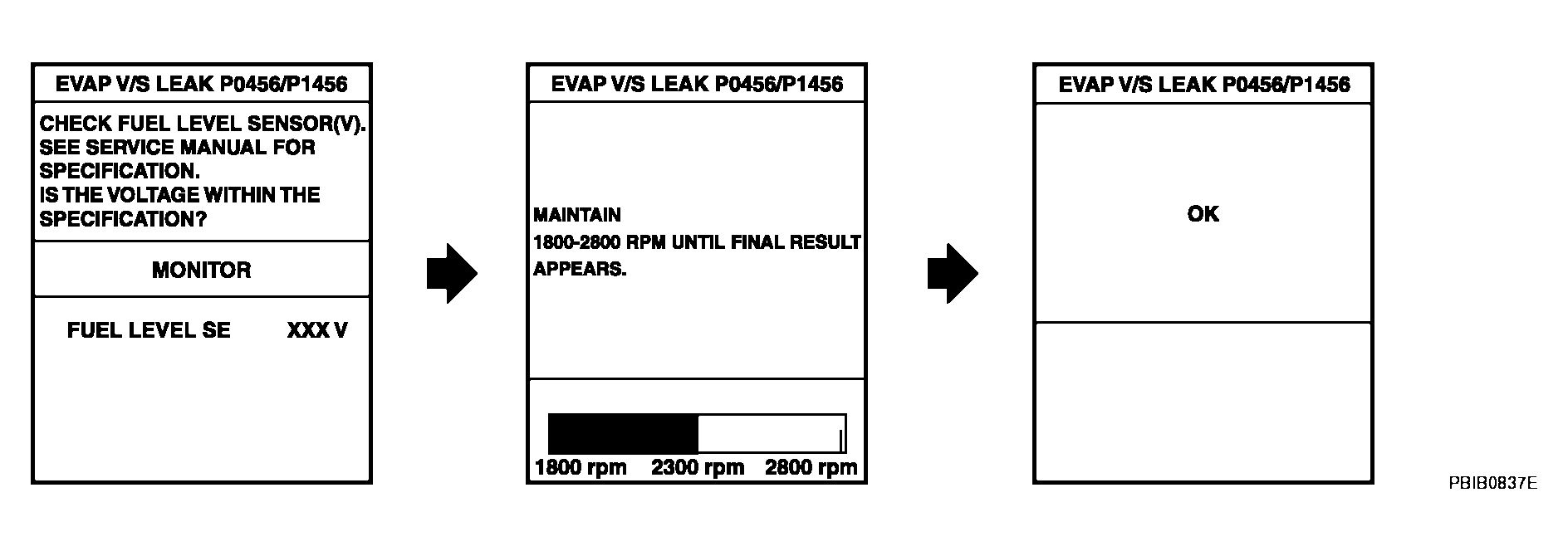

Fig 2: CONSULT-II Display -- EVAP V/S LEAK P0456/P1456
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that "OK" is displayed.
If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".
NOTE:
- If the engine speed cannot be maintained within the range displayed on CONSULT-II screen, go to "BASIC INSPECTION ".
- Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve properly.
