With CONSULT-II

Check the coolant level in the reservoir tank and radiator.
NOTE: Allow engine to cool before checking coolant level.

If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".

Fig 1: Checking Coolant Level

Courtesy of NISSAN MOTOR CO., U.S.A.

Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".
Turn ignition switch ON.
Perform "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.

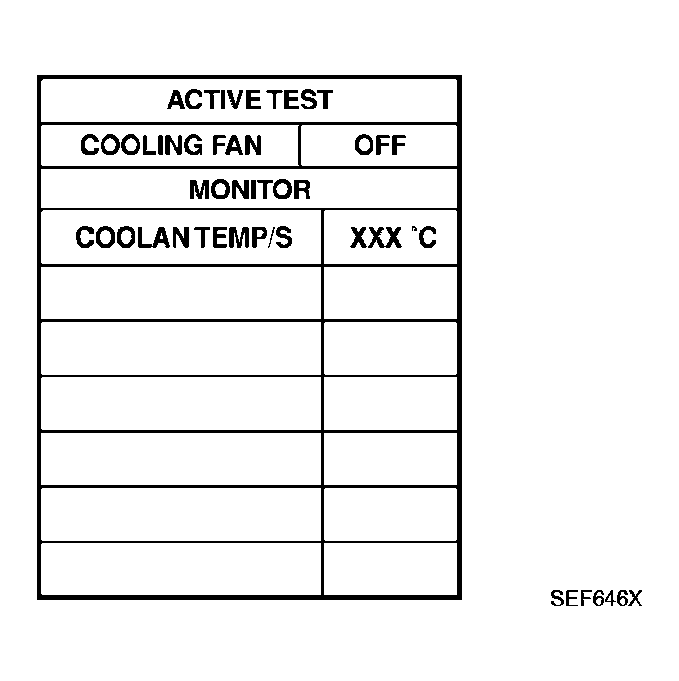

Fig 2: CONSULT II Display - Active Test

Courtesy of NISSAN MOTOR CO., U.S.A.
